Factory Shapeoko 3 Standard Wasteboard

by znbk · April 7, 2026 carbide3d-support · 916 views · 680 downloads

Factory Shapeoko 3 Standard Wasteboard

Files

PDF s3_std_wasteboard.pdf SVG Shapeoko_3_Factory_Wasteboard_Replacement_Reinforced_Bottom.svg DXF Shapeoko_3_Factory_Wasteboard_Replacement.dxf C2D Shapeoko_3_Factory_Wasteboard_Replacement.c2d C2D Shapeoko_3_Factory_Wasteboard_Bottom_Support.c2d

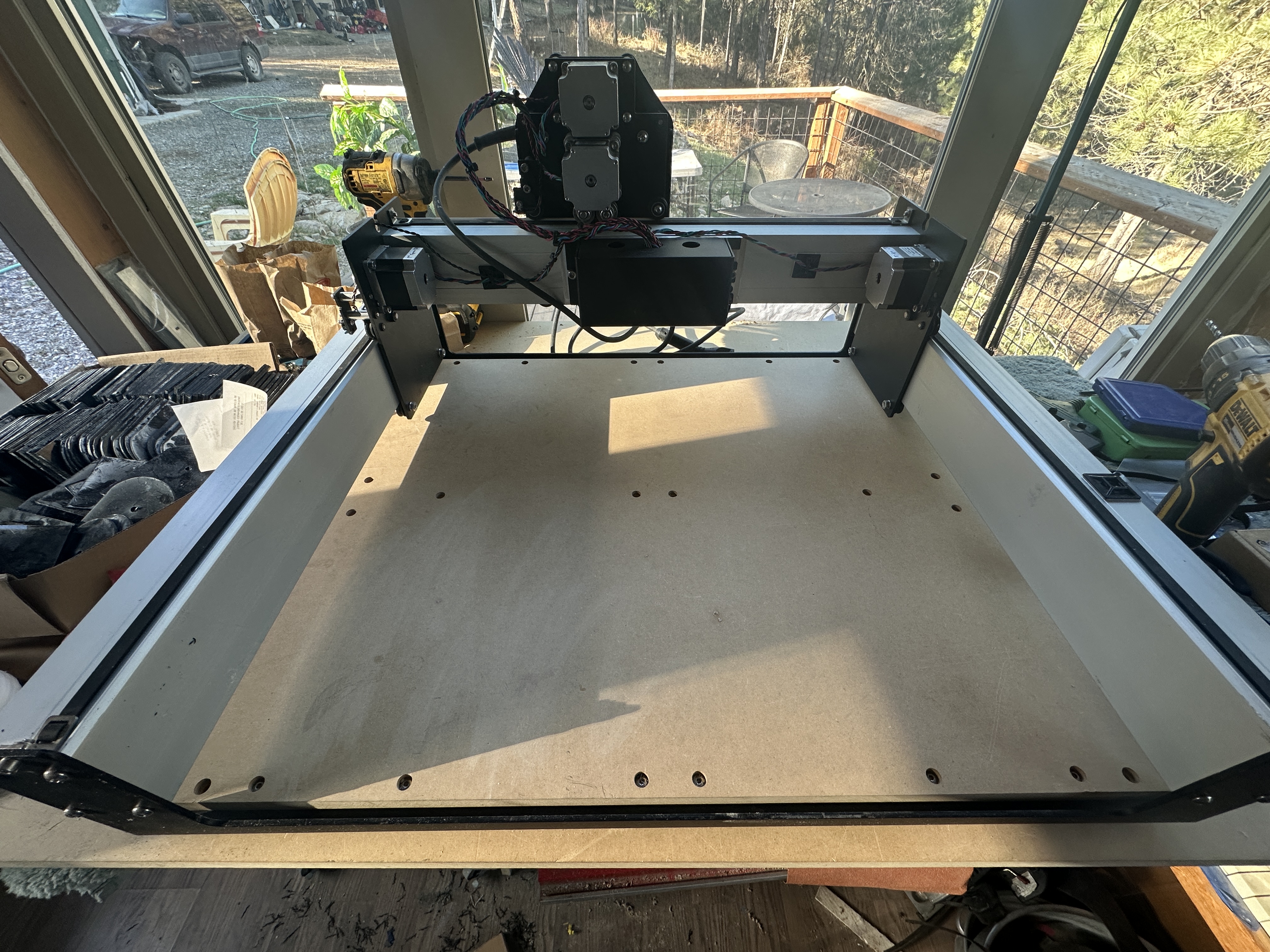

Cut file for factory replacement wasteboard for Shapeoko 3 Standard based on Carbide3D original drawings.

Notes

This is for the STANDARD sized Shapeoko 3.

Includes PDF drawing from Carbide 3D with specs for factory wasteboard replacement, .dxf, .svg and .c2d files for same.

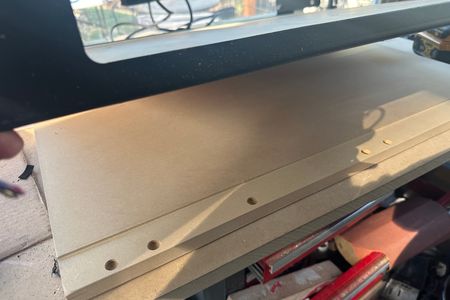

Also includes second file to cut a piece of MDF to sandwich with the original wasteboard to stiffen up the machine.
