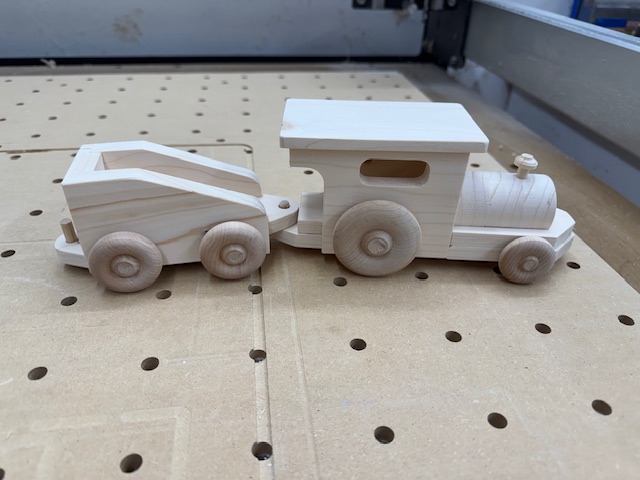

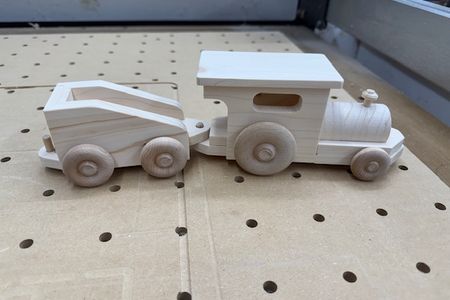

Train - Tender
Toy train Tender. Complete train set consists of an Engine, Tender, Flat Car, Passenger Car and caboose all made from a single 2x4. For the Tender you will need 4ea. 1 1/2" wheels and 1/4" dowel.
Notes
Designed in Carbide Create build 836.

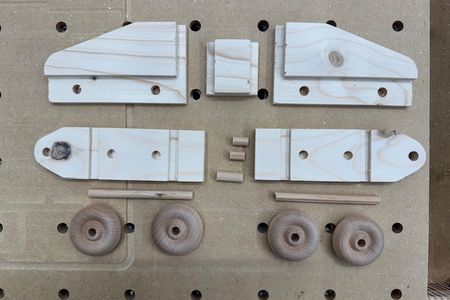

Stock required:
1/2" x 3 1/2" x 12"
3/8" x 3 1/2" x 12"
1/4" Dowel 2ea. 1/2L, 1ea. 3/4"L, 2ea. 3"L
Assembly:

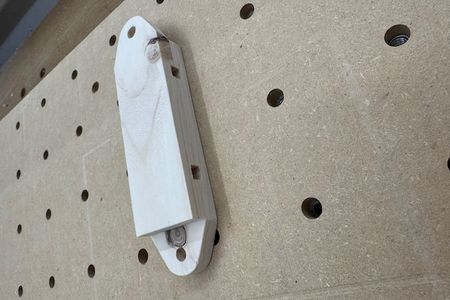

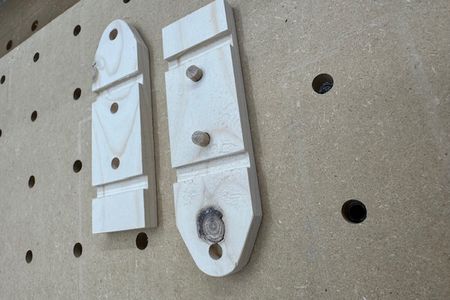

Use 2ea. 1/4" x 1/2"L dowel as alignment aide to glue two chassis half together.

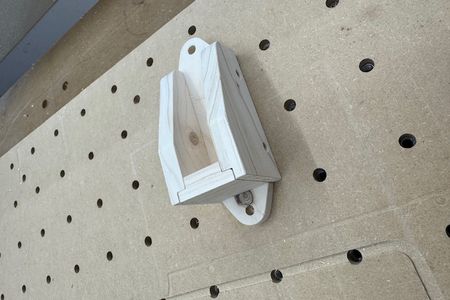

Tender sides and bulkhead are glued to the chassis assembly.

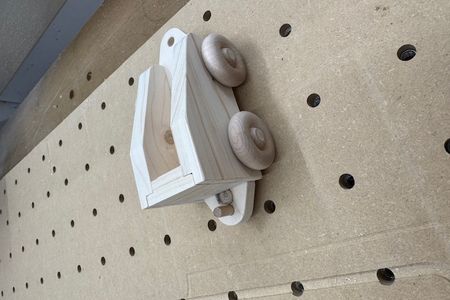

Glue and insert the 3/4" long dowel into the blind hole in the chassis for linking to next car.
