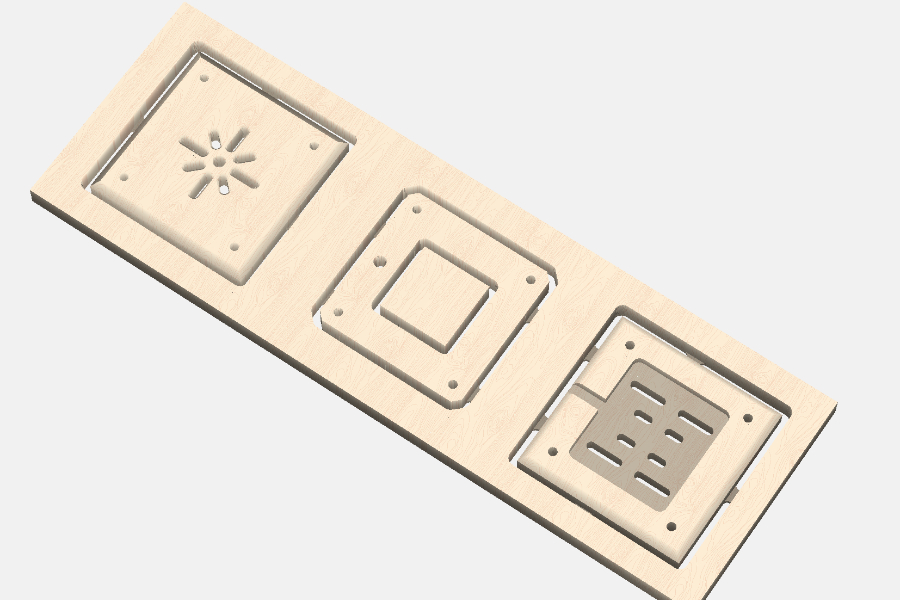

3/4" wood for base and top
1/2" alternating wood and acrylic layers.

Other parts list (bottom to top):

• Mid-Century Style, Light Brown Rayon Lamp Cord Set - UL Listed, Choice of Length (46881)

• Medium Base Lamp Socket With Side Mounted Bracket and 7" Wire Leads (47696)

• 9/16 Inch Diameter Nickel Plated Finish Heavy Brass Countersunk 1/8F Hex Nut (20607N)

• 1/8 IP Solid Brass, All Thread Nipples for Lamps and Fixtures, 1.5” length (1/8IP = 3/8" diameter) (22210)

• 3/4 Inch Tall Brass Satin Black Lamp Coupling, 1/8F Tap (21134BK)

• 1/8 IP Zinc Plated Steel All Thread Nipples (1/8IP = 3/8" diameter) (22346) 1/2" Long, 1/8 IP Steel Nipple (22347)

• Satin Black Finish Female Threaded Steel Pipe, 1/8F, Choice of Length (22216BK)

• 3 Inch Long Satin Black Female Threaded Steel Lamp Pipe, 1/8F (22217BK)

• Satin Black Finish E-26 Aluminum Pull Chain Lamp Socket, No UNO Thread (48320BK)

• 8 Inch Satin Black Finish Harp w/Harp Base (12756BK)

• 4pcs M5 x 250mm Fully Threaded Rod, M5-0.8mm Thread Pitch, 304 Stainless Steel Long Threaded Screw, Right Hand Threads (M5 x 250mm)
  (Note - adjust size of corner holes according to the size of the connecting rod used. I made the holes a bit large for the M5 rod so printed small spacers to compensate making sure the stack was perfectly aligned. )

• M5x14mm Screw Caps for Light Fixture, Female Knurled Knob Nut for Ceiling Light Cover Replacement/Decorative Lamp Parts, Acorn Screw Top [Matt Black]

• 2 Pack Black Lamp Finial Cap Knob Retro Decoration with Dual-Thread Screw for Lamp Shade,Fit Both 3/8" and 1/4-27

-- Misc: M5 washers, lock washers, nuts. Extra lamp cord for power to the top light. A couple of Wago connectors or wire nuts to connect the center accent and top lights, rubber or felt feet for the base.

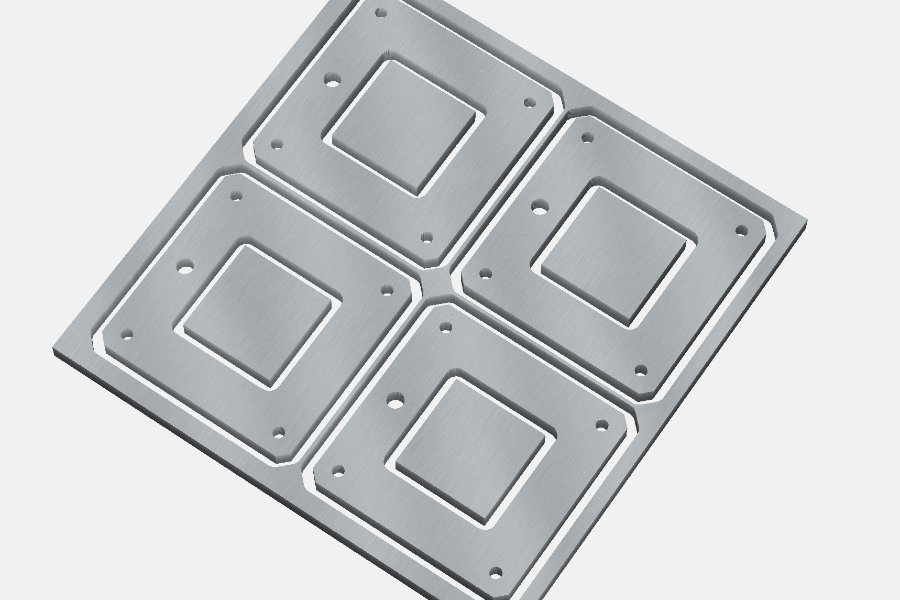

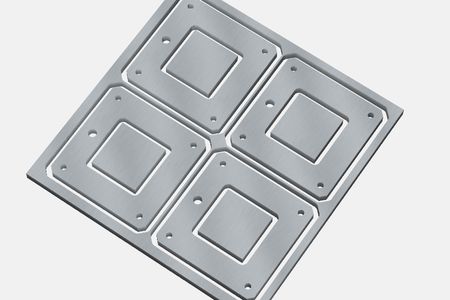

Acrylic layer cutout: 12”x12”x1/2” (4 pieces per sheet)

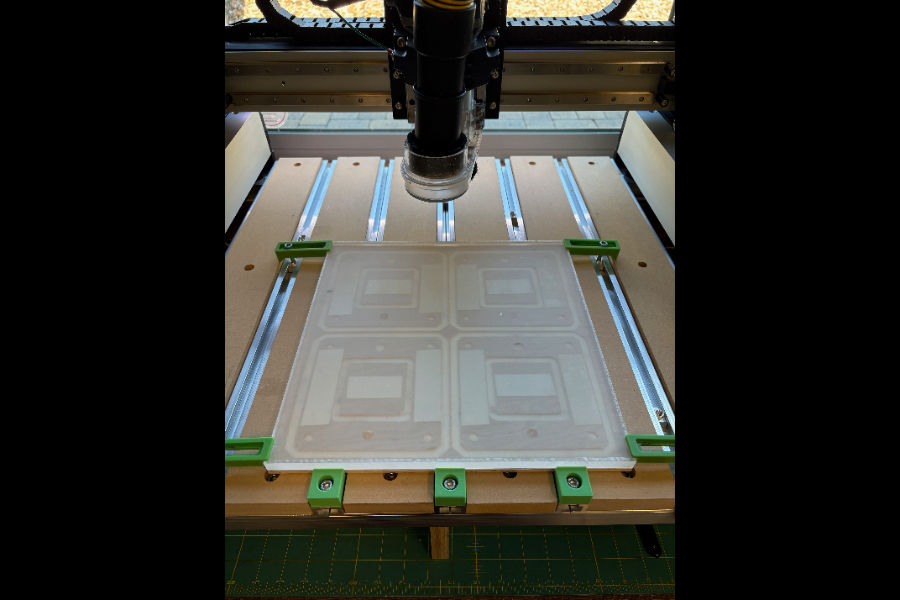

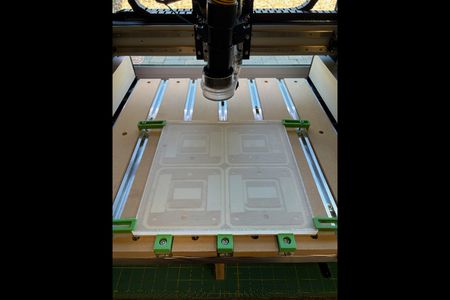

To avoid any post processing of the acrylic layer I made a 12”x12” template out of 1/4” plywood then ran a pass for the acrylic layer but only 1mm deep to etch a patten for positioning of double sided tape. Tape was placed only on areas where the end mill would not cut to avoid gumming up the bit. The acrylic sheet was positioned on top of the plywood/tape and cutout using a 278Z end mill. Results were excellent.

Post processing for top and bottom:

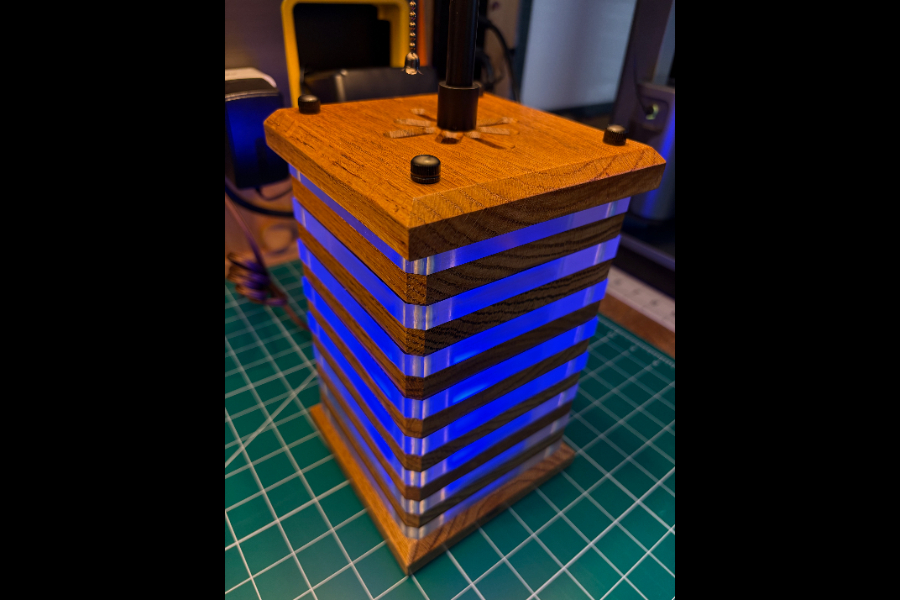

1/2” x .25” counter sunk holes were drilled in the underside of the base and top centered on each of 4 corner holes for the connecting rods. M5 nuts and washers fit into the underside of the base countersunk holes, connecting rod runs through each layer, and M5 washers and nuts on the top acrylic layer hold the stack together. The top nuts and washers fit/hidden into the counter sunk holes on the underside of the top and 4 decorative nuts fasten the top. The top decorative nuts can be removed for servicing the center accent lamp. I later added a tool path for pocketing the underside counter sunk holes and a small channel for the power wire to the top lamp. The top lamp has a pull chain for on/off but not used as LED wifi smart lamps are used for both the accent lamp in the base and the main top light.
