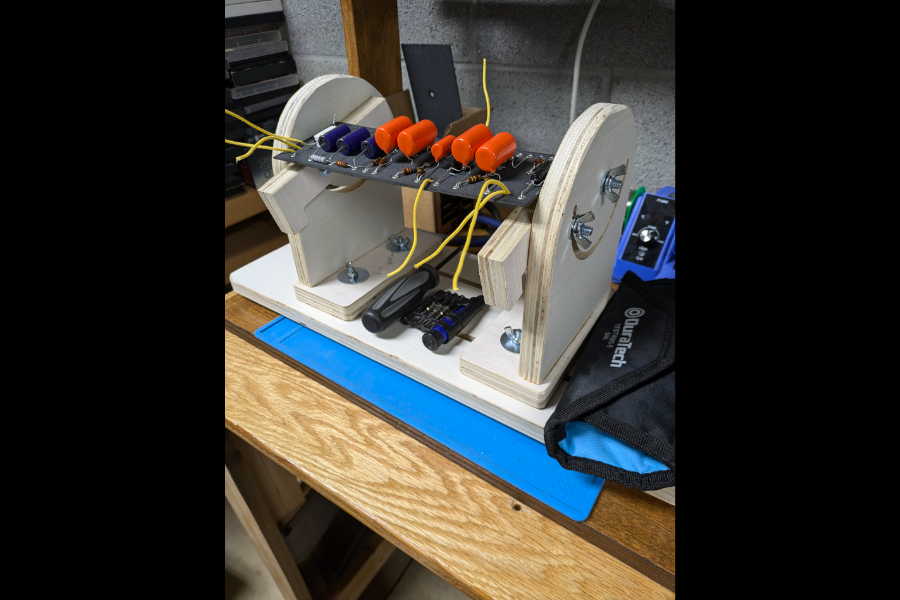

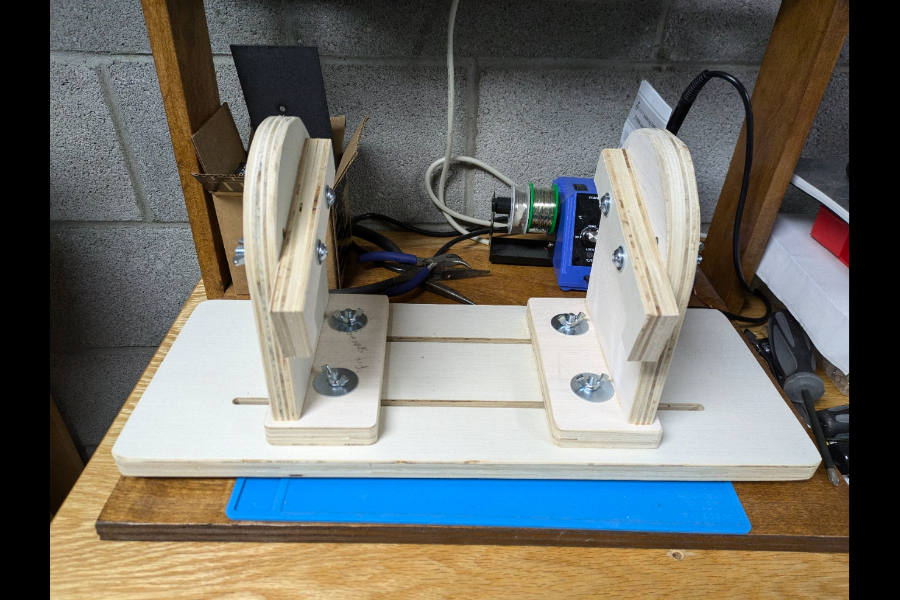

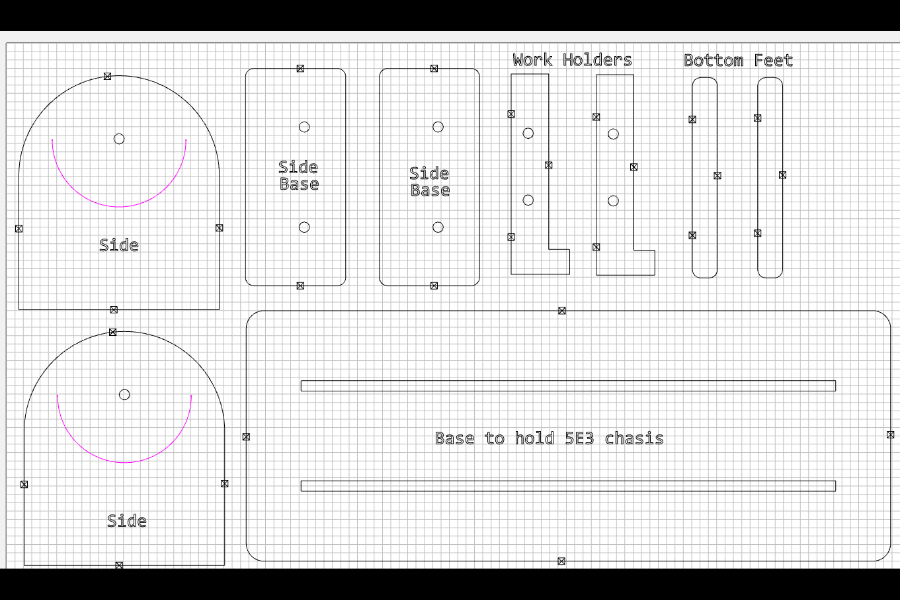

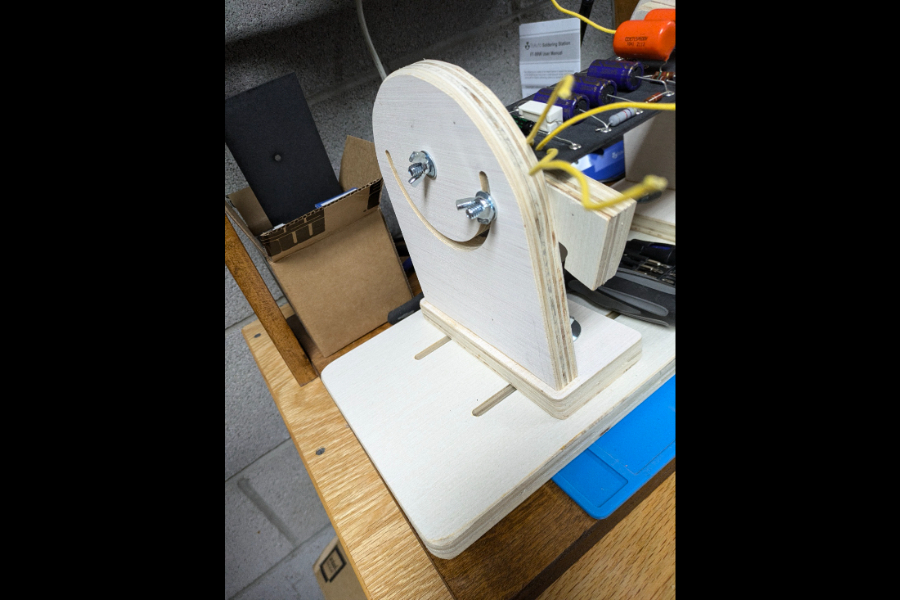

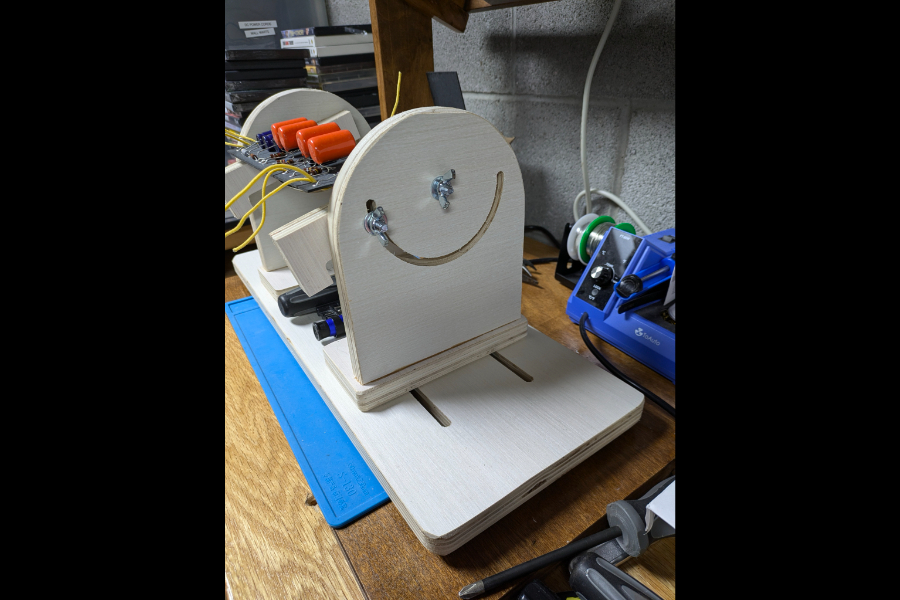

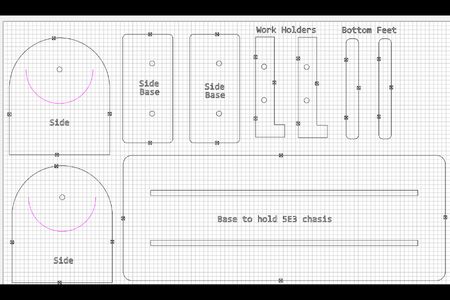

This is a home made version of amp chassis stand that people use to build amp kits. The size of the base will accommodate the the 5E3 chassis. The design takes one 1/4 down cut bit. the labels don't have a tool path so it won't show up on your pieces.
| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| AmpChasisStand 3Qtr | c2d | 460.00kB |
This is a simpler design of the amp chassis stands that you see for bigger amplifiers. The design is for the primed 3/4" plywood you can get at Lowe's and uses the carbide 251 down cut bit. Hope you find it useful.
