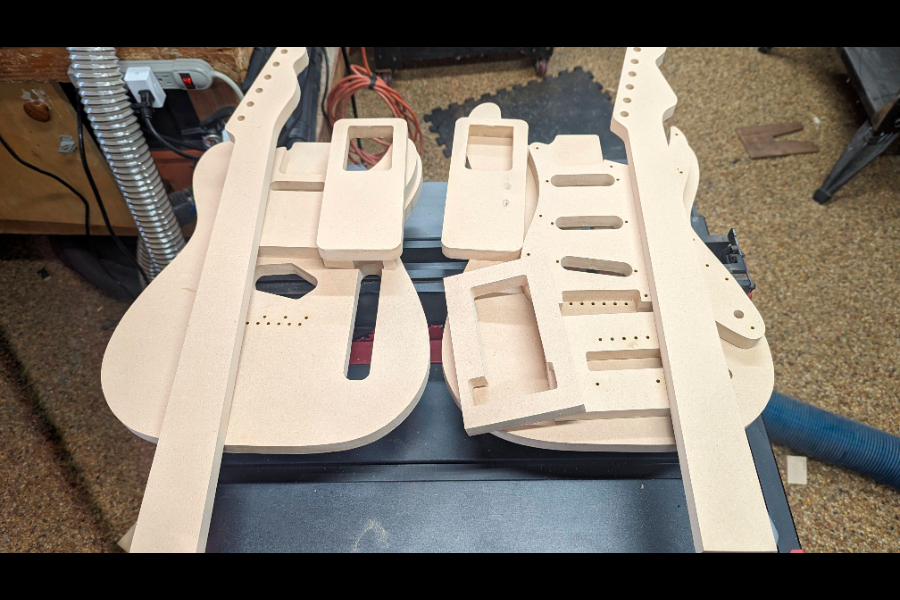

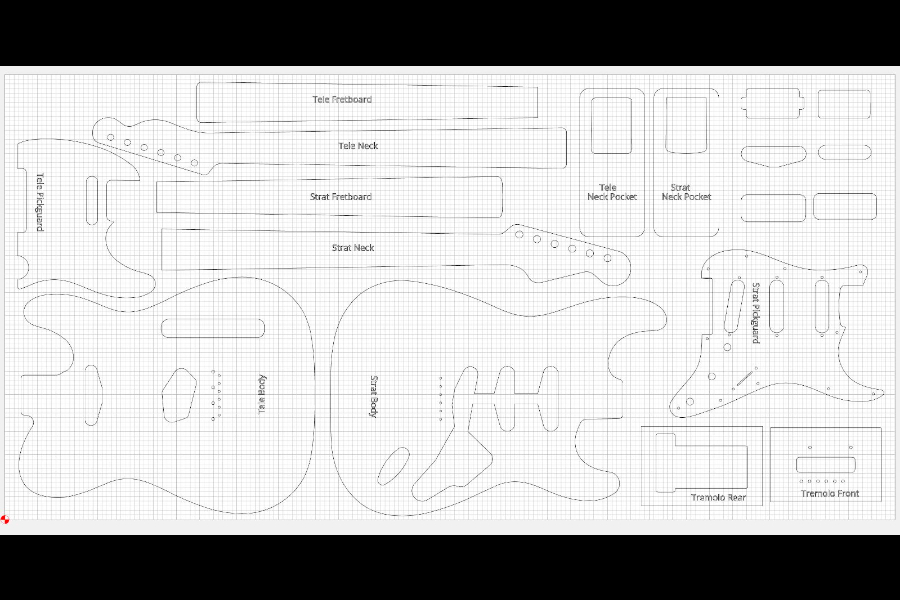

A bunch of router templates for Fender guitar shapes (Strat and Tele style). Includes neck, pickguards, bodies, fretboards, neck pockets, and 3 different kinds of pickups (single coil, humbucker, p90) for both body and pickguard cuts. These are for shaping guitar parts using a bearing bit on a router.
| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| Fender Templates | c2d | 896.00kB |

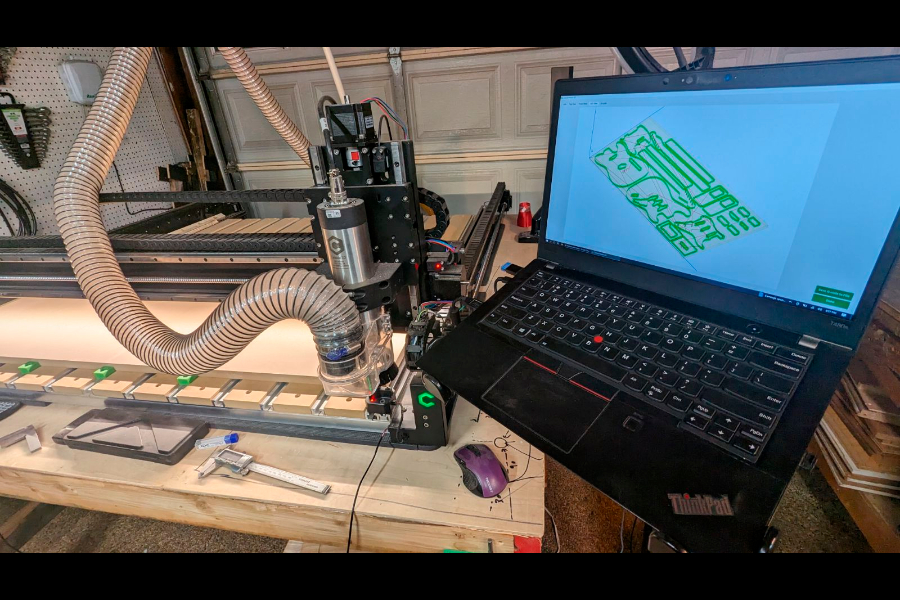

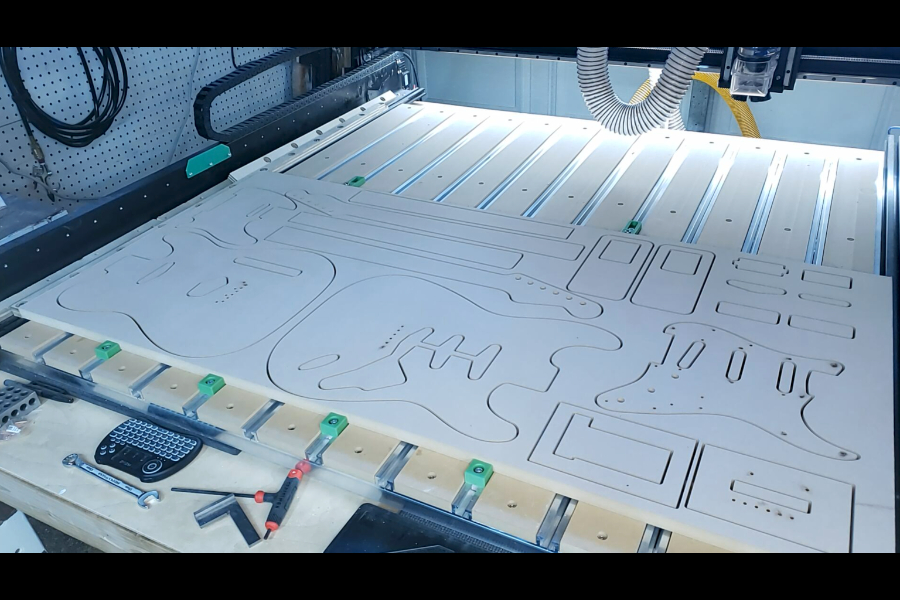

Be sure and update the thickness of your stock. There are no toolpaths in the file for the lettering, but if you want to carve those, you can add them. This file was designed for 24x48" stock. I cut mine out on an Shapeoko 5 Pro 4x4 w/ the Carbide3d #102 1/8" bit using the default feeds and speeds (which sucked, and took forever) so adjust yours to be better.
This is one of my first projects so I'm not responsible if your machine cuts itself in half or something. Use at your own risk.
