Hexagon Cubes by TheWoodworker

Hexagon Cubes

Created by - TheWoodworker

Date Created - 2023-11-06

Last Update - 2023-12-06 17:51:21

Status - published

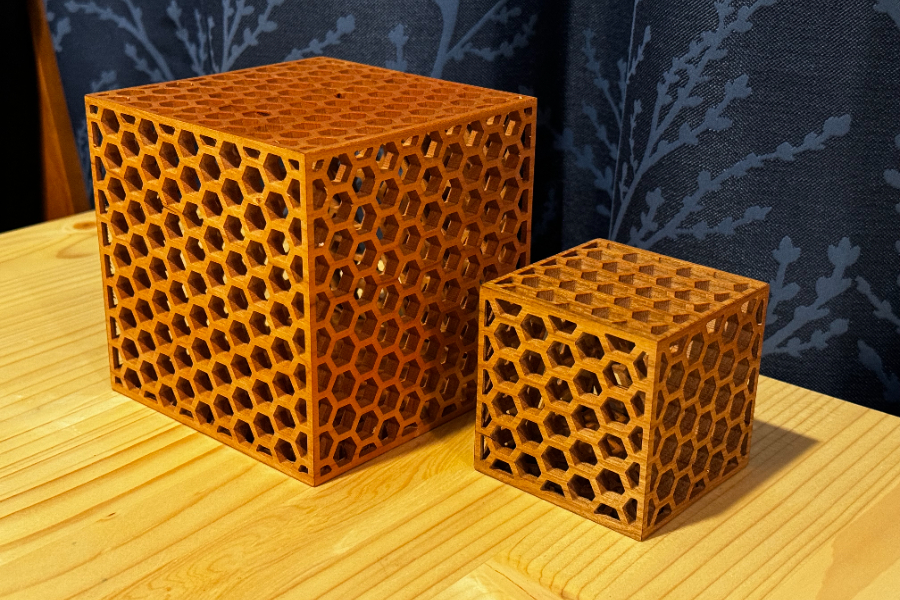

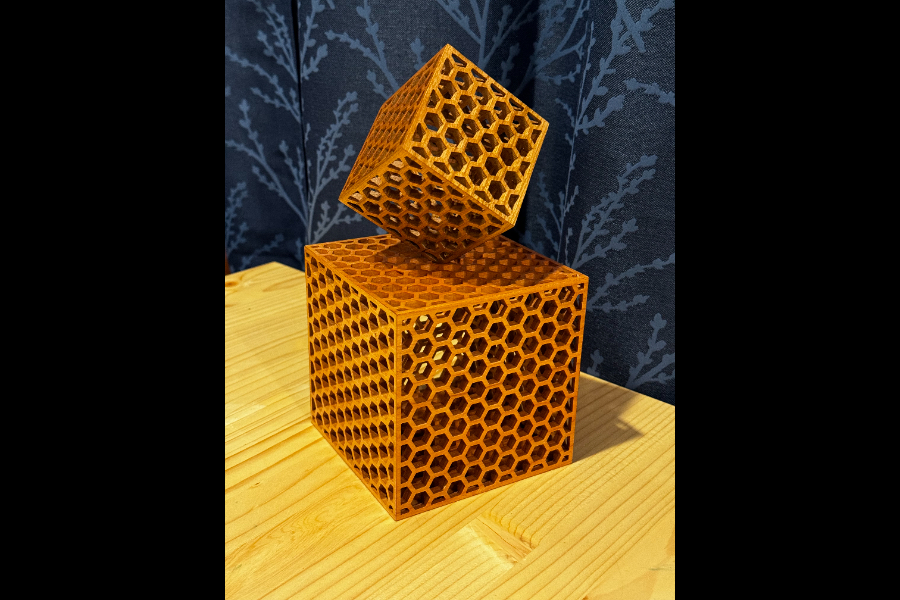

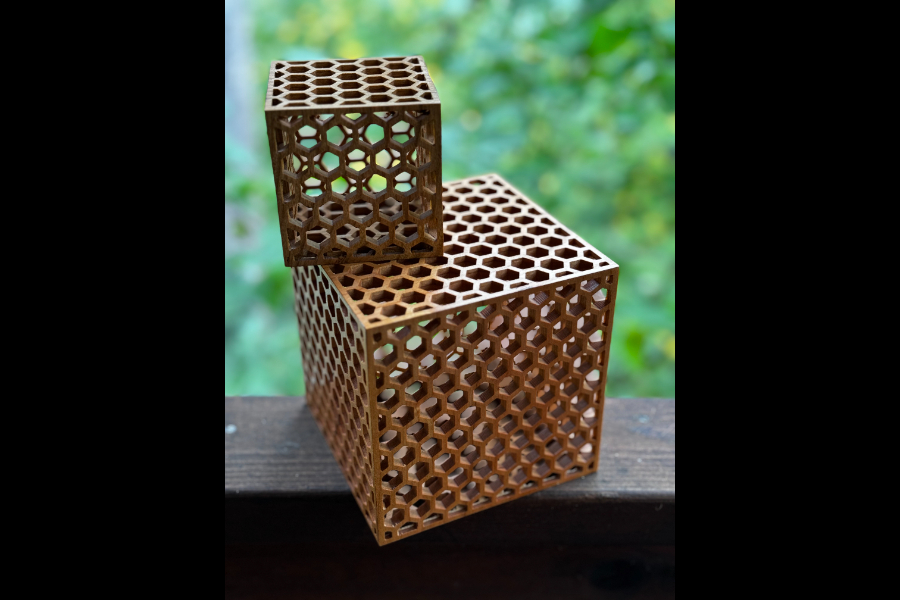

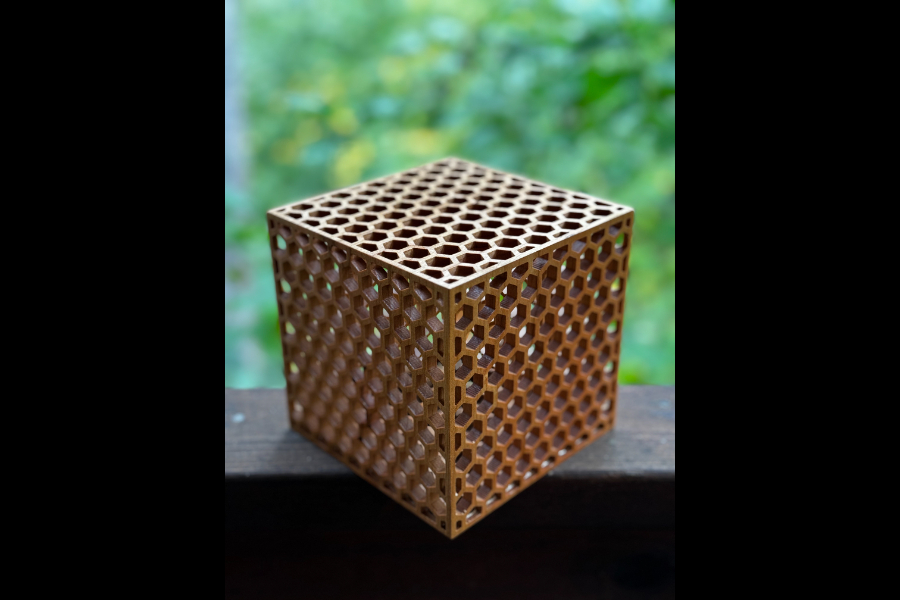

A nice proof of concept of how creative you can get with different patterns and a 90 degree V bit. I found that 0.25" stock is about as thin as I would push it, but once the 6 panels are glued up, it's plenty strong. Pushing the size bigger does increase the risk of material failure. I included files for a 3" cube and a 5" cube. Once cut, I recommend using nothing more than painters tape to provide the needed clamping force for assembly.

Tags

Download Project

Type	Length	Width	Thickness	Job Zero

Name	Type	Tool	Feedrate	Plungerate	Cut Depth

List of Files
	Filename	File Type	File Size
	Hexagon_Skeleton_Box	c2d	408.00kB
	5x5_Hexagon_Skeleton_Box	c2d	1.31MB

The vectors should be sound. I recommend cutting the cross grain V contours all the way through before pocketing the hexagons. Leave some material on the with grain edges to provide material to hold it in place. I refined the order in the 5x5 file vs the smaller one. Just play with the toolpaths and see what works best for you!
