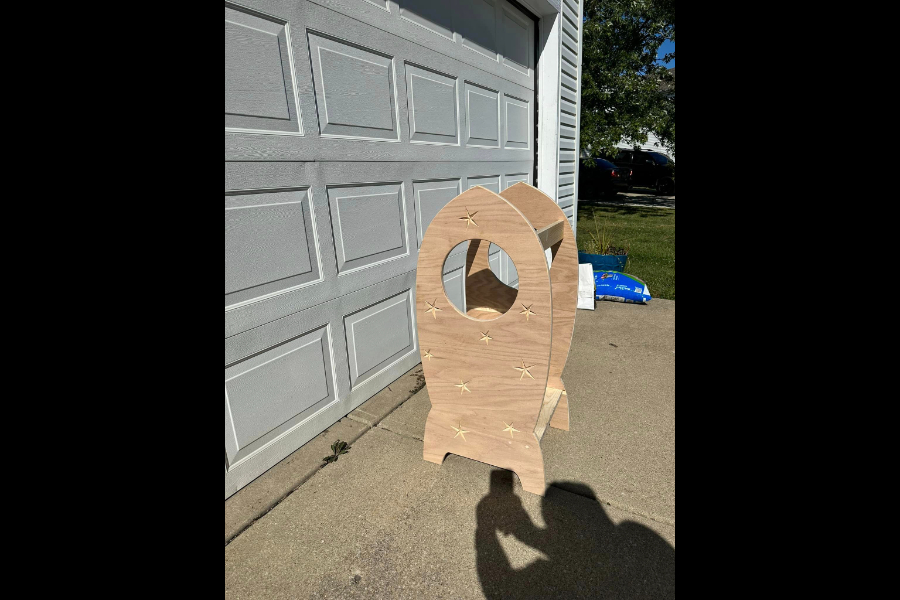

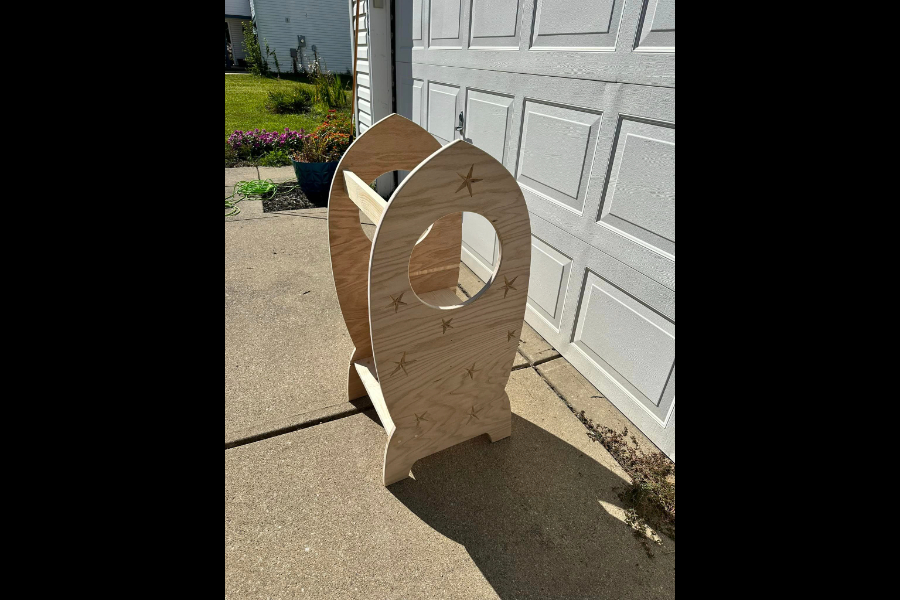

Inspired by Eigenbot, this is the rocket kitchen tower but not split into seperate cuts. I cut this in one go on my shapeoko 5 pro out of a 4x4 piece of oak plywood. I V-cut the stars to cut down on sanding time. I cut them on one side, flipped the 4x4 piece along the Y axis (left to right) and then did the pockets/contours on the other side.
| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| Rocket | c2d | 256.00kB | |
| Rocket | c2d | 256.00kB | |
| RocketStarsCarve | c2d | 228.00kB |
Cut stars on first side, and then flip the wood along the Y axis to cut out the rocket. If using a 4x4 piece of plywood, this will put the stars in the correct position on the outside of the rocket.

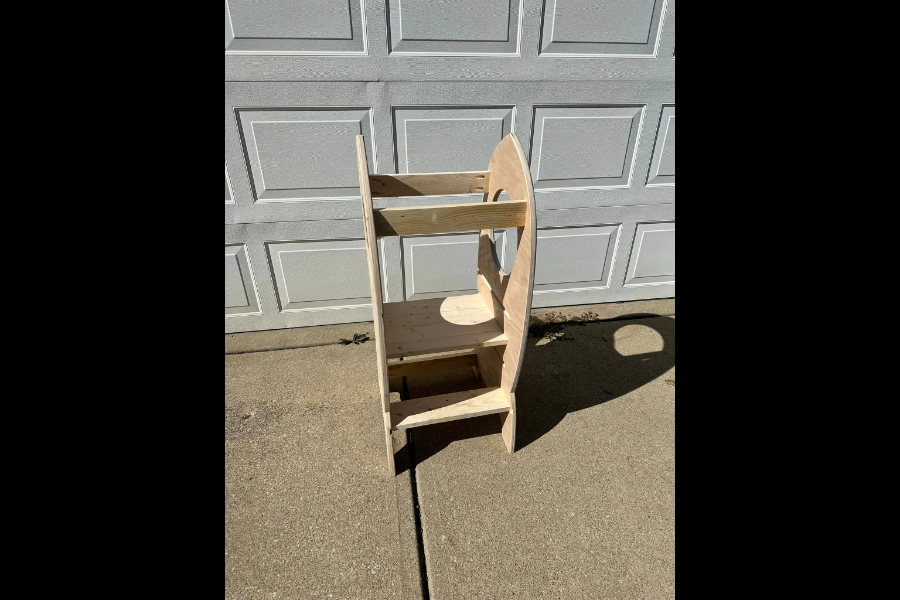

I set my width for the platform at 15", so you need to cut a 12x15.5" piece of wood as the pockets are .25". Cut another piece of wood at 4x15.5" for the step. In addition, I used two 2.5x15" pieces with pocket holes to give support at the top on each side, and one 2.5x15" at the bottom opposite of the step for extra support.
If you need help, please reach out on the Carbide3D forums and I will assist as much as I can.
