A Walnut + Brass Ring Box by KevinBarnett

A Walnut + Brass Ring Box

Created by - KevinBarnett

Date Created - 2023-06-19

Last Update - 2023-06-27 01:23:07

Status - published

From the Custom Ring Box Video these are the design files used to create all sides and inserts for that build. You are welcome to use them as a basis for your own project.

Tags

Download Project

Type	Length	Width	Thickness	Job Zero

Name	Type	Tool	Feedrate	Plungerate	Cut Depth

List of Files
	Filename	File Type	File Size
	C3D Ring Box V6 - Share	c2d	13.57MB
	C3D Ring Box - Top Side Flip Op - FINAL	c2d	140.00kB

Two files are provided in this project. Both are meant to be guides or templates for you to begin your own box. You are more than welcome to use all aspects of this box for your own projects.

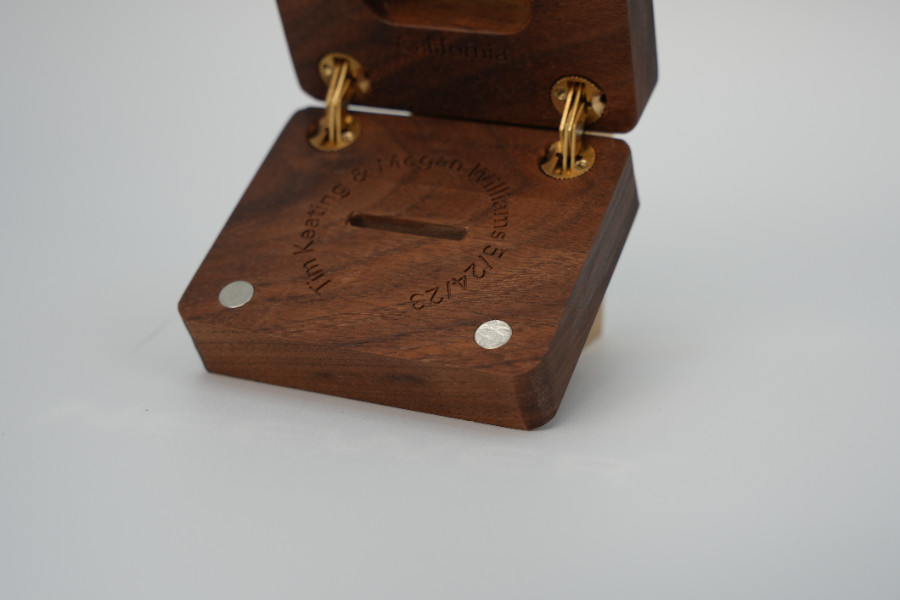

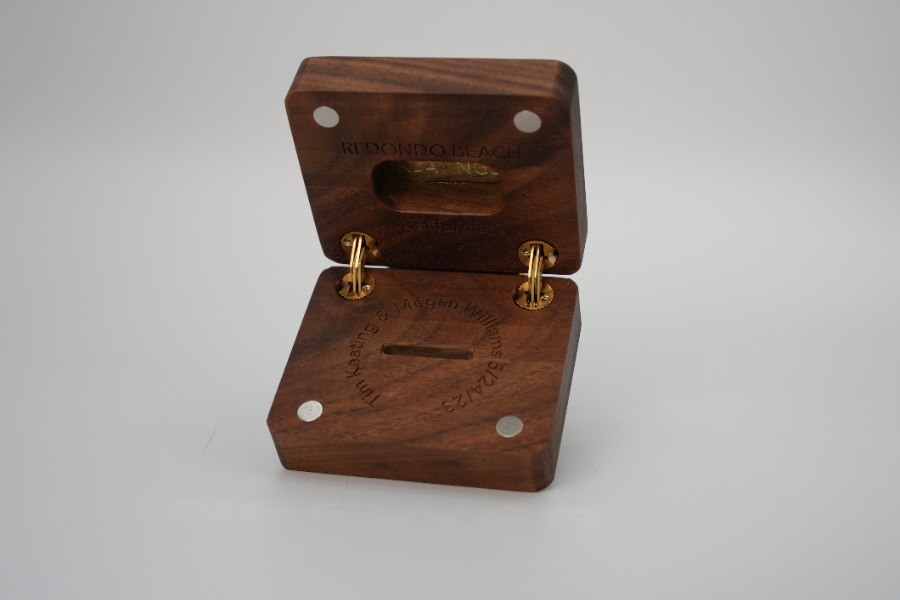

The first file is the Interior Creation.

Adding a "Facing Operation" to the start of your Interior Creation will increase the accuracy of any small lettering. On my build, I performed a facing operation on both sides of the walnut stock.

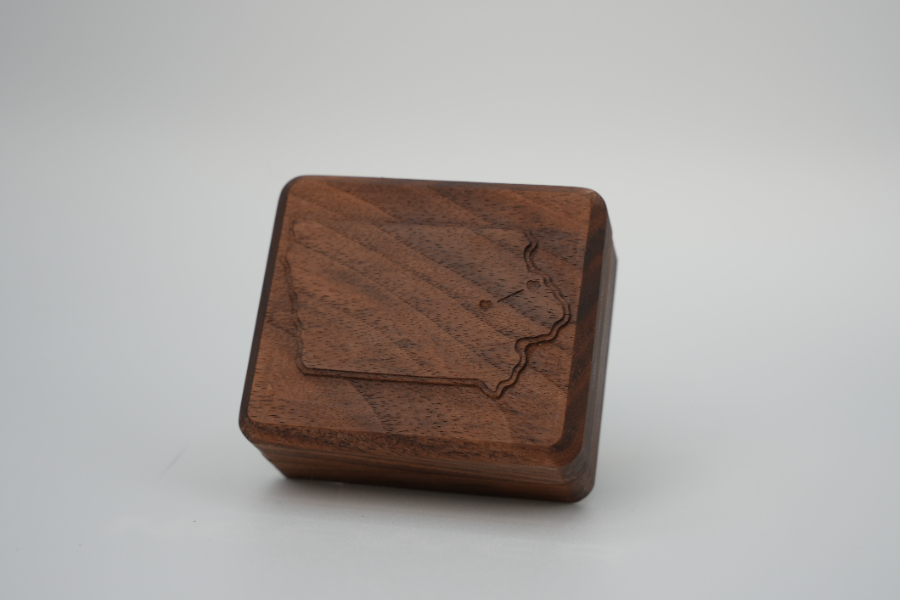

The second file "Top Side Flip Op" contains the vectors and toolpaths for creating the pocket location for the flip as well as the art used for the top of the ring box.

If you make your own, definitely post it here and tag us on Instagram. We love seeing your successful projects come to life.

Have you made this project?

If so, upload a photo to show the author some love and let everyone know what your finished version looks like!

You must be signed in to upload a photo.

Comments

cryptyk posted 1 year ago

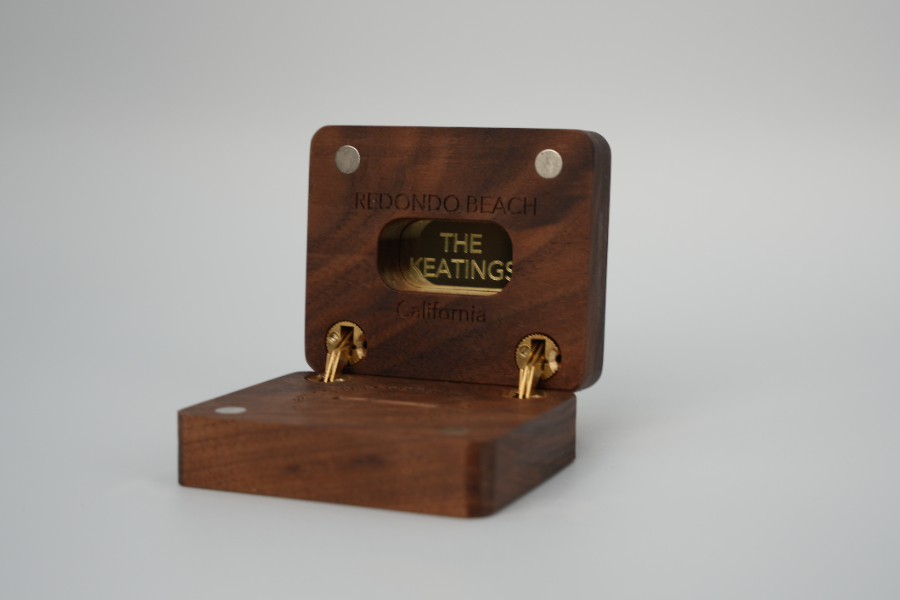

Is the brass nameplate just cut to size and glued in? Or is it somehow inserted between layers of the lid?

KevinBarnett posted 11 months ago

Cut to size and glued in.
