Shapeoko 5 Replacement Wasteboard

by Radiation · May 31, 2023 tools · 7131 views · 2190 downloads

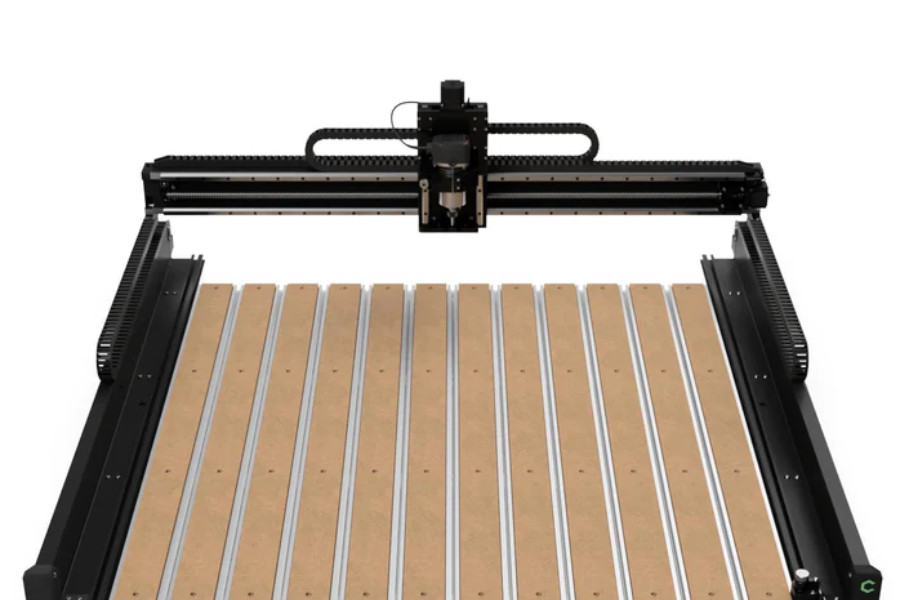

Shapeoko 5 Replacement Wasteboard

Files

C2D design1.c2d C2D design2.c2d C2D design3.c2d

Carbide Create files for 2x2, 4x2, and 4x4 Shapeoko 5 machines to replace the wasteboard slats.

Notes

2x2 and 4x4 are slightly smaller to fit into the workspace of the machine. 4x4 uses a 48 inch length since that can be easily sourced size. PDF for the exact measurements can be found here:
https://my.carbide3d.com/manuals/shapeoko-5-pro/
Under MDF Slat Dimensions.
Project was designed with Metric numbers. Depth was specified as 18mm, but you may want to increase to .75 inches if you get 3/4 inch MDF.
