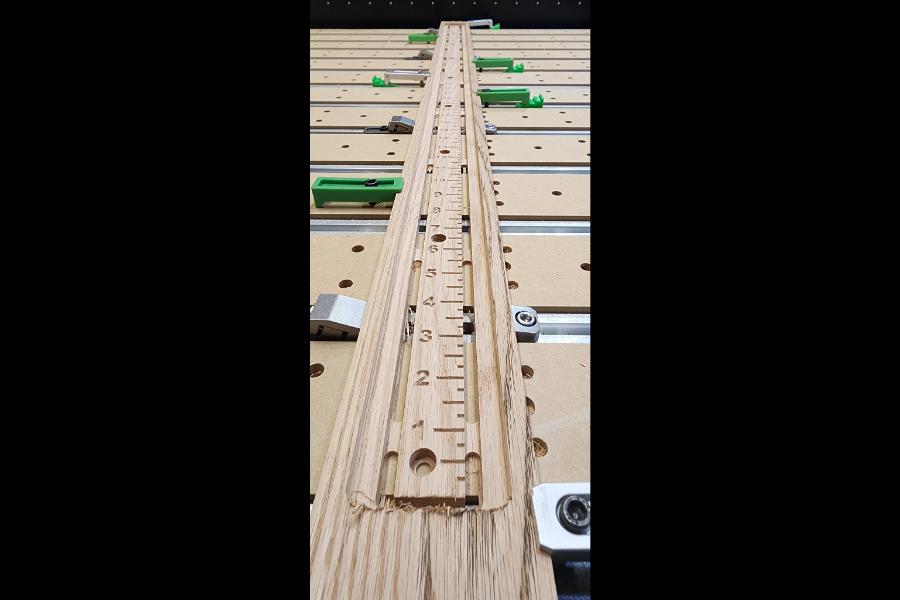

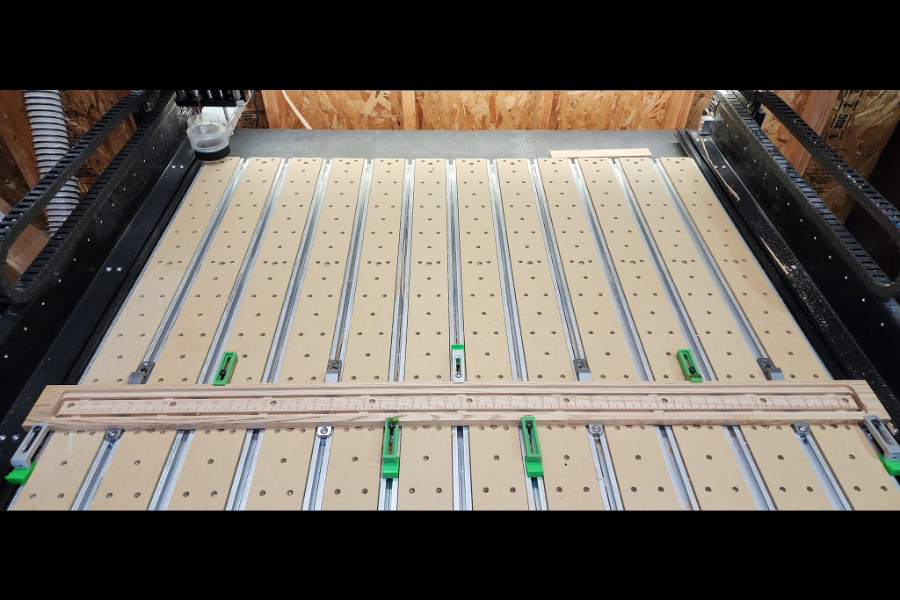

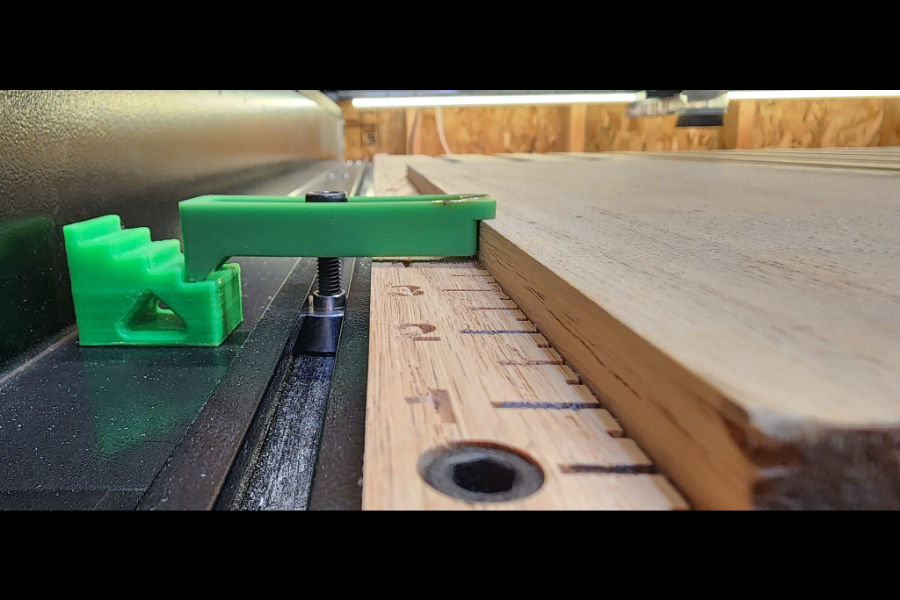

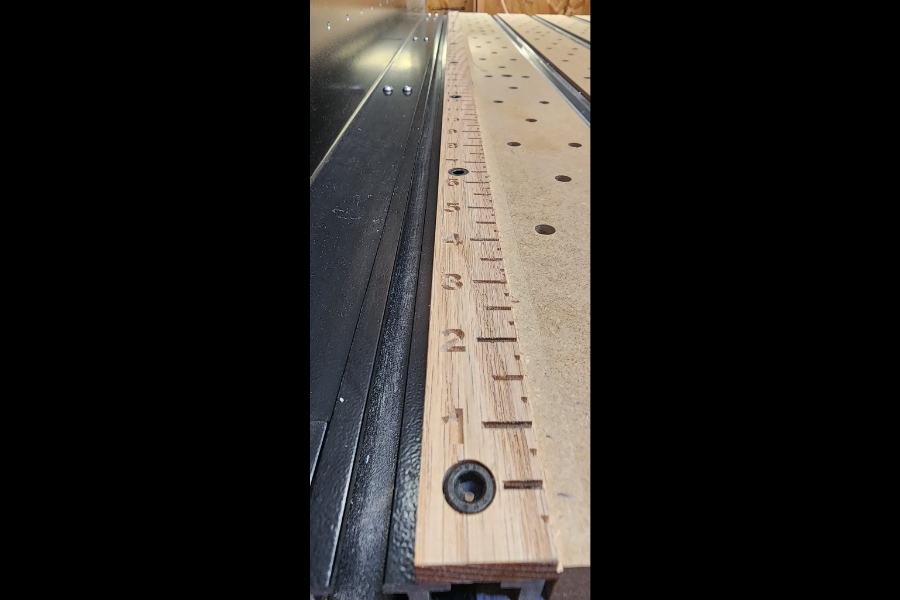

I totally stole Kevin Barnett's idea for a tiling fence, but made it fancy. I added counterbored holes for 6mm bolts used with TeezNutz, as well as a scale to have a reference for when you slide the material. This is designed to fit a S5 Pro 4x4. Please check and verify all the settings work with your machine and tools.
Type | Length | Width | Thickness | Job Zero |
---|
Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
---|
Filename | File Type | File Size | |
---|---|---|---|
S5ProTileFence | c2d | 764.00kB | |
S5ProTileFence | c2d | 764.00kB | |
S5ProTileFence | svg | 121.44kB |
Material is 0.375" thick, at least 49" in X, and 3" in Z. I chose this thickness so that the side clamps can still be used in the outside t-track on 1/2" thick material. I used some red oak I had sitting around, but use anything you like.
I used a 60 degree v-bit, 1/8" 2 flute endmill, and a 1/4" 3 flute endmill.

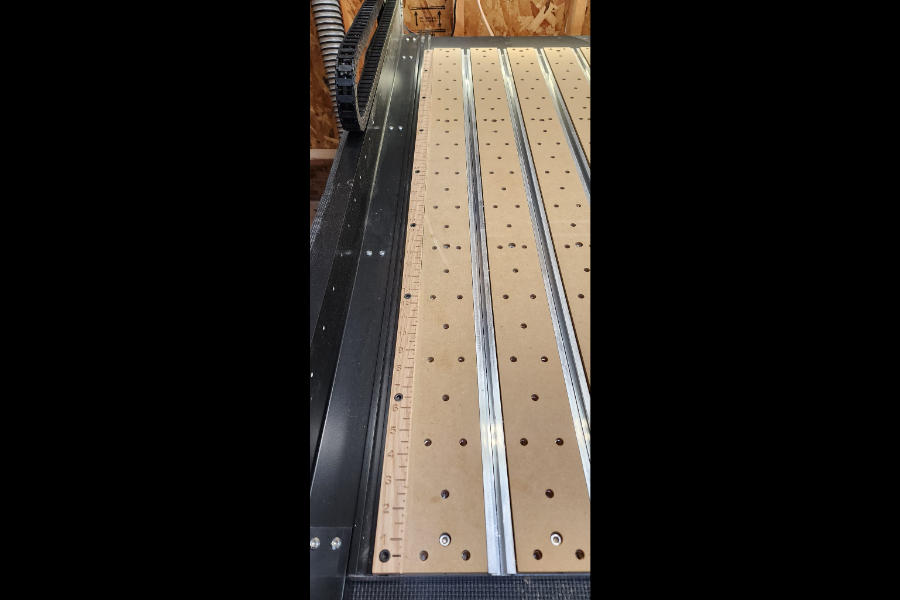

After you cut and install it, Just jog the machine with the spindle on, and the Z just skimming your wasteboard, along the Y axis to barely shave the inside edge perfectly parallel to your Y axis.
After you cut the first part of the project, make a mark on your material at a line, then slide it the amount you entered into your program.
