3D Rams Drop Tray - STL Imports by KevinBarnett

Date Created - 2023-02-23

Last Update - 2023-03-10 15:17:01

Status - published

If you enjoyed the STL Imports Rams Tray project video, you can now make it yourself or use it as the basis for another design.

Tags

Download Project

Type	Length	Width	Thickness	Job Zero

Name	Type	Tool	Feedrate	Plungerate	Cut Depth

List of Files
	Filename	File Type	File Size
	3D Rams Tray - CUTROCKET	c2d	2.65MB

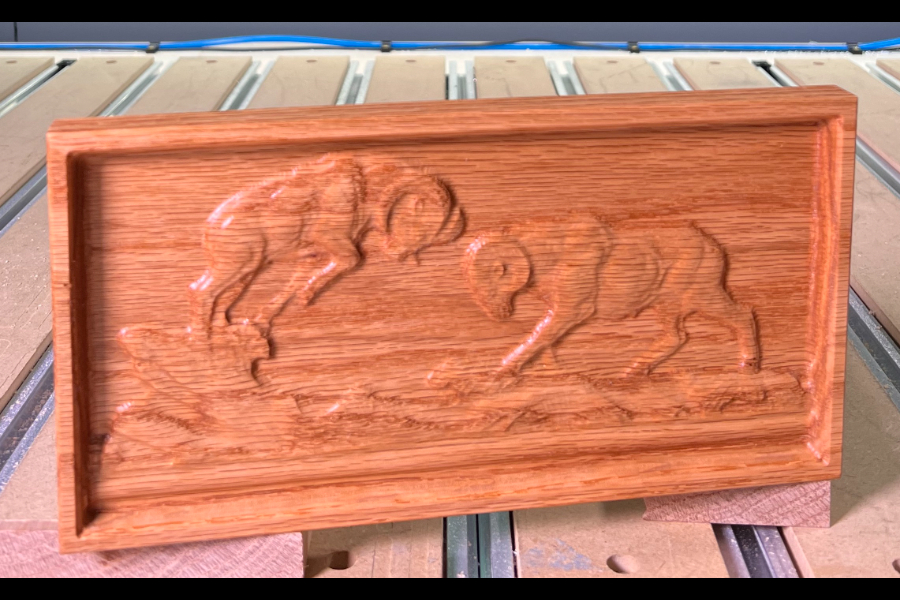

This Rams Tray can be used as the basis for another STL Import or a simple drop tray design.
-This version, from the video, contains both Chamfer and Finishing Toolpaths.
Super Glue and Blue Tape are recommended as workholding.
If you are going to use another workholding method, it's recommended that you apply tabs to the outer contours.

Enjoy and post your projects here.

Have you made this project?

If so, upload a photo to show the author some love and let everyone know what your finished version looks like!

You must be signed in to upload a photo.

How do you add tabs to the downloadable project? Or, how do you hold the second rough cut if you do not use tape?

In the Design Dialog, select the outer contour, select the tab tool and add tabs to that contour.

Is this going to also carve the rams in the bottom of the tray? they do not show up in the Preview, also there are no material size specs listed

Due to the 3D elements, you'll need Carbide Create Pro in order to utilize this file.
