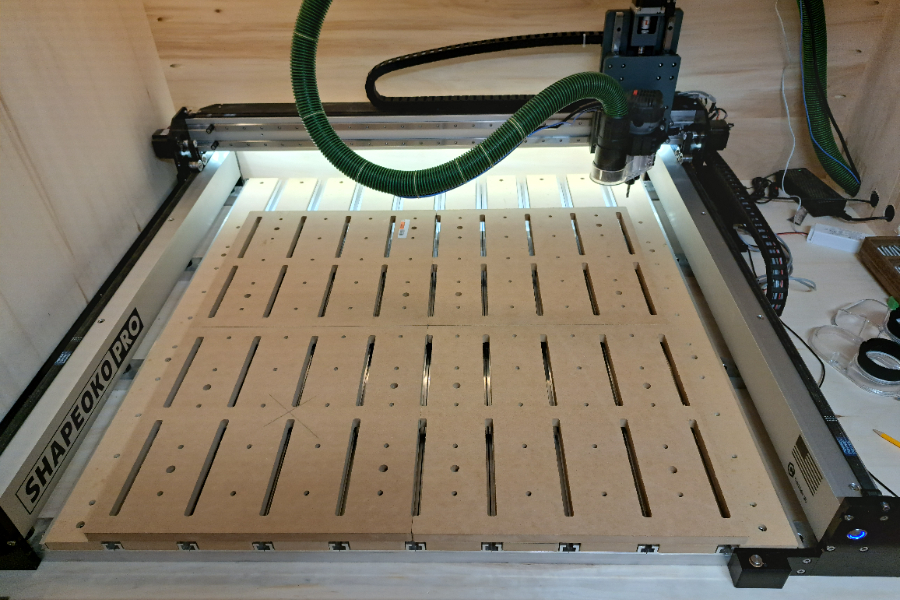

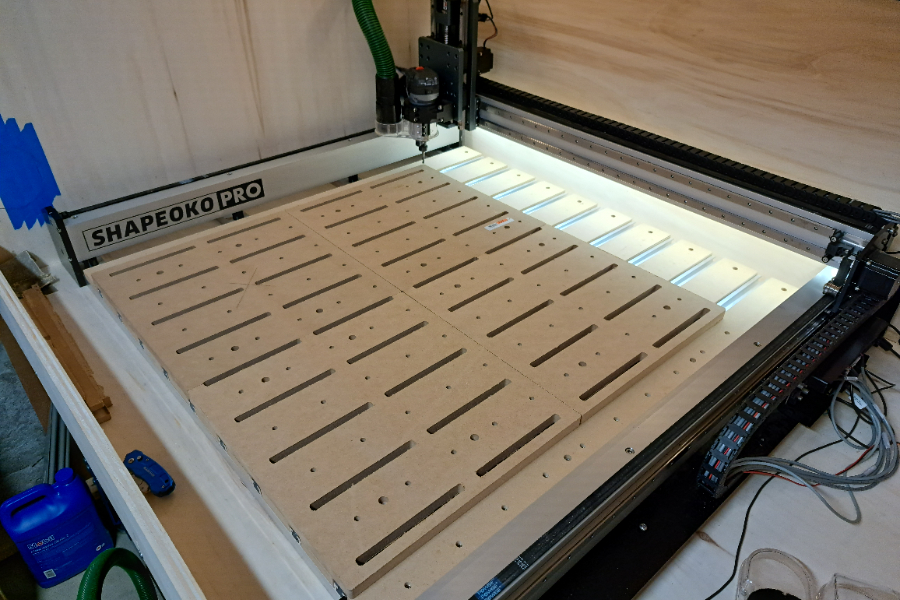

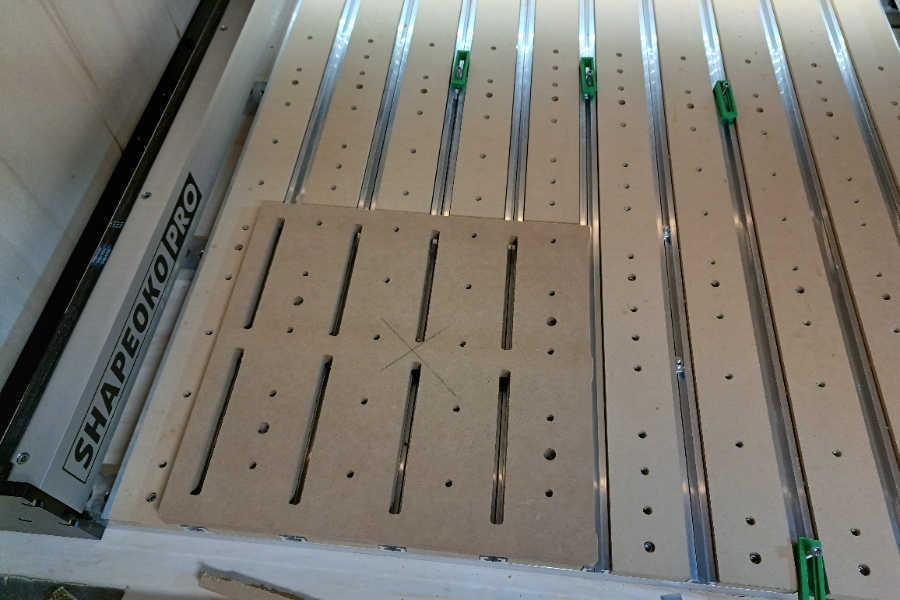

Four individual wasteboards to act as sacrificial boards to add a layer between the bit and the factory slats.<br /><br /><br />
<br /><br /><br />
All through cuts to allow access to the factory tracks and treaded inserts in stalled in to slats (see other CutRocket file)
| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| SW (lower left) | c2d | 80.00kB | |
| SE (lower right) | c2d | 84.00kB | |
| NW (upper left) | c2d | 80.00kB | |
| NE (upper right) | c2d | 84.00kB |
File was created based on dimensions of my Shapeoko 4 Pro XXL
Please verify dimensions with your machine before proceeding.
File created with Carbide Motion, version 742.
**Works with threaded inserts in slats (see other CutRocket file)
Bit USed:
-1/4" end mill (#201)

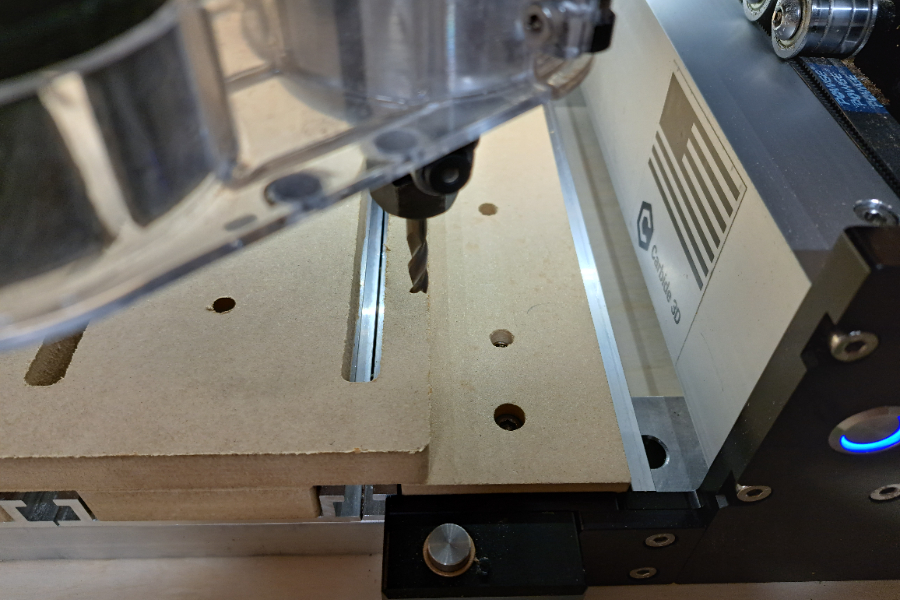

All through cuts except for the four mounting holes which have a recess for the bolt. For the four mounting bolt, choose your own depth that gives enough material under it to hold wasteboard and enough depth to allow surfacing without hitting the mounting bolt.
