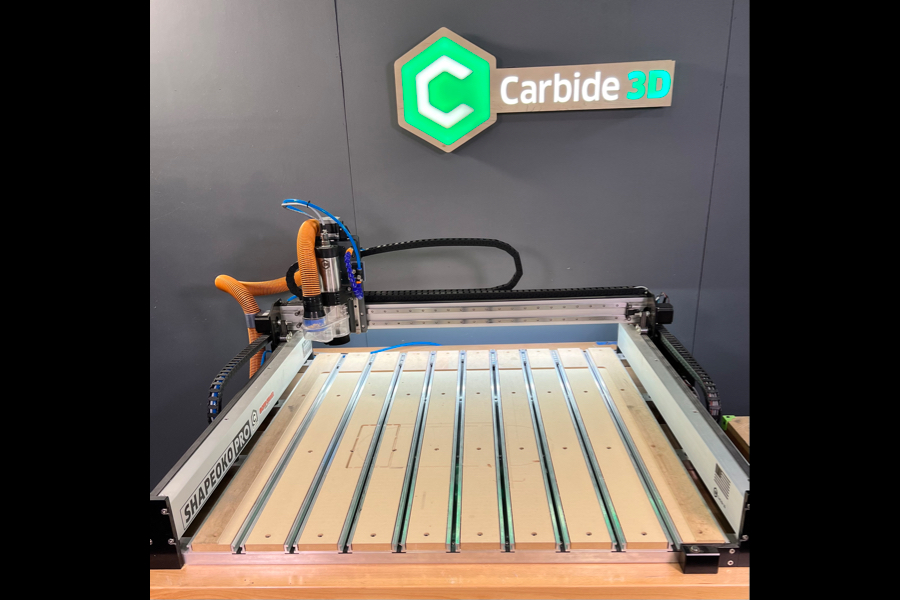

Want to flatten your XXL machine? The flattened area will be approximately 33 1/4" Wide x 34 1/2" of Machine Depth.
This file is designed to be run with a 1" Fly Cutter. It can also be run with any other end mill you decide to use.
(See the Notes for further details)
| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| V7 - Flattening 4+Pro XXL | c2d | 44.00kB |
Disable Bitsetter in the Settings Menu
Rapid your machine to "C" or Center.
Zero the X+Y of your machine at that position.
Set the Z Axis zero at the top of your waste board.
McFly 1" Fly Cutter is the Tool defined (#88)
If you alter the tool you can run this with another end mill. (Such as the #201 1/4" bit that is standard with every Shapeoko)
Once complete, re-enable your BitSetter and enjoy the 100% flat waste board surface.
Have you made this project?
If so, upload a photo to show the author some love and let everyone know what your finished version looks like!
You must be signed in to upload a photo.
made by {makerusername}
Comments
Amsterdam posted 10 months ago
Will this work with the Shapeoko 5 pro? Thanks!KevinBarnett posted 7 months ago
I am making one that works with the Shapeoko 5 Pro. Same workflow, just a larger footprint.You must be signed in to leave a comment.
