Hybrid Table Slats - XL by IrishCAPT

Created by - IrishCAPT

Date Created - 2022-08-10

Last Update - 2022-08-12 17:22:36

Status - published

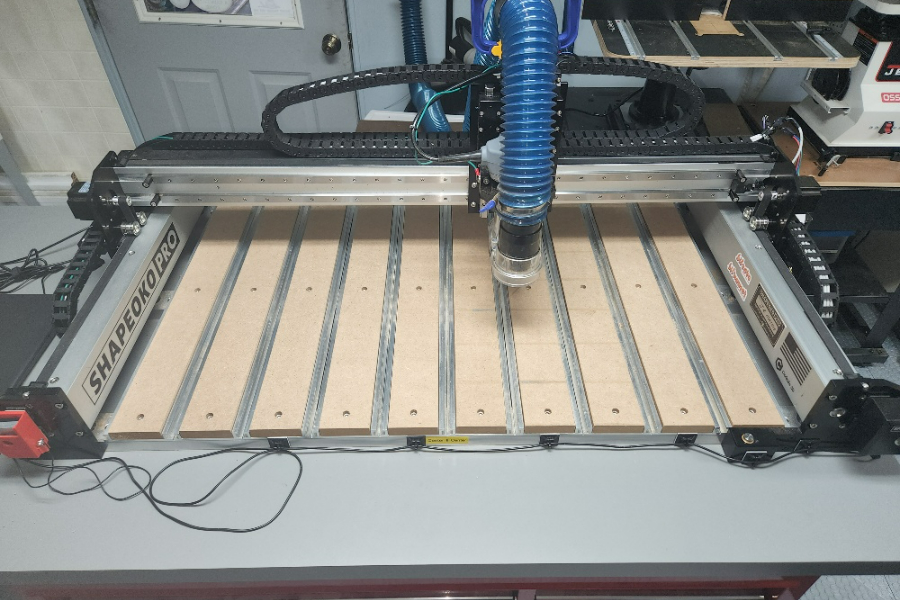

Produce 5 spoilboard slats for the Shapeoko Pro XL out of 24" x 16" x 3/4" piece of MDF

Tags

Type	Length	Width	Thickness	Job Zero

Name	Type	Tool	Feedrate	Plungerate	Cut Depth

List of Files
	Filename	File Type	File Size
	Spoil Board Slats - Shapeoko Pro XL - CC v7	c2d	84.00kB
	Spoil Board Slats - Shapeoko Pro XL - CC v6	c2d	109.67kB

Stock material is 16" x 24" x 3/4" MDF.

Tool Path Zero is Lower-Left

Only need to use a #201 1/4# (or other brand equivalent) for all cutting

Overall length of project is roughly 50 minutes.

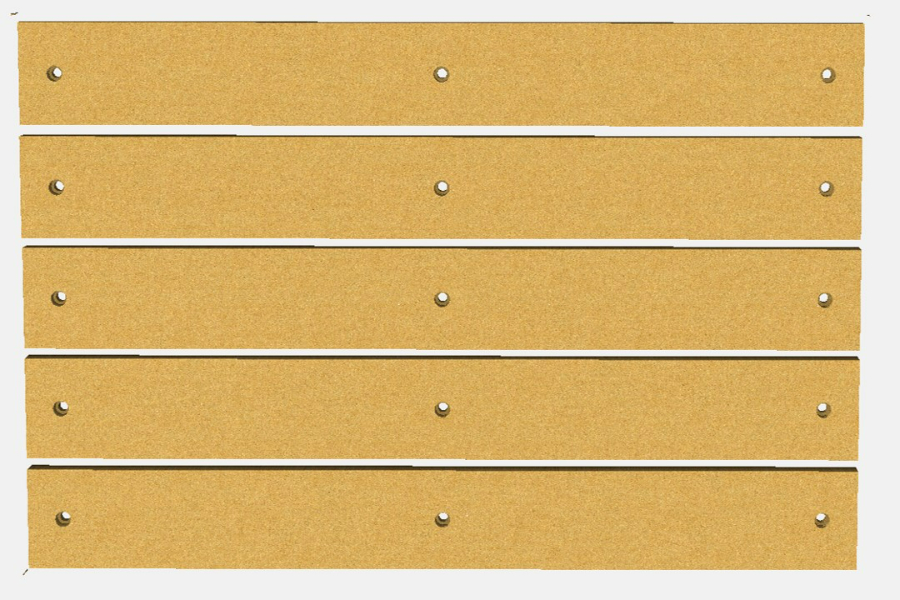

Produces 5 spoil board slats.
