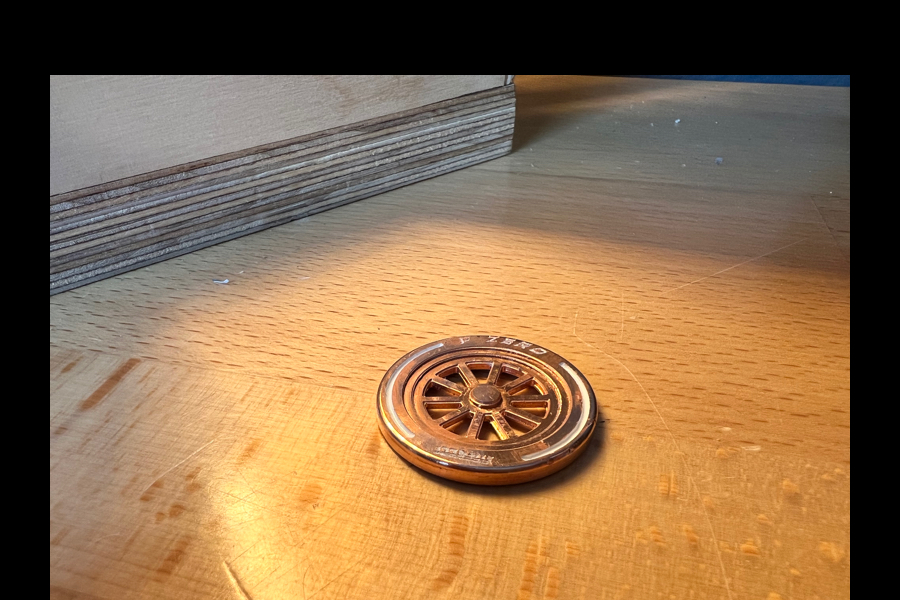

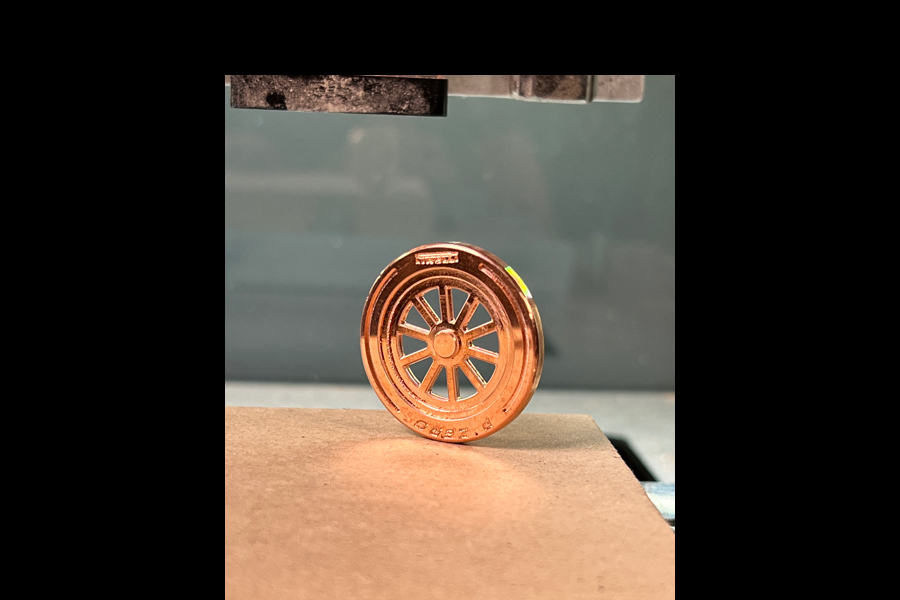

Formula 1 Wheel Coin

by KevinBarnett · June 24, 2022 art · 5313 views · 1426 downloads

Formula 1 Wheel Coin

Files

C2D design1.c2d

The flip machine example used in our YouTube Shorts video is here. This file would be fun for more than just a coin or marker.

Notes

  1. Run the Pocket Toolpathing

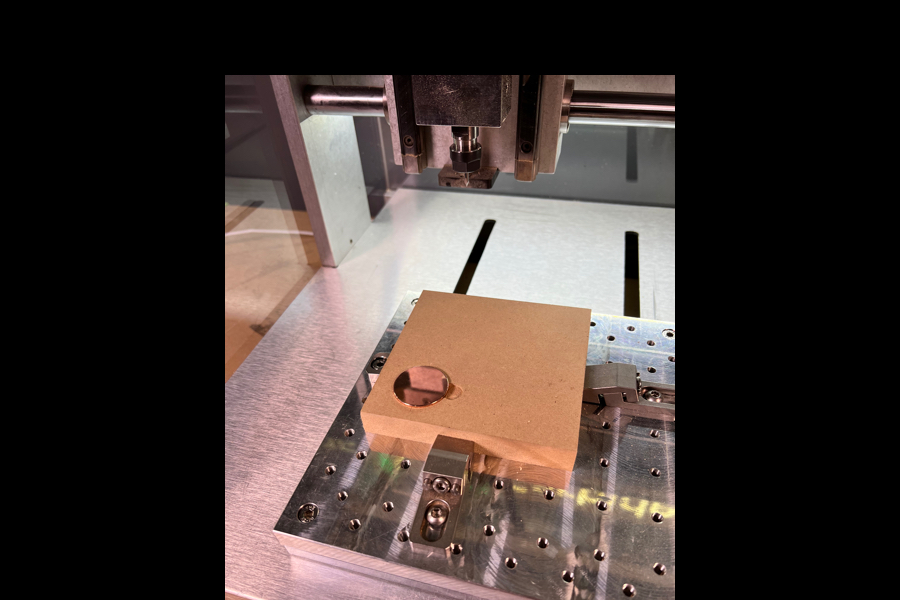

  2. Press Fit your Copper Blank (or whatever coin you are using)
  3. Re-Zero ONLY the Z-Axis to the top of your coin
  4. Mark the bottom of your coin in line with the Registration Line with a pencil

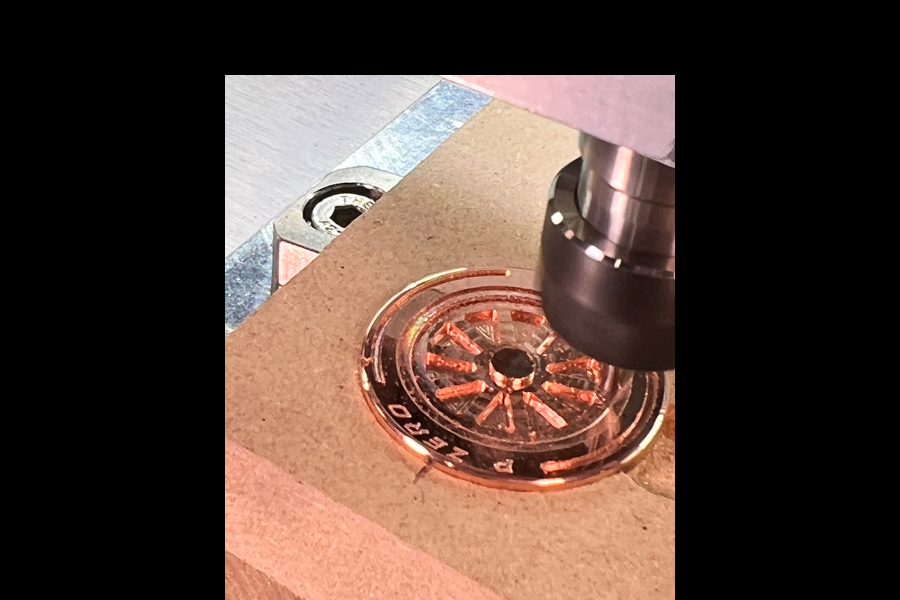

  5. Run A-Side
  6. Remove Coin / Flip / Align Pencil Mark + Registration Line / Press Fit with A-Side facing down
  7. Run B-Side
  8. Impress your family and friends with your machining skills.
