These blocks will allow for easy install of Air Assist on the following:
| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| Air Blast Block 1 - HDM | stl | 60.63kB | |
| Air Blast Block 2 - SO Pro on HDZ v4 | stl | 167.27kB | |
| Air Blast Block 3 - SO Pro - Z+ | stl | 321.96kB |
Download the Appropriate block for your Carbide 3D Machine.
3D Print or Machine and Tap the block.
Install Air Assist per the instructions and parts list in the video.
Enjoy cutting metal with greater ease and reliability.
Post your install here as well as on Instagram and tag us!
Links and Required Hardware for Install at Z-Axis:

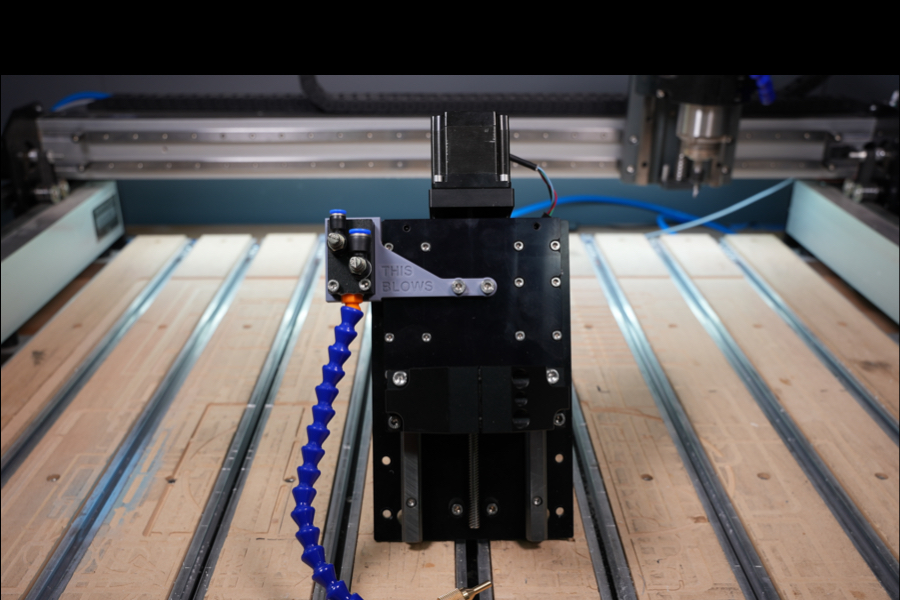

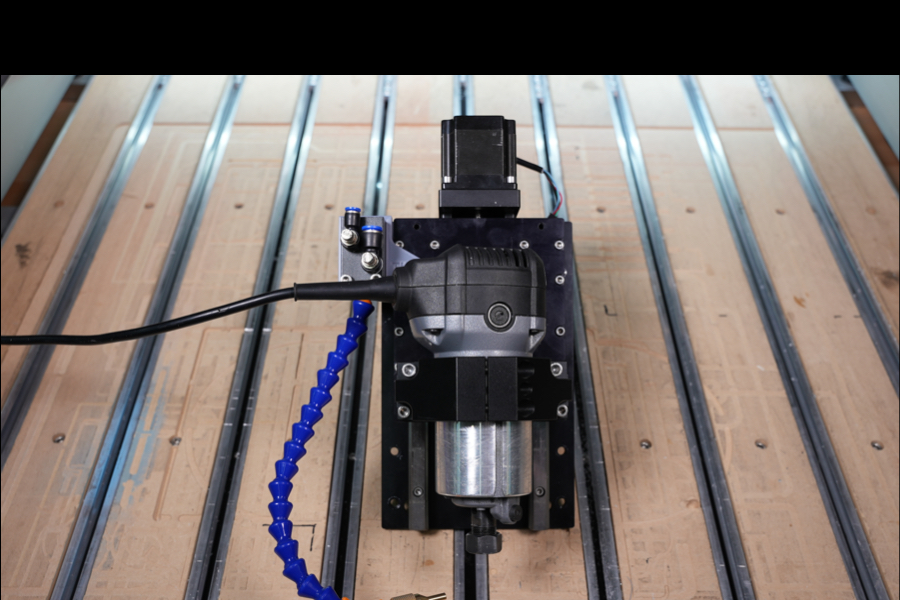

Z+ (stock Z-Axis)
Fusion 360 File direct link: https://a360.co/3a0yWyx
Hardware: 2x - M5x25mm / 2x - M6x12mm

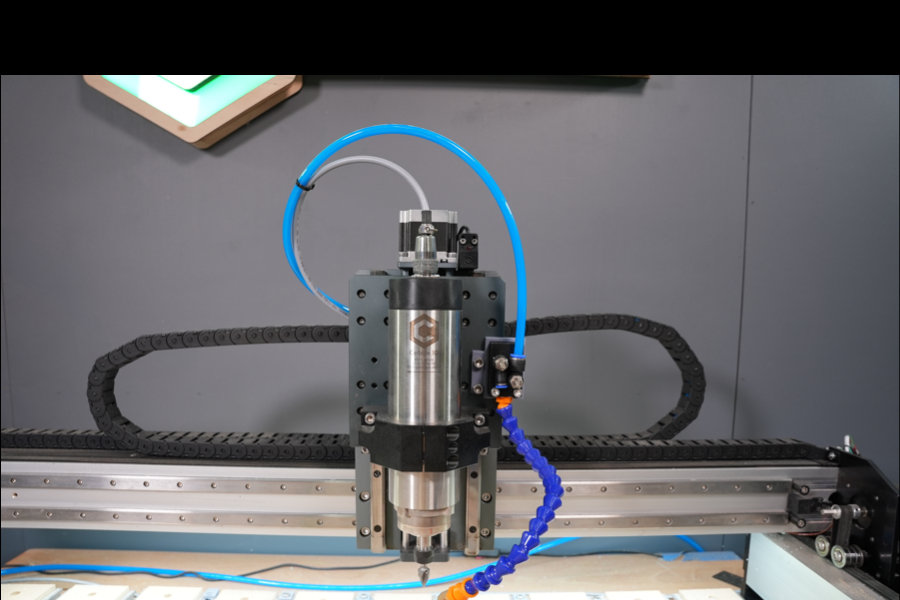

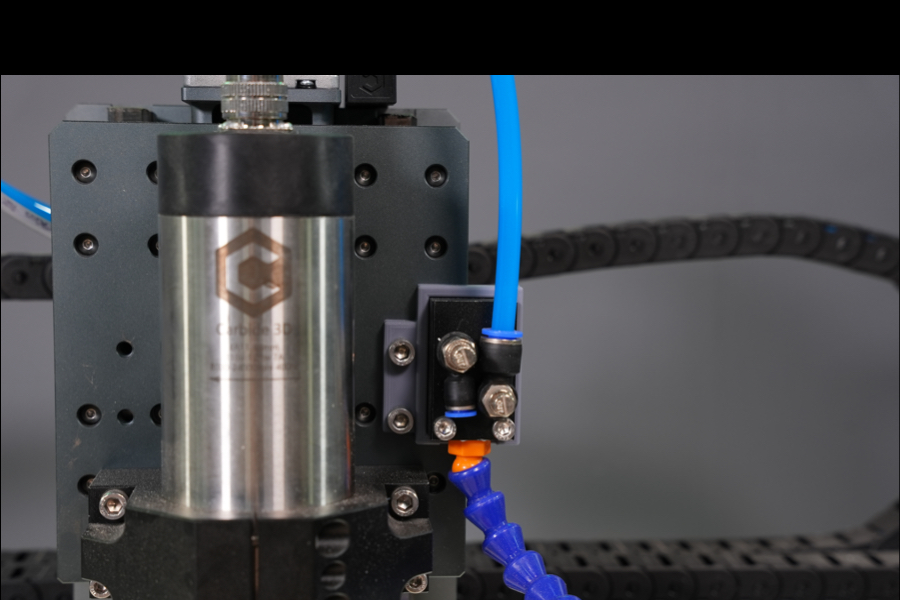

HDZ - 2x
Fusion 360 File direct link: https://a360.co/3l5fLFO
Hardware: M5x25mm / 2x - M6x12mm
HDM
Fusion 360 File direct link: https://a360.co/3L4Pged
Hardware: 1x - M5/35mm
