|Filename||File Type||File Size|
|V10 Rotated and Half||crv||12.98MB|

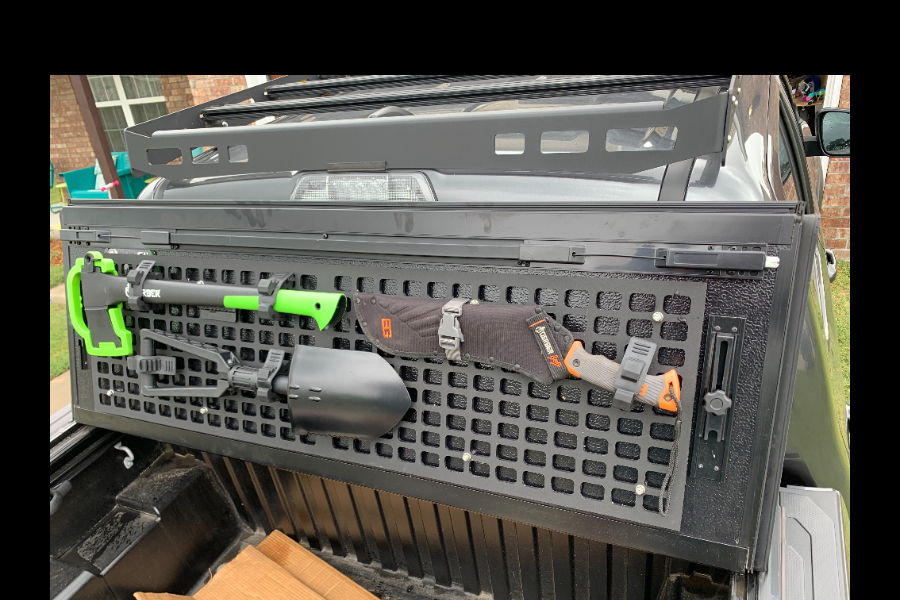

This is a pretty straightforward project that the files should give most of the information. I am using 0.25" elevator bolts, 1/2" spacers and washers and nylock nuts to hold it to my tonneau cover. I had to measure to get everything a clean as possible but the hardware is stainless or aluminum so it will hold up to the elements.
The 0.25" starboard I used was a little more flexible than I would have liked but seems to be holding up well.

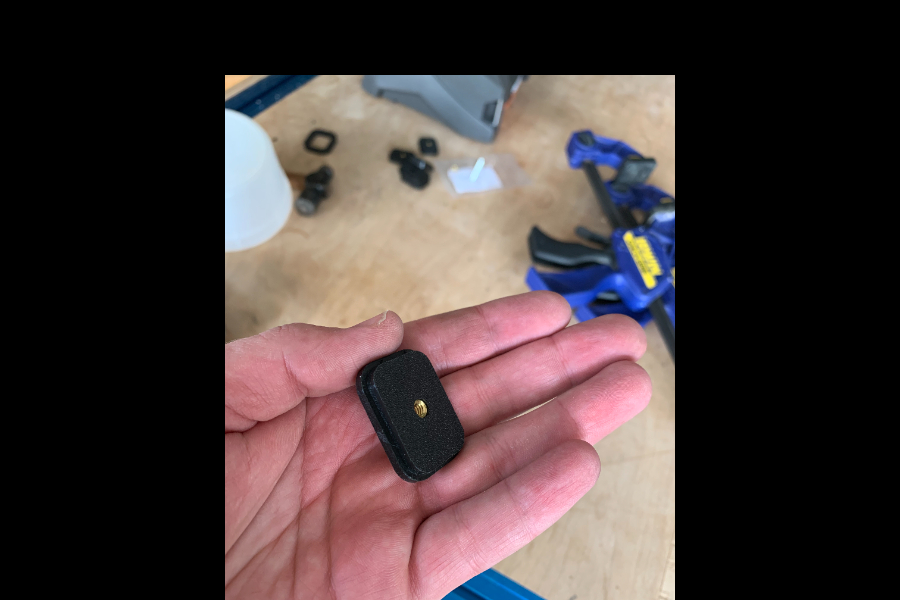

The 10-24 thread inserts work great to hold on the quick fists with the insert I made to come in from the back of the panel. I added a bonus little V Carve I was messing around with for a tag out of the Starboard.

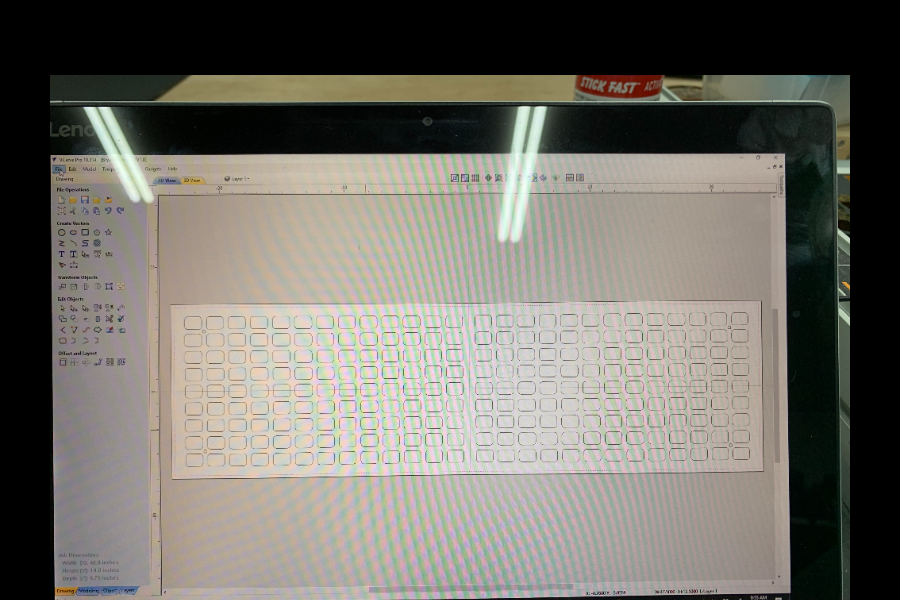

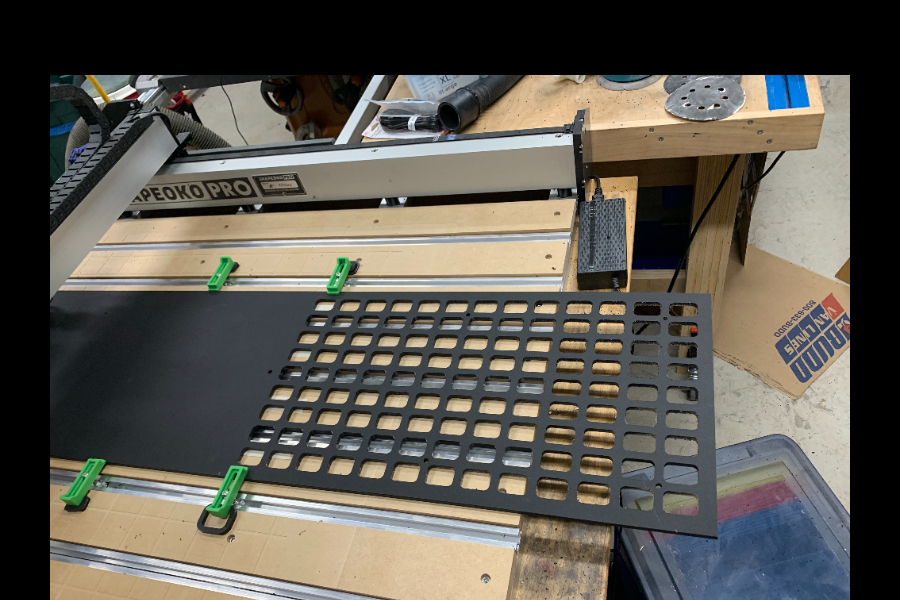

The file V1.0 is the whole designed layout but then the Rotated file is to make it usable on my XXL.
