Dowel Centering Jig

Created by - TysonD

Date Created - 2021-10-17

Last Update - 2021-10-17 23:39:29

Status - published

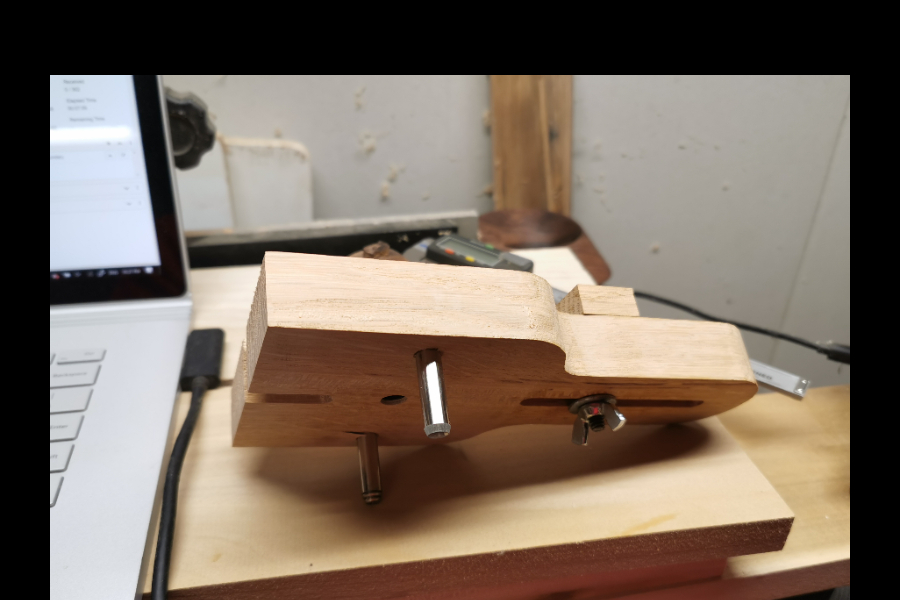

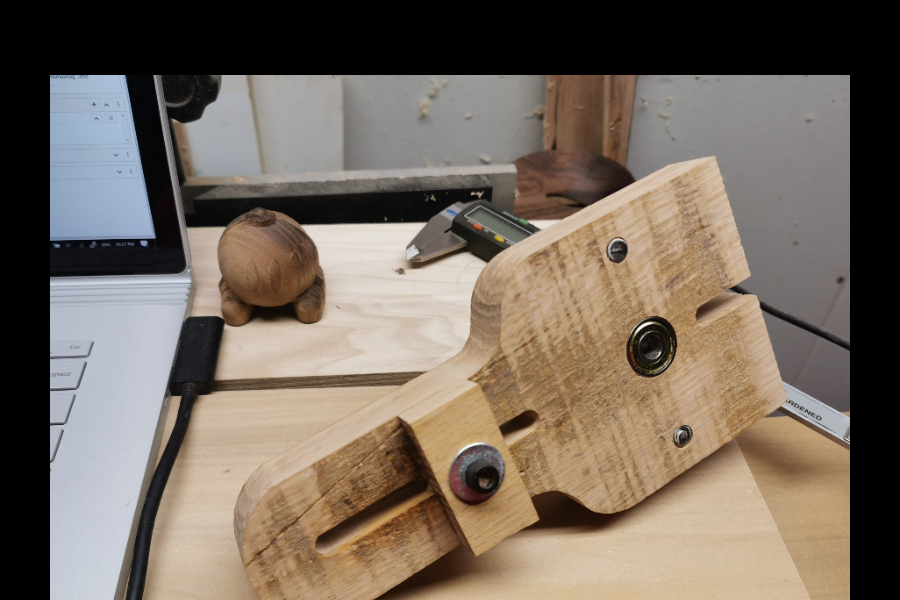

Easily place an 8mm dowels right in the dead center of a face up to 67mm or use the built in adjustable guide to set depth of dowel hole.

(3) 8x22x7mm sealed/shielded bearing
(2) 8x50mm steel round bar/dowel
Wood ;)

Type Length Width Thickness Job Zero
Name Type Tool Feedrate Plungerate Cut Depth
