Type | Length | Width | Thickness | Job Zero |
---|
Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
---|
Filename | File Type | File Size | |
---|---|---|---|
Sunfish Fan | c2d | 732.90kB |

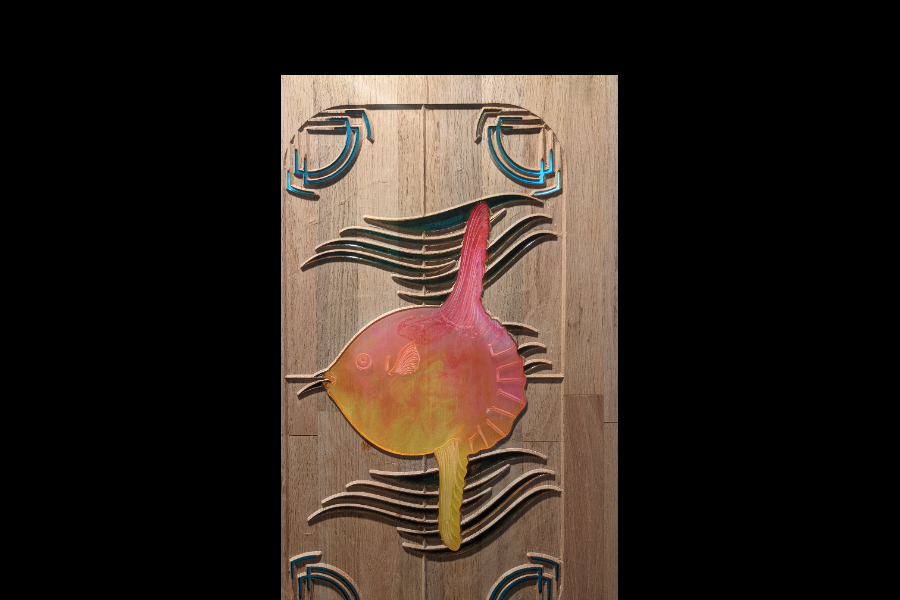

Step 1: Pocketed out the fish, and corner flourishes leaving 1mm of wood as a backing. Then fill with epoxy.
Step 2: Vcarve (60 degree for the added depth) out the wave_2 patterns knowing that they won't get revealed on the backside. Then fill with epoxy. Vcarve (90 degree for the narrow path) the inner details on the epoxied sunfish with a shallow depth.
Watch out for epoxy seeping through.
Step 3: I broke the design up into 4 quadrants to create a small ridge the ran top to bottom, and another left to right to give it a look of being held together with metal (as stained glass is). I Advanced Vcarved the four sections, and plan to paint the background a deep sea blue with black or copper for the "metal" ridge.
Step 4: I flipped the bad boy over and pocketed out the epoxy allowing light the shine through (too lazy to re-measure everything, so I just made a large rectangle. I finished it all off with a quick sanding with the orbital sander, 80 grit to help diffuse the light, and to remove any over flowed epoxy. I did my best to stay away from the display side though (didn't want to have to re-polish
See: https://community.carbide3d.com/t/community-challenge-24-elements/35527 for more details and pictures.
