Yu-Gi-Oh! Board
Files

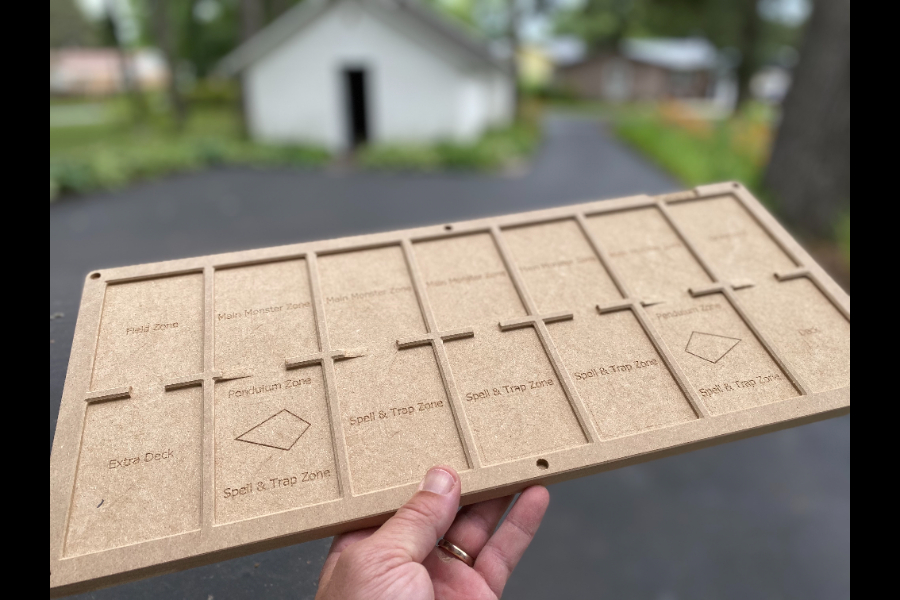

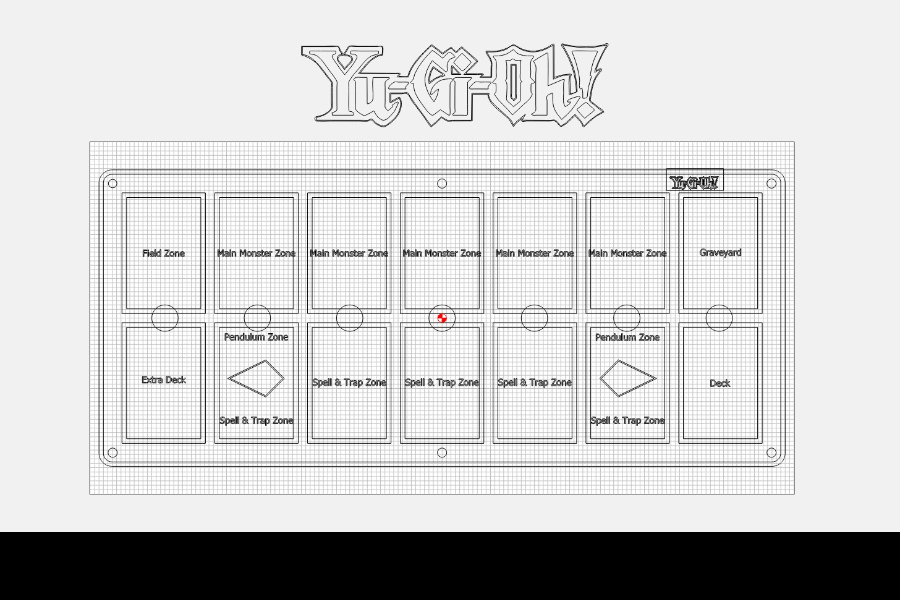

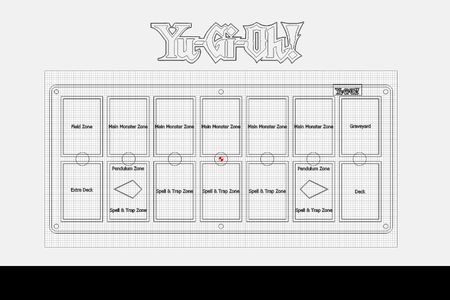

Yu-Gi-Oh! Dueling game board made from MDF. All slots are labled and pockets chamfered for a nice smooth feel. 2 Boards can be magnetically attached with pockets around perimeter.
Notes
Material and Cutter Requirements:
- 10" x 20" (254mm x 508mm) MDF - 1/2" (12mm) Thick.
- 201 (1/4" square endmill)
- 301 (90° V-Bit)
- 102 (1/8" square endmill)
- 502 (45° PCB Engraver)
.
.
Total Run Time: 55 minutes
Althoug the MDF worked very well to show all the fine engraving details, its lifespan as a playing board will not be great. The MDF was sealed and sanded a few times to make it ultra smooth.
.
If I were to cut this again I would probably use a hardwood like walnut and possible redesign the engravings to be a bit larger so they could be epoxy filled.
