Split-Flap Jig by McuOnEclipse

Split-Flap Jig

Created by - McuOnEclipse

Date Created - 2021-07-31

Last Update - 2021-12-05 20:04:14

Status - published

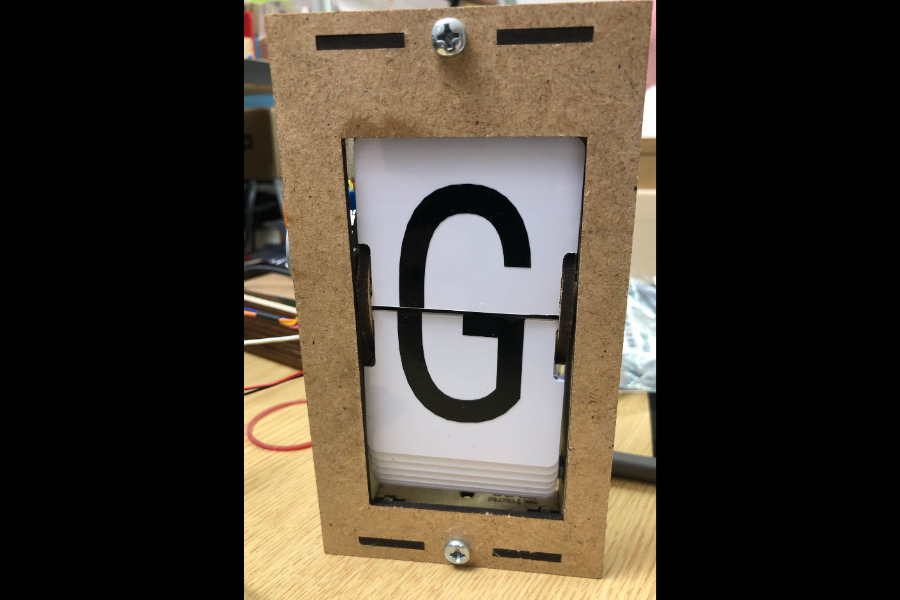

Jig to cut flaps for SplitFlap flaps, cutting 0.7mm PVC cards for the split-flap display by Scott Bezek (https://github.com/scottbez1/splitflap)

Tags

Download Project

Type	Length	Width	Thickness	Job Zero

Name	Type	Tool	Feedrate	Plungerate	Cut Depth

List of Files
	Filename	File Type	File Size
	CutCardHolder	c2d	143.27kB

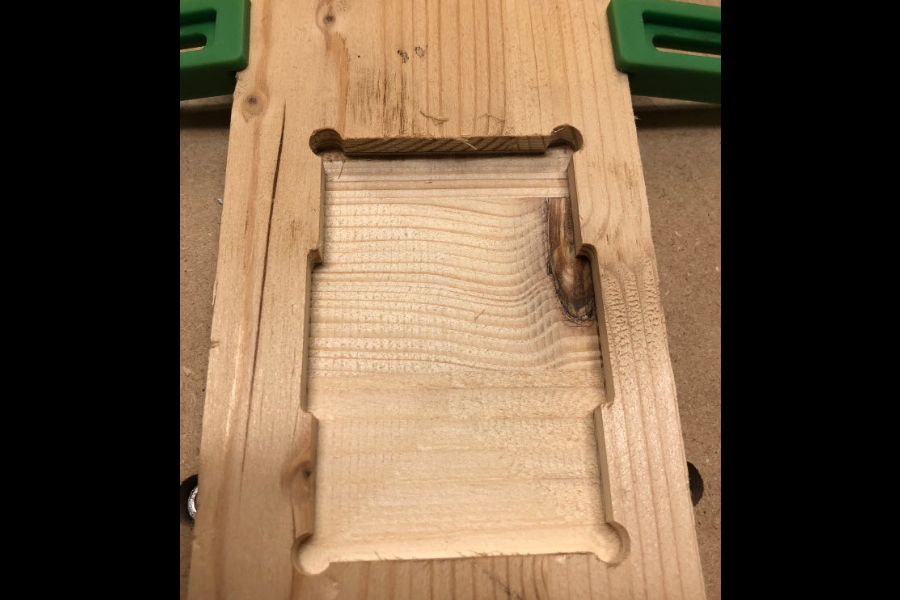

cut the jig into a piece of scrap wood. The current cut depth is set to hold 9 cards

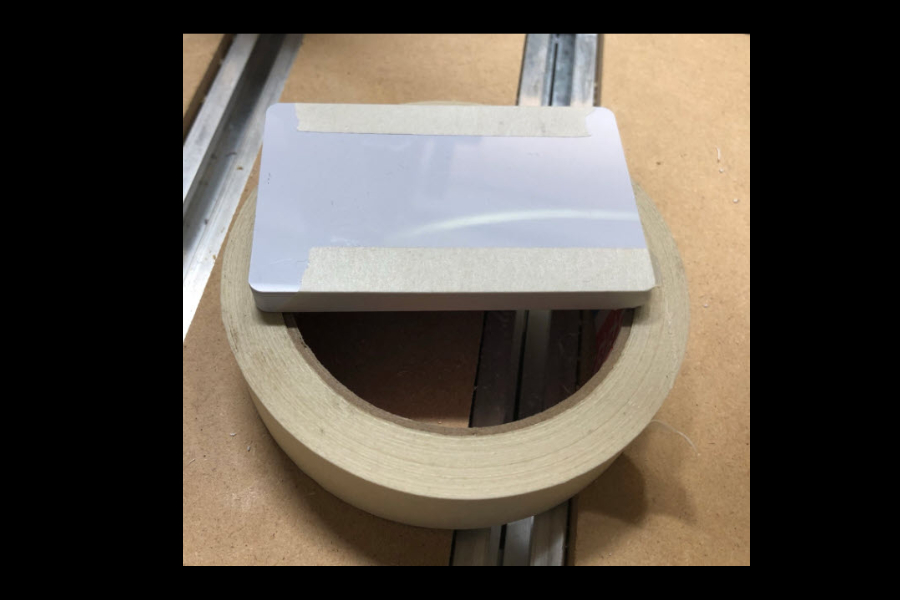

bundle the cards and secure them with painters tape on the sides

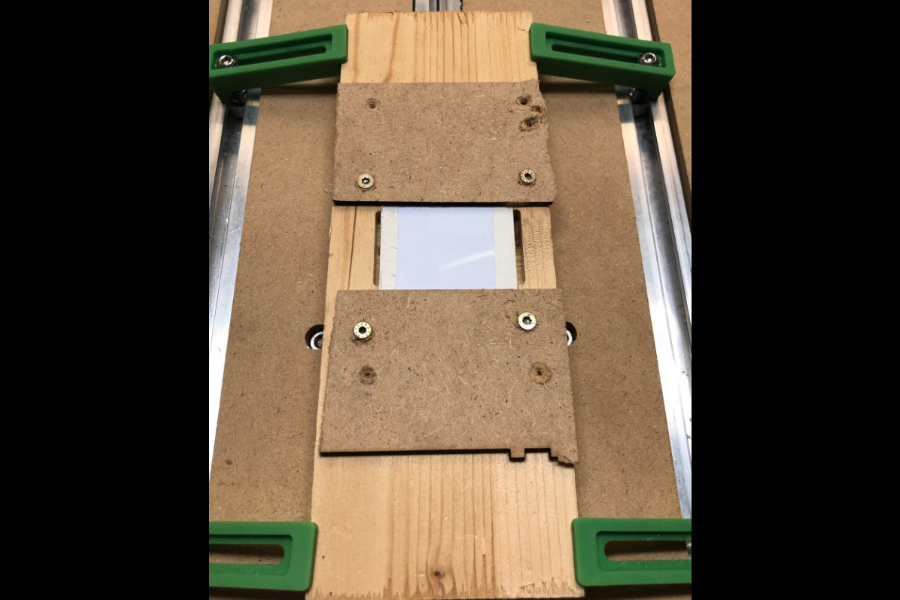

secure the cards from the top (I screwed scrap pieces of MDF)

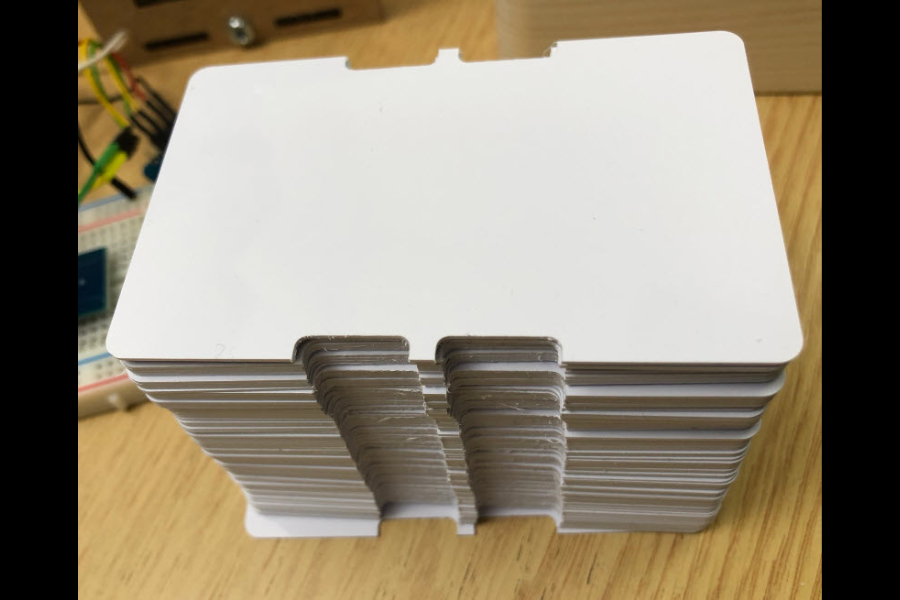

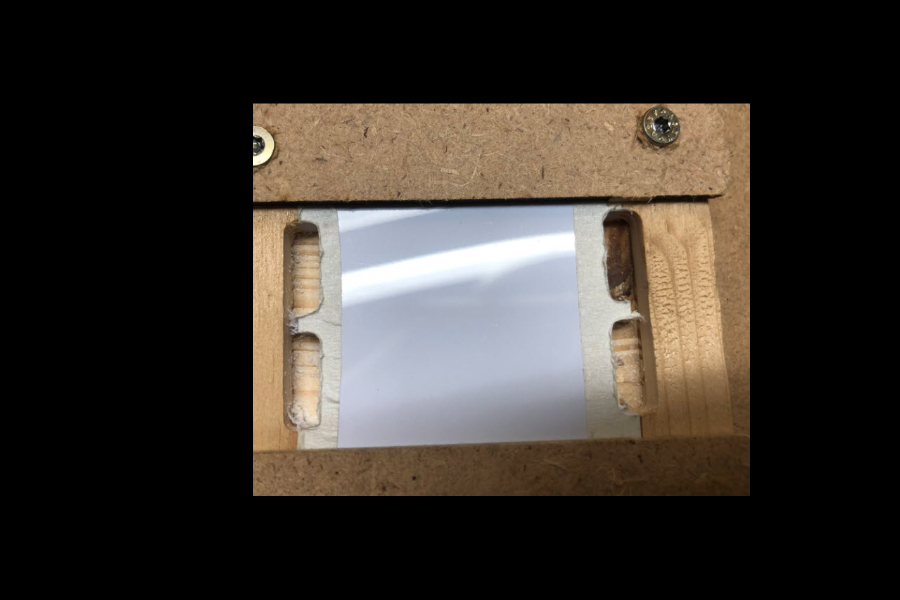

cut out the four holes on the side
the same jig (or better: create another one) can be used to fix a ruler for cutting the cards with a knife

Have you made this project?

If so, upload a photo to show the author some love and let everyone know what your finished version looks like!

You must be signed in to upload a photo.

Comments

edwardrford posted 3 years ago

Great project Erich! Can't wait to see a video of the complete project. Is there a limit to the number of sections you can chain together?

McuOnEclipse posted 3 years ago

Hi Edward! The 'classic' hardware made by Scott can drive up to 12 modules (3 expansion boards with 4 modules each). I'm planning to build my own electronics board which has clusters of units (probably 4) interconnected on an RS-485 bus. Similar to the MetaClockClock project I have done (clock made of 'analog clocks'). Currently I have a single unit running, will extend it first to 4.

McuOnEclipse posted 3 years ago

Added a video of the first 4-unit built.

edwardrford posted 3 years ago

Thank you for posting the video! This is such a great project.
