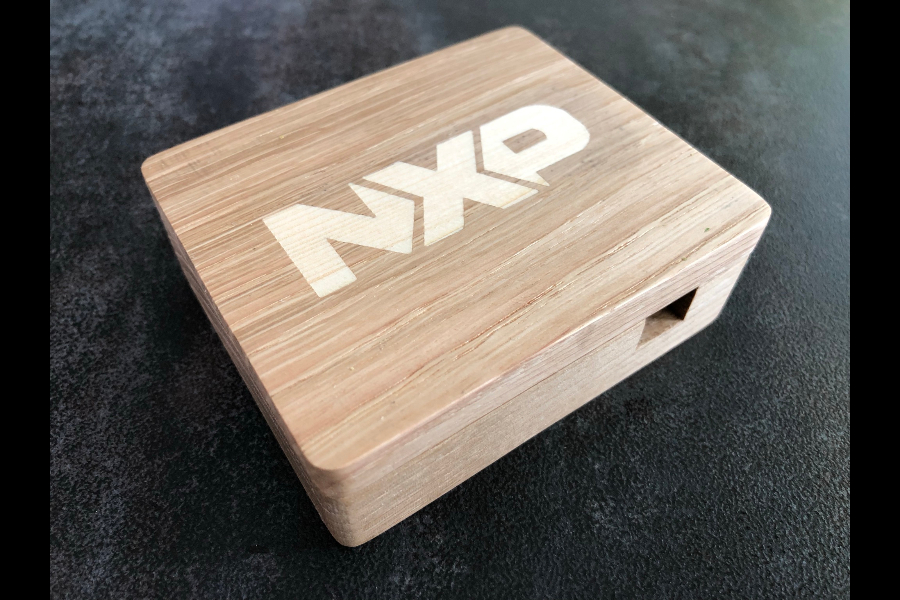

Small box (95x80mm) for a special NXP board/PCB. Cut out of oak wood with a pine wood 'NXP' inlay. Box created with Carbide Create, inlay with F-Engrave.
Hex screws plus magnets keep the lid in place.
| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| NXP Box | c2d | 94.89kB |
I used a 20 mm oak for the bottom part and a 10 mm one for the lid and inlay.

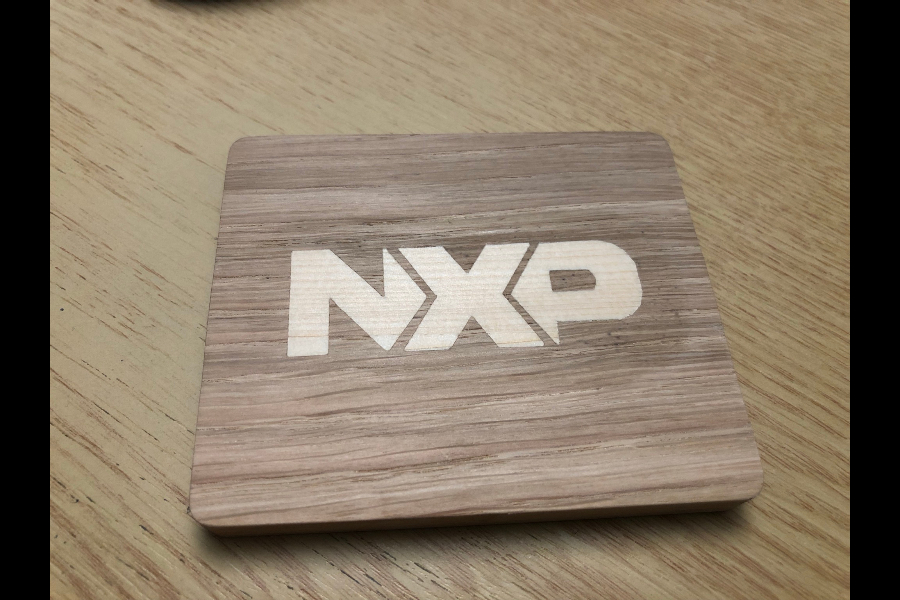

Used F-Engrave (or something else) for the inlay (use any dxf/image). Pocket depth is 2 mm for the inlay.
Cut out the two parts, then engrave the pocket to the lid (use 'center' as the origin to easily center the image.

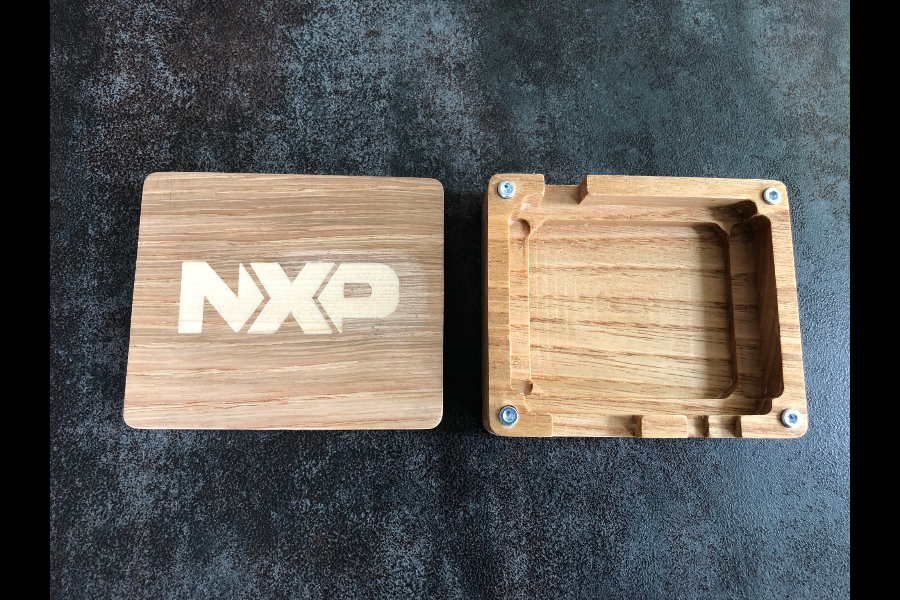

The bottom part uses 4 hex screws (glued into the pockets) as counterparts for the magnets.

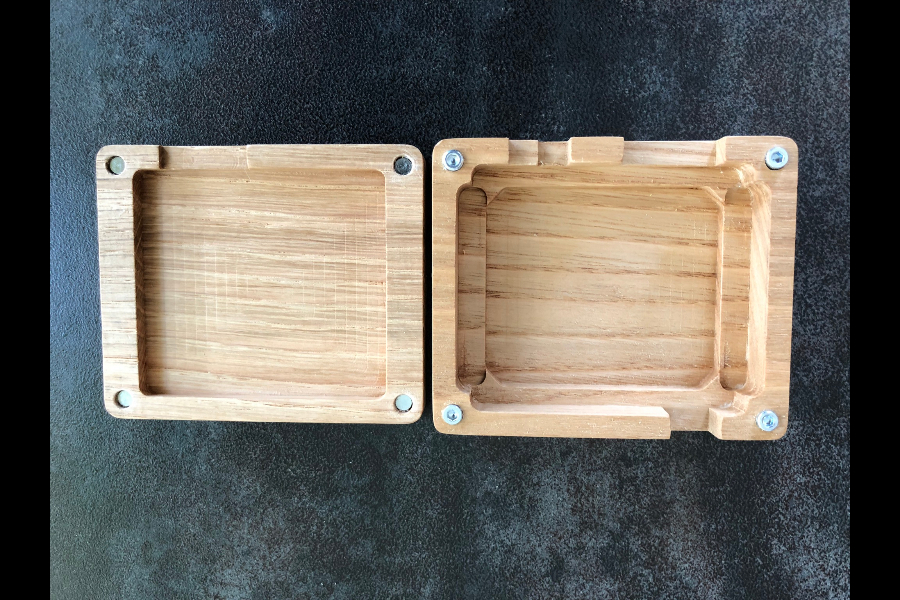

Magnets (2x5 mm) are glued into the lid pockets.
