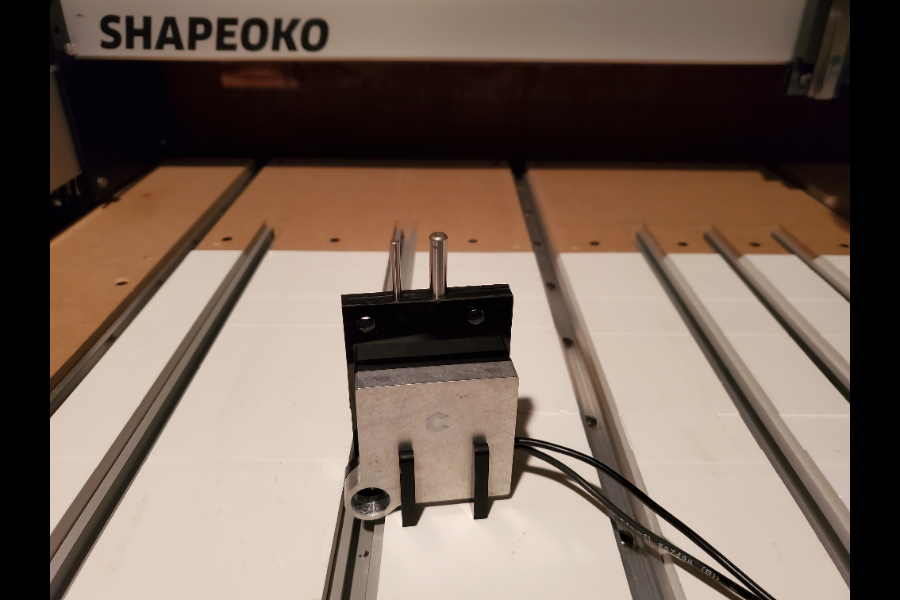

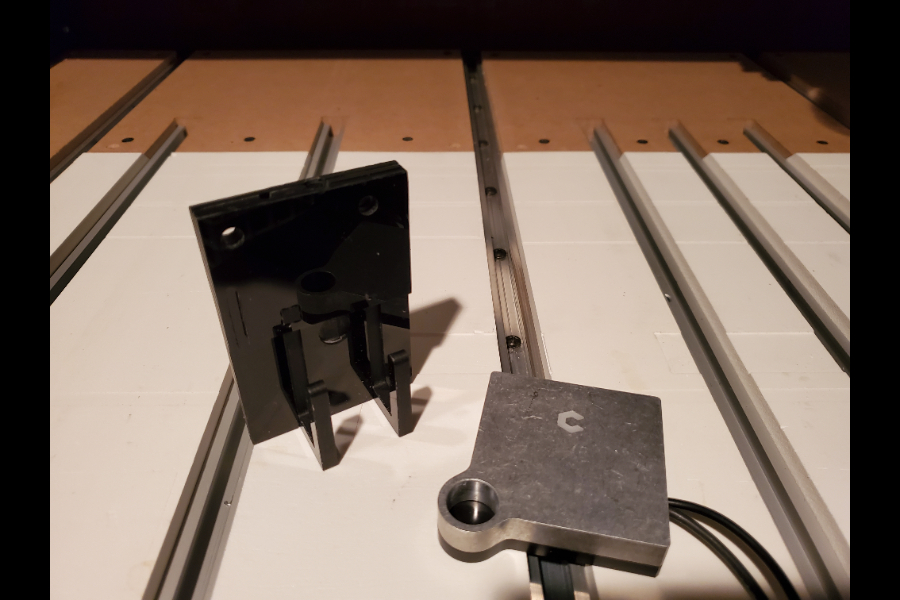

An acrylic holder for the BitZero v2, its precision probing pins, and (optionally) a magnet button cover for the BitSetter.

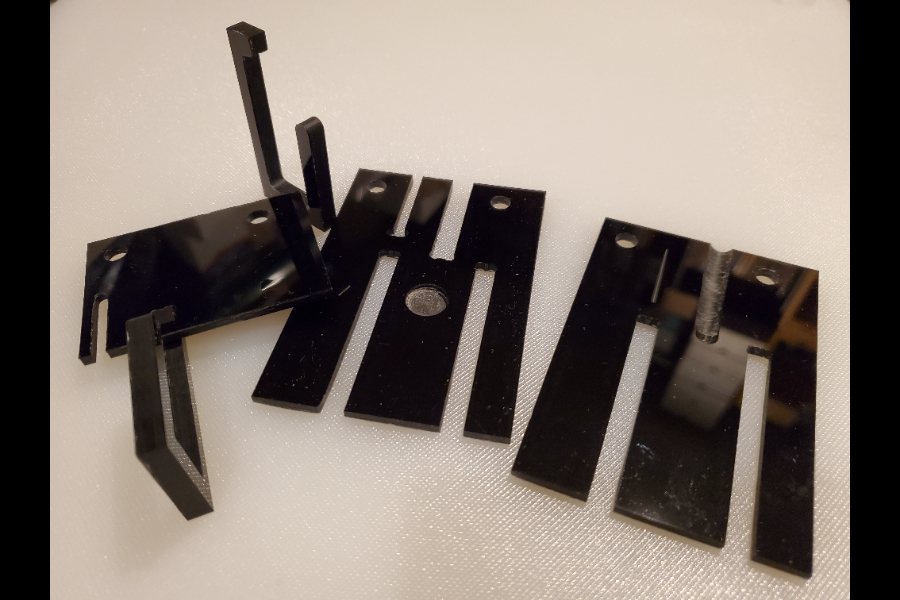

cut of 3mm and 6 (actually 5.5mm) acrylic:
https://shop.carbide3d.com/collections/materials/products/acrylic-sheet-3mm-qty-5
https://shop.carbide3d.com/collections/materials/products/acrylic-sheet-6mm-qty-5

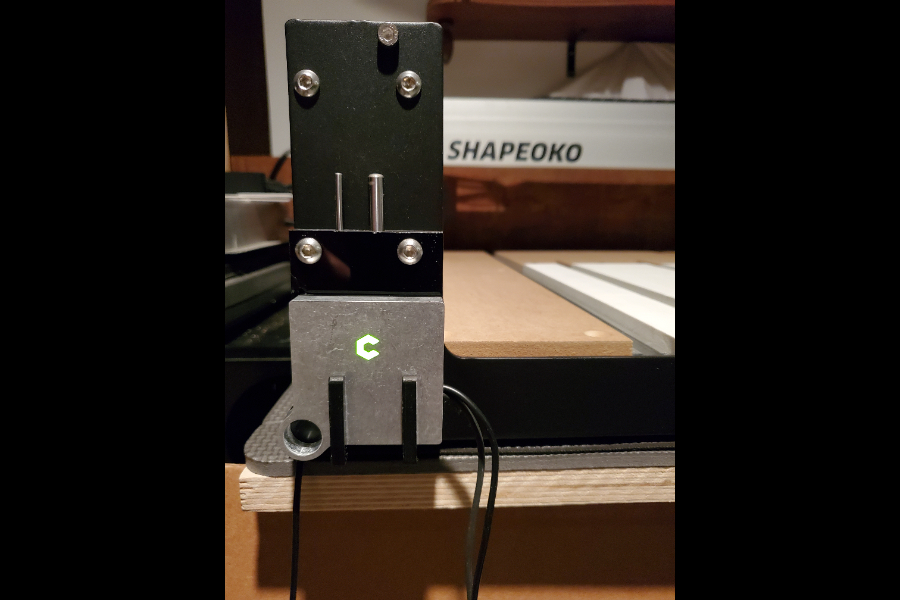

It has 3 layers, and is friction fit so that no adhesives should be necessary. Bolting on to the lower hardware on the left endplate of your machine, it will be necessary to source longer M6 BHCS screws to secure everything.
Discussion at: https://community.carbide3d.com/t/bitzero-v2-holder/29974
