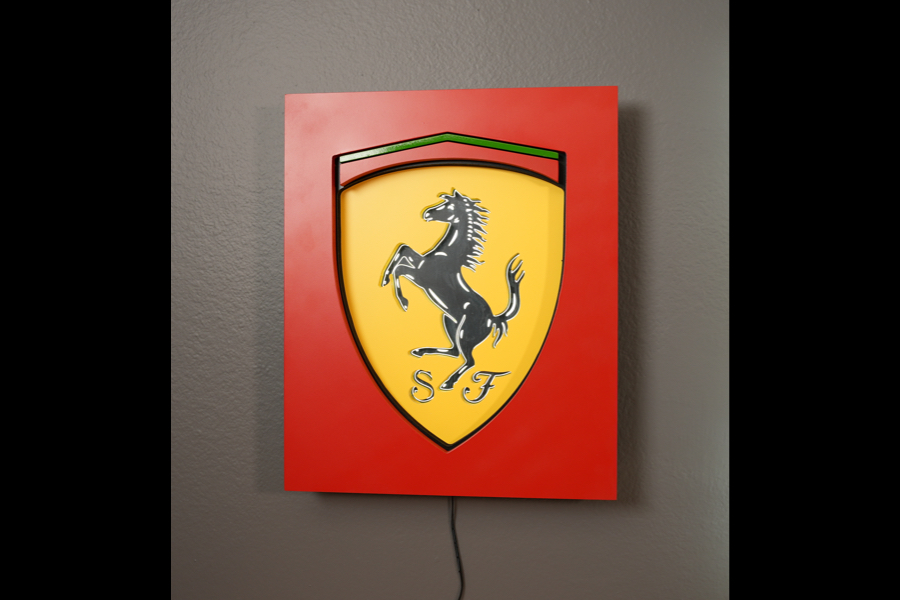

Ferrari Layered LED Sign
From the Carbide 3D youTube Channel to your machine at home. The Scuderia Ferrari Shield is the perfect logo for creating a layered wall sign. This is a skill builder. Overlays, overlaps, drag engraving acrylic and hiding LED's inside the project. These files contain the 5 layers needed to reproduce the same project Kevin made for Carbide 3D. Once you have the basic structure of these files you can change out the logo to whatever you want. This project will give you skills you can adapt to future projects and products.
Notes
Watch the Video
Get your materials
Cut it and Assemble!!
Materials Used:
1/2" MDF (Lightweight or Standard will work)
12v 5000K or higher LEDs (Link Below)
12v Power Source (Link Below)
1/4" Acrylic
#6 - 5/8" screws (For layer attachements)
#6 - 3/4" screws (For frame attachment)
Wood Glue
Super Glue
Spray Paint (pictured Krylon w/primer)
Nail for wall mount
End Mills Required:
1/4" Flat
1/8" Flat
McEtcher 120 Degree Drag Bit
Tools:
Shapeoko XXL
Drill
1/8" Countersink (I prefer the Amana pictured in the project)
Links:
LEDs w/Power Adapter
https://www.amazon.com/gp/product/B00MHLIFO8/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1
