Clamp Thumbscrews

by pdxcnc · February 11, 2021 tools · 7606 views · 1753 downloads

Clamp Thumbscrews

Files

C2D design1.c2d PNG design2.png PNG design3.png PNG design4.png PNG design5.png PNG design6.png PNG design7.png PNG design8.png PNG design9.png PNG design11.png PNG design12.png

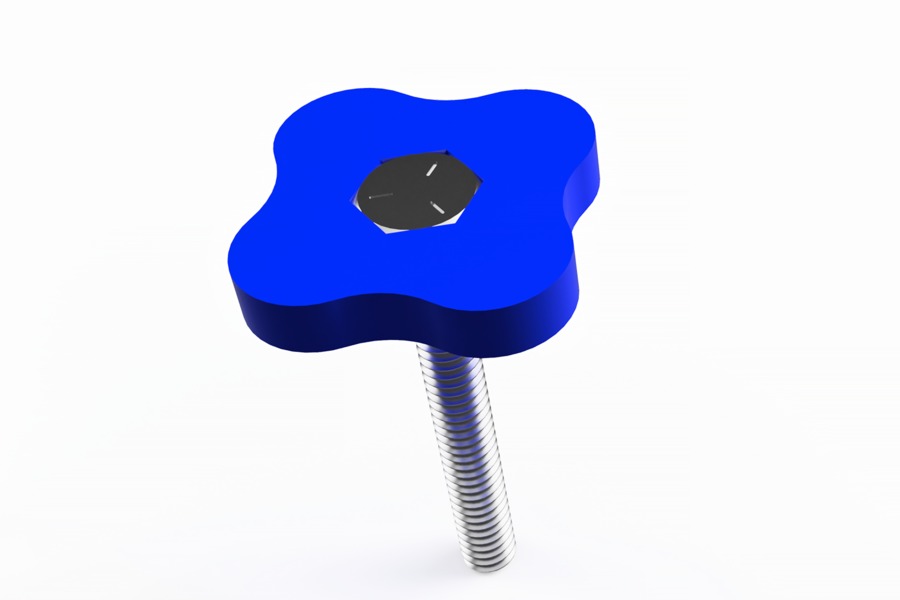

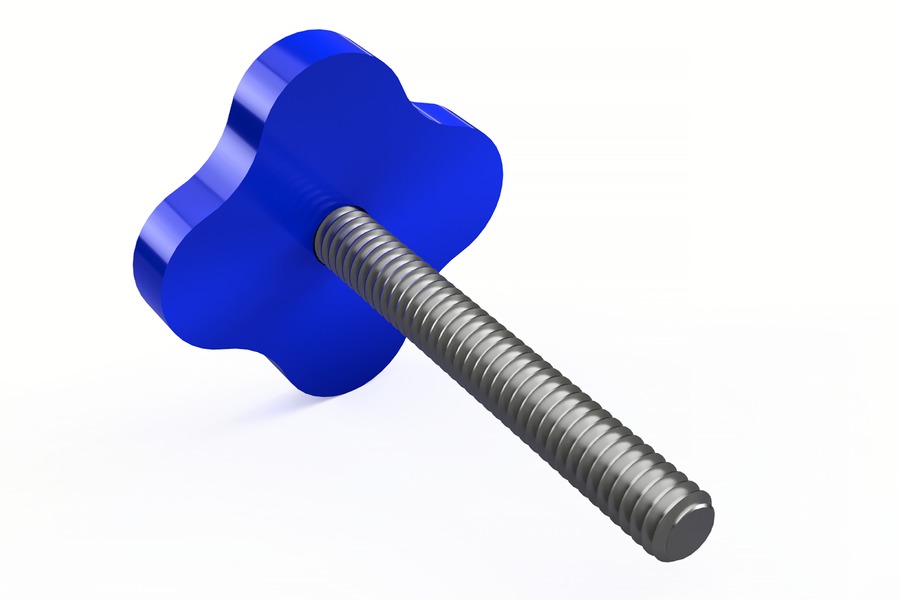

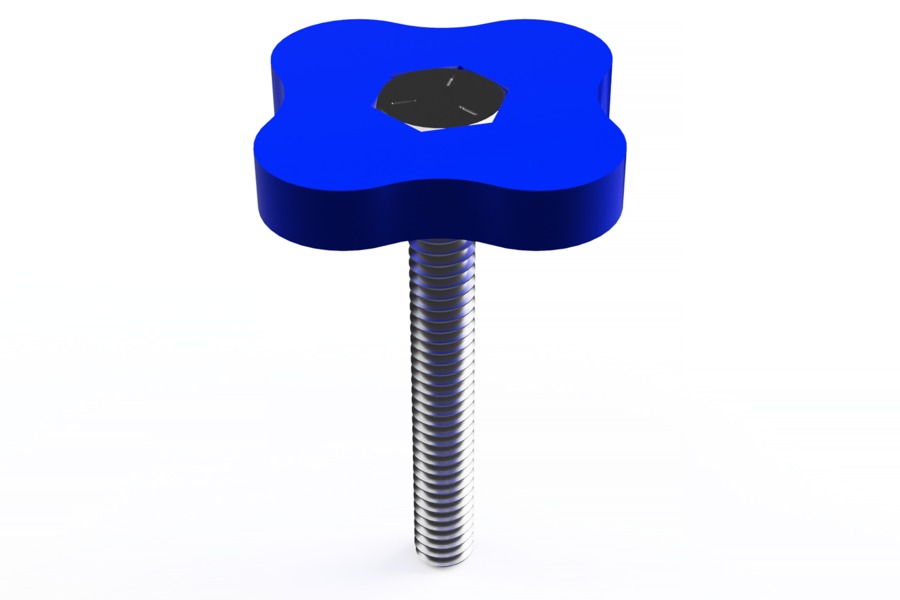

These thumbscrews help make fixturing “tool-less” as you don’t need a socket or wrench but just your thumbs to tighten down your clamps.

Notes

Tools: Use a #102 for all operations.

Stock Needed: 1/4" x 4" x 8" Baltic Birch plywood
