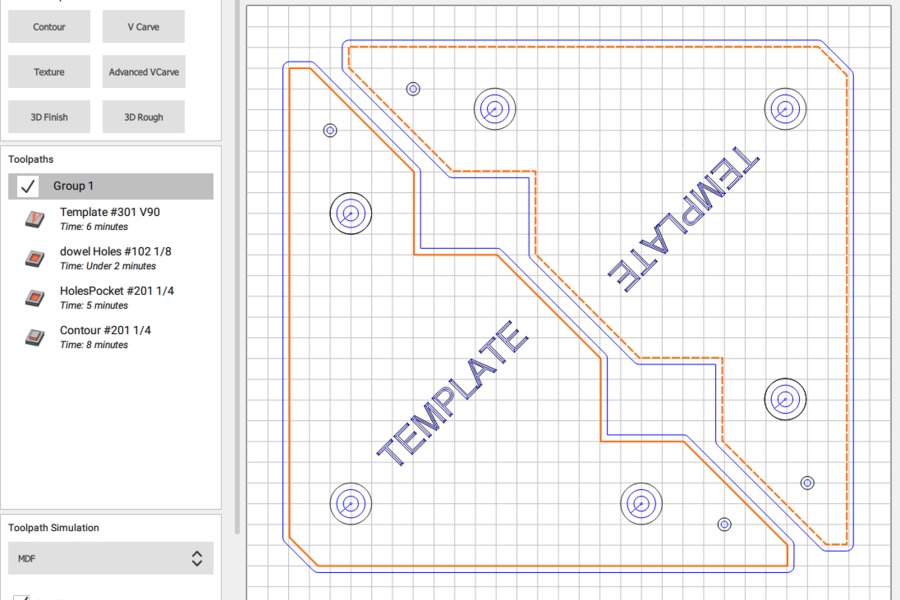

This is a simple project to make assembly jigs. The jigs are to help hold the boards at a 90deg angle using two F clamps. It require a tool change only if you want to keep the text on the clamps. For a better result I suggest to cut two jigs and glue them together for more stability. 1/4" dowel holes to help with glue up alignment.
| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| design_1 | c2d | 805.35kB | |
| design_2 | png | 125.50kB |
The toolpaths are for 1/2" stock but can be changed easily using Carbide Create.
