French Cleat System

Project By: bpk9p4


frenchcleat tools organization

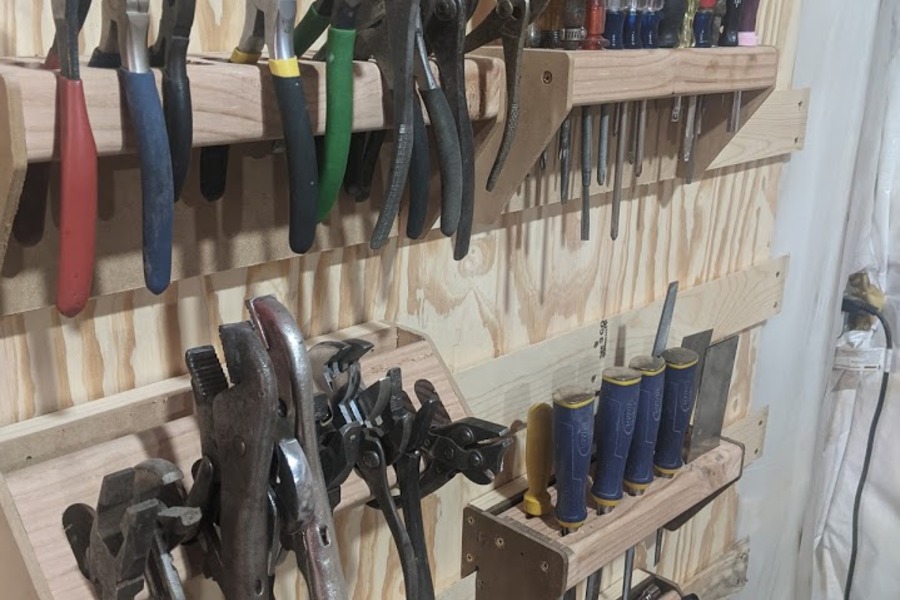

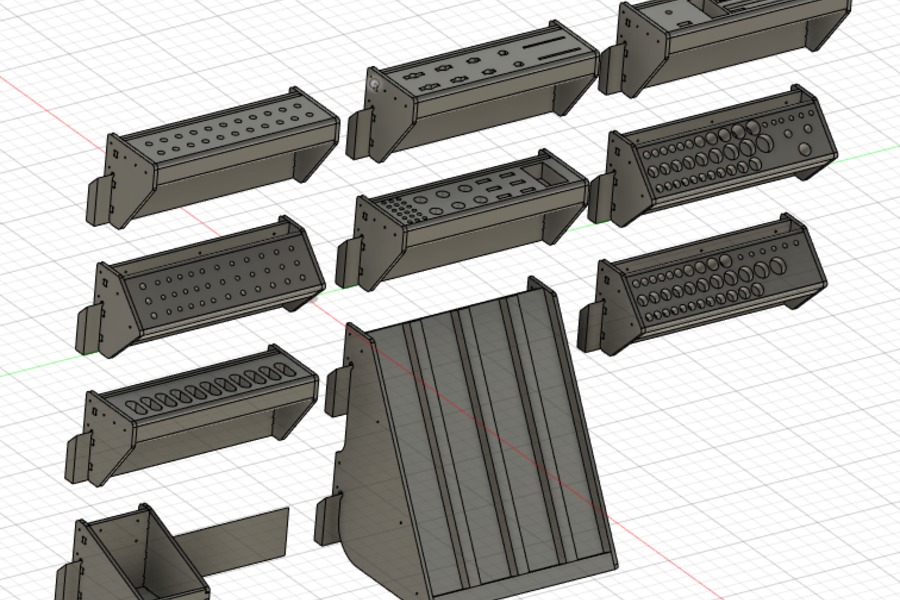

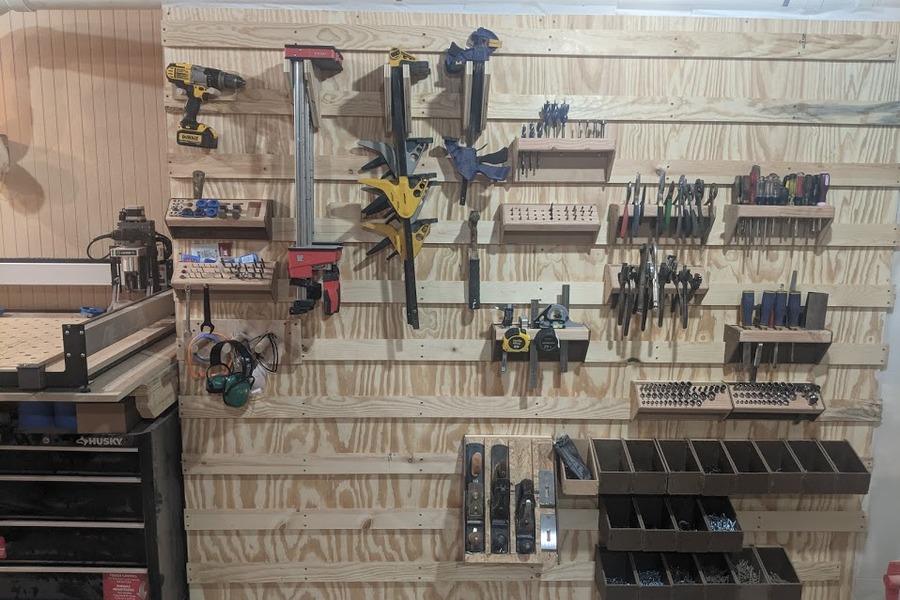

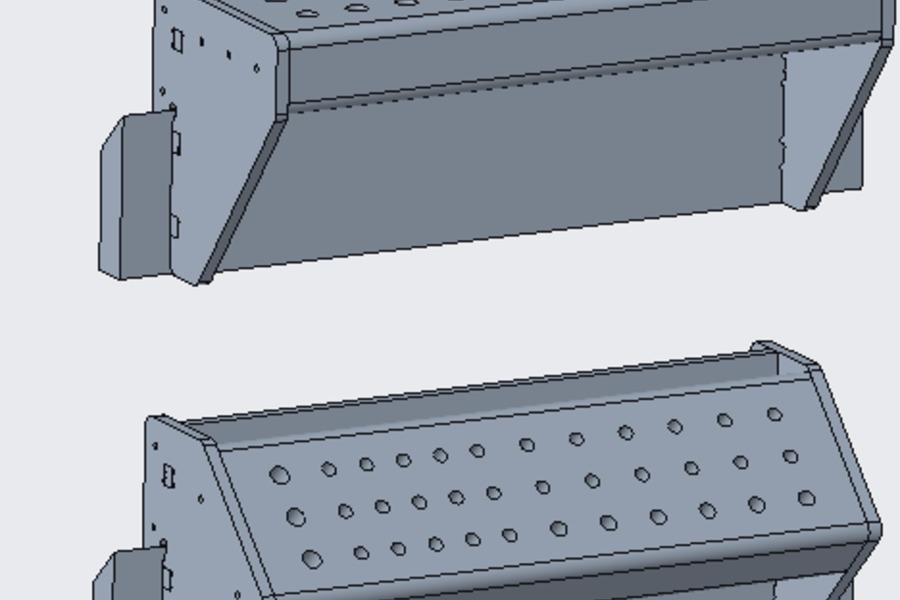

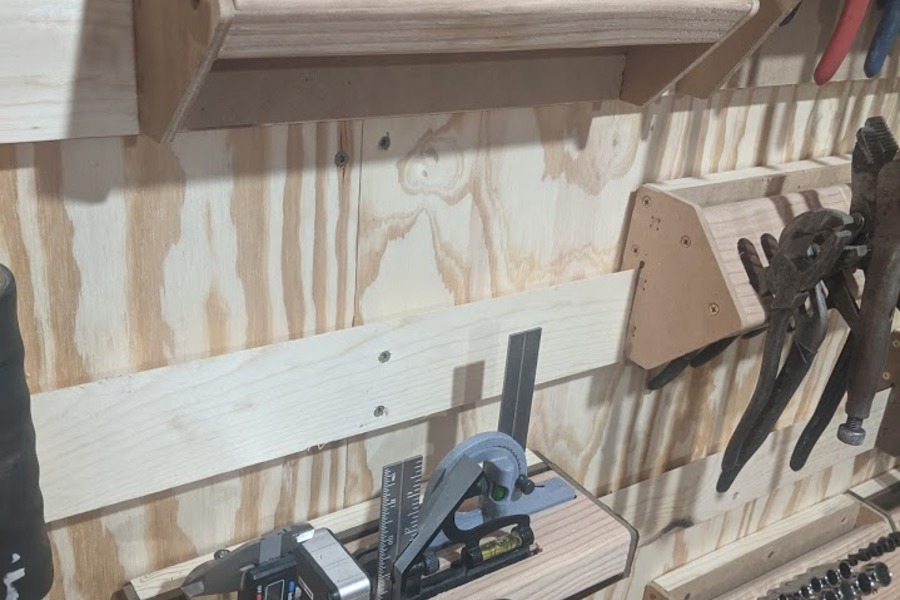

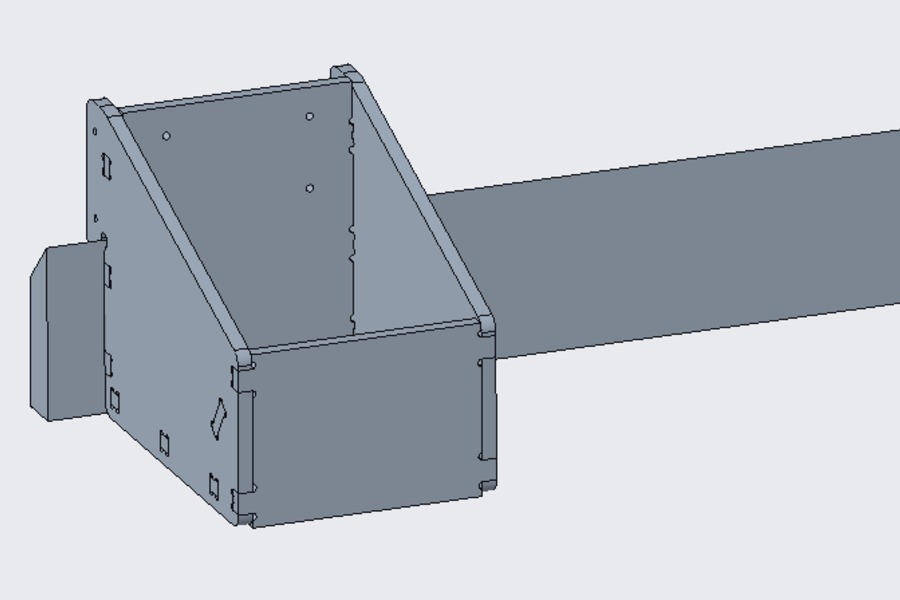

Over the past couple months I have been cleaning up my shop and I created a French cleat system to store my tools and hardware using my Shapeoko 3 XXL. For reference a French cleat system is a system that allows you to mount objects to your wall and easily move and arrange them. I thought it would be nice to have a generic French cleat bracket where I could make custom 2x4 inserts for my tools. I came up with two designs at flat top and a 45 deg top. All of the brackets are tabbed and slotted

Files

Type Length Width Thickness Origin
Name Type Tool Feedrate Plungerate Cut Depth

The author of this project has not posted a video.

Leave a comment and let them know you would like to see one!

Over the past couple months I have been cleaning up my shop and I created a French cleat system to store my tools and hardware using my Shapeoko 3 XXL. For reference a French cleat system is a system that allows you to mount objects to your wall and easily move and arrange them. I thought it would be nice to have a generic French cleat bracket where I could make custom 2x4 inserts for my tools. I came up with two designs at flat top and a 45 deg top. All of the brackets are tabbed and slotted to allow for easy alignment and assemble without clamps.

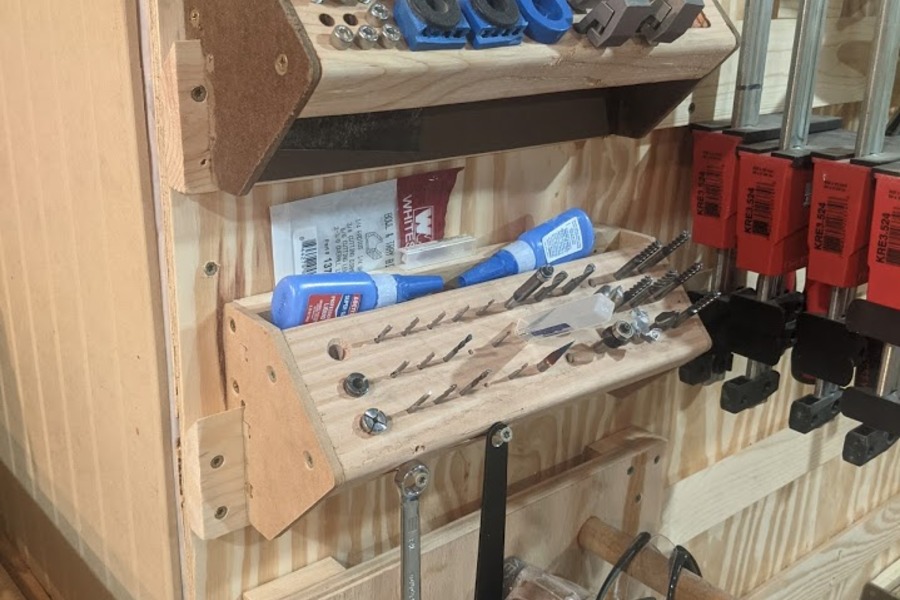

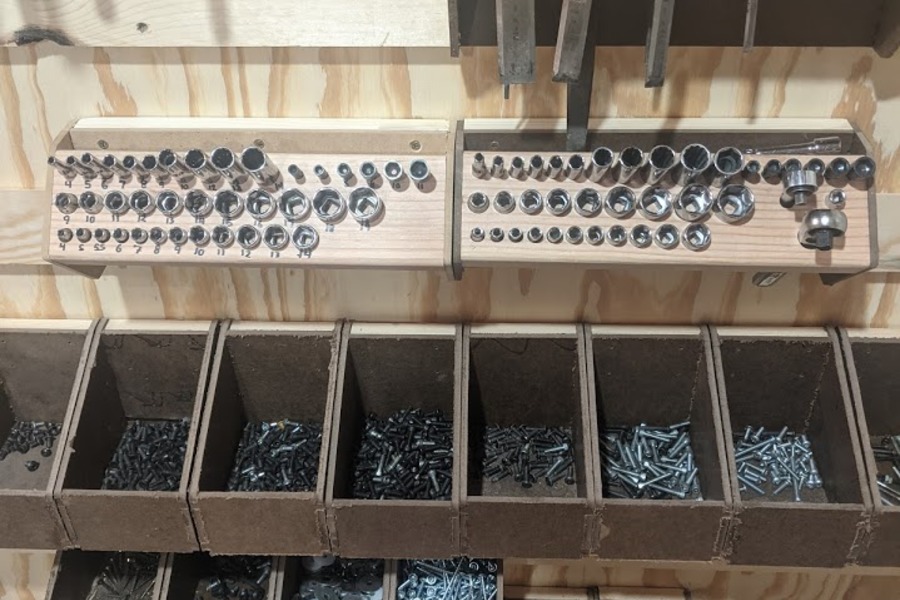

I also wanted a way to organize my bolt box of misery. I came up with a small box with a French cleat attached to the back. This has worked out great. I have finally been able to find the correct hardware without searching for hours

Lesson Learned: All of my brackets have been made out of 0.25 mdf. When cutting the MDF I found that using a down cutting endmill makes for much better cut quality. The first couple boxes I used up cutting bits and had lots of fuzzy edges. Once I switch to a down cutting endmill the cut quality was much better

Overall i have been very happy with this project. it is great building it over time and being to move my tool holders around to optimize the organization. Just a great system that grows with you over time
