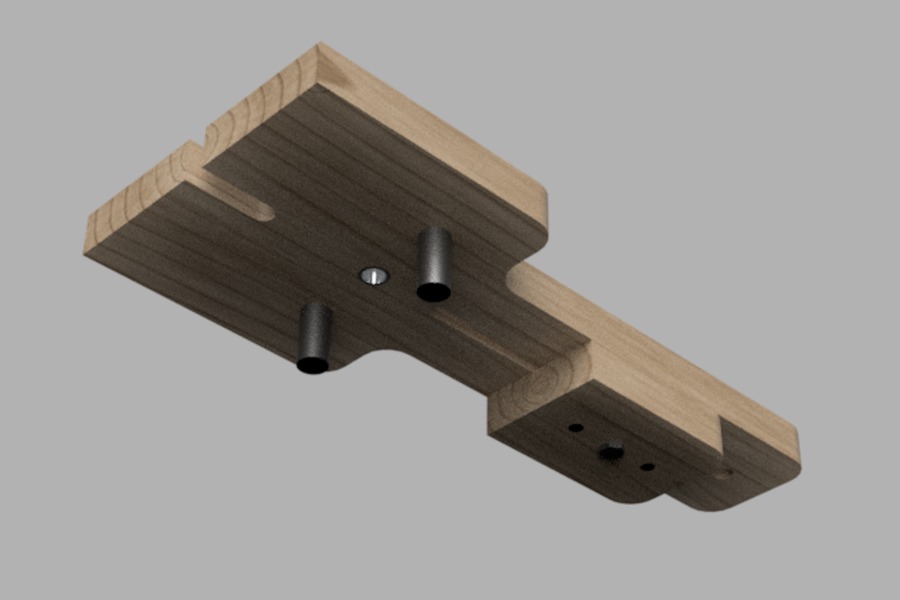

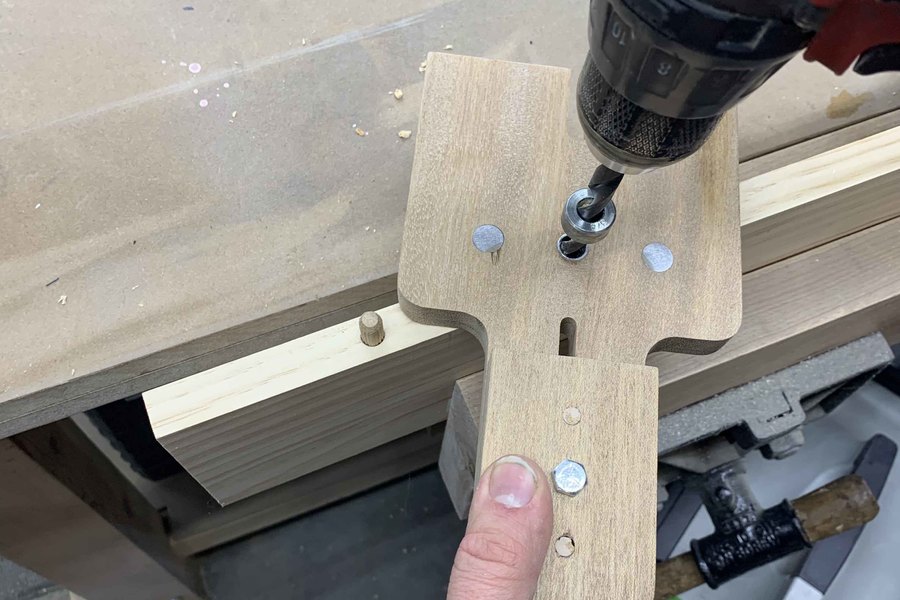

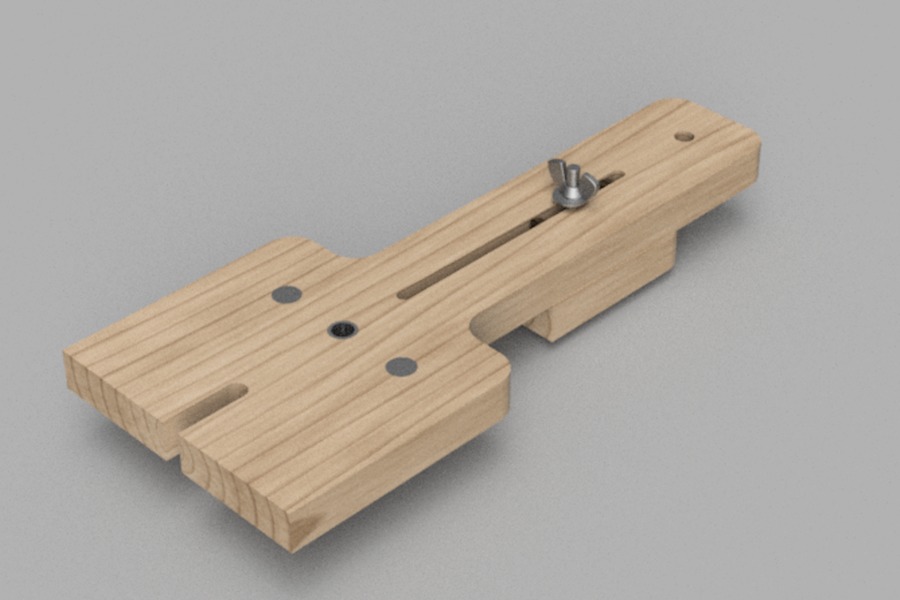

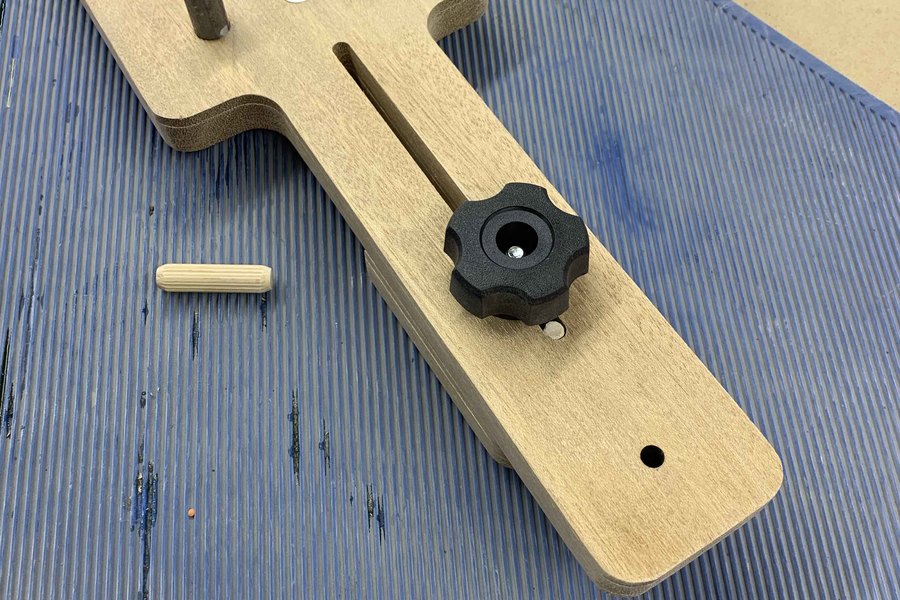

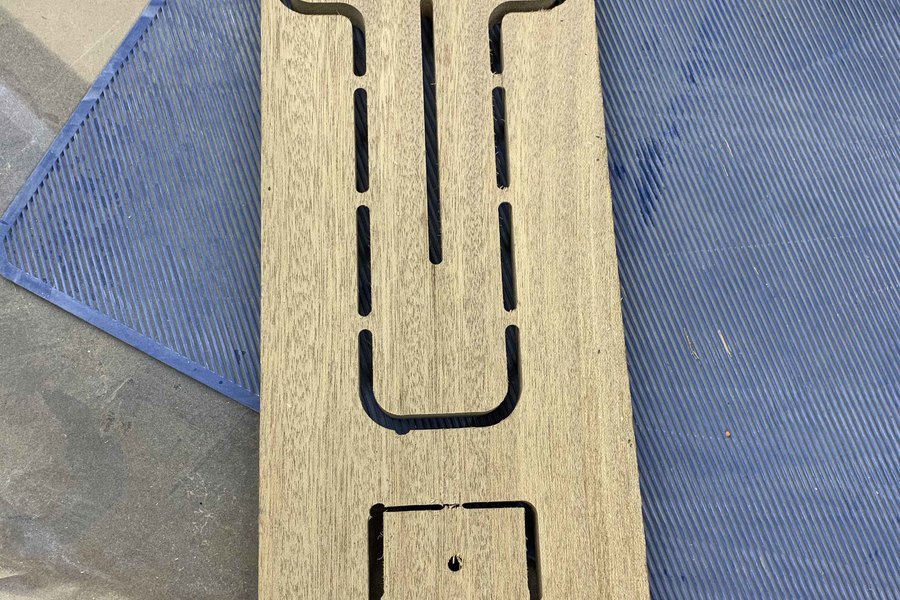

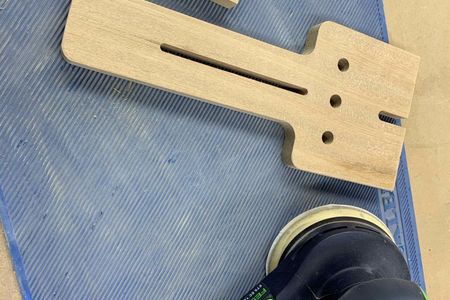

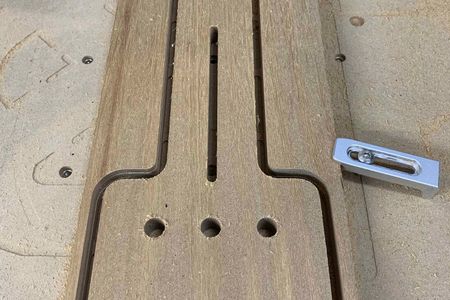

This is a 3/8" dowel jig, used for centering dowel holes on the edge of boards and a stop for offsetting on the face of boards. You need 1/4" dowels, 1/2" metal dowels and a 1/4" bolt and knob in addition to a scrap piece of hardwood, I used beech
| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| design_1 | png | 302.85kB | |
| design_2 | png | 627.35kB | |
| design_3 | png | 1.30MB |

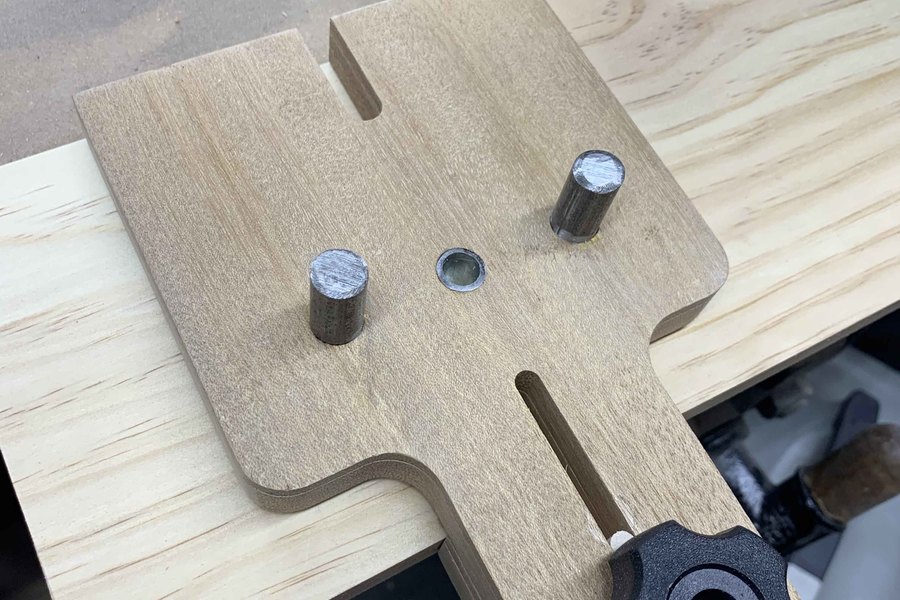

Bushing should be 3/8" inside diameter which would work with a 1/2" hole but may vary on the bushing you buy.

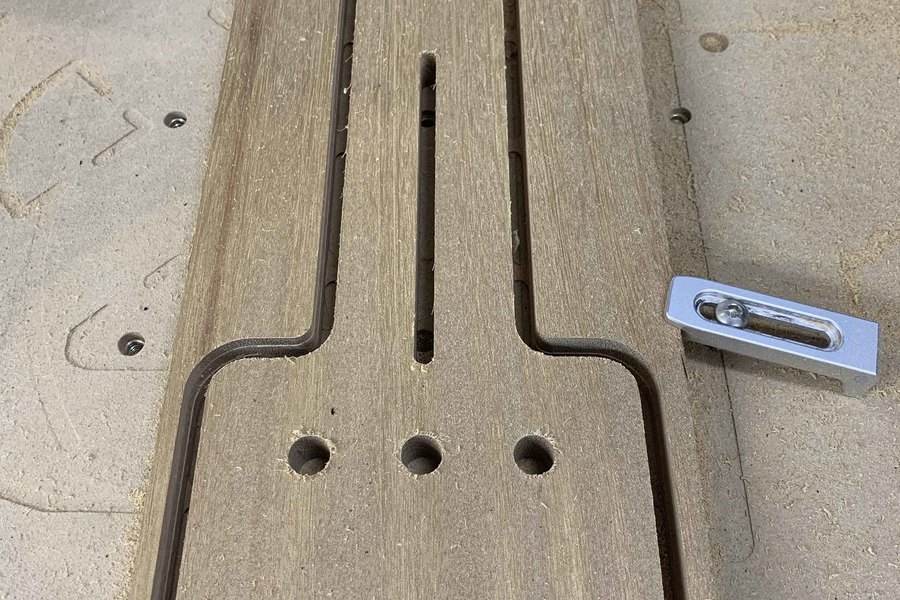

Speeds and feeds were effective with the beech, maybe a little fast but if you had a softer wood it would be perfect. I adjusted while machining to 80% on the beech would and it sounded perfect.
