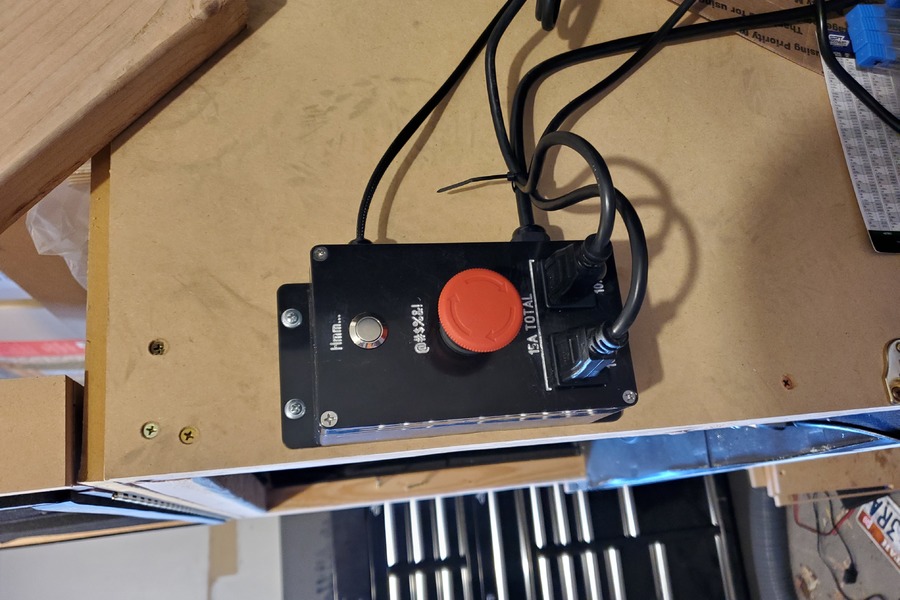

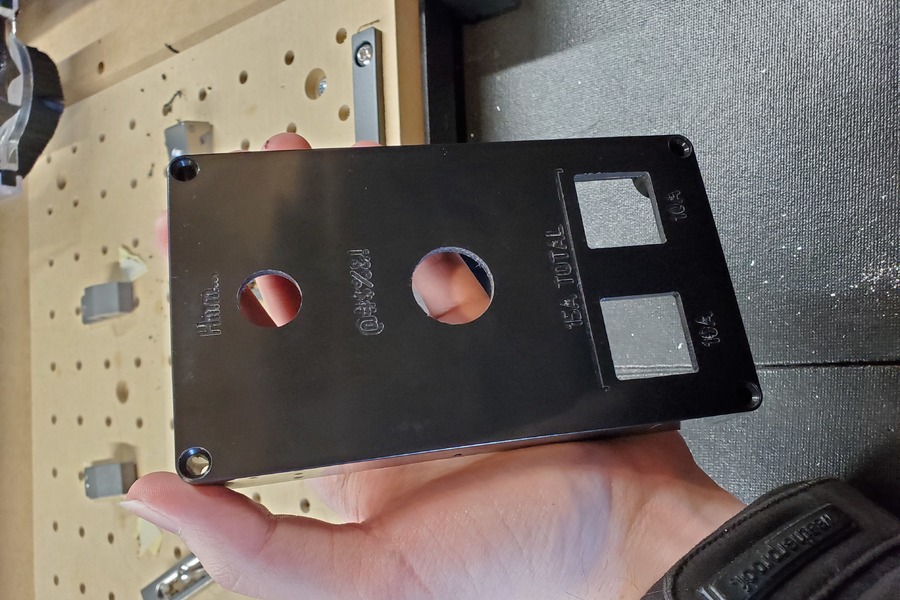

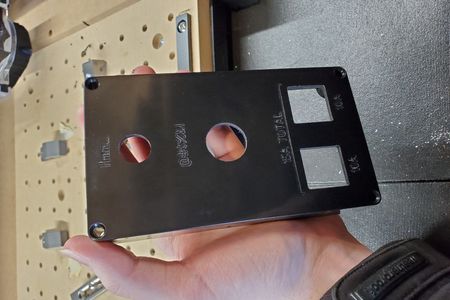

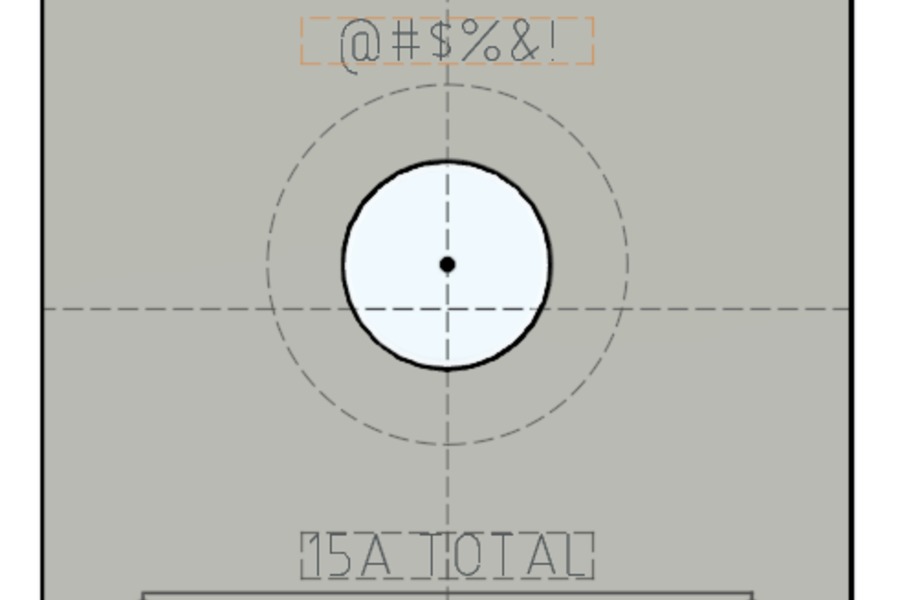

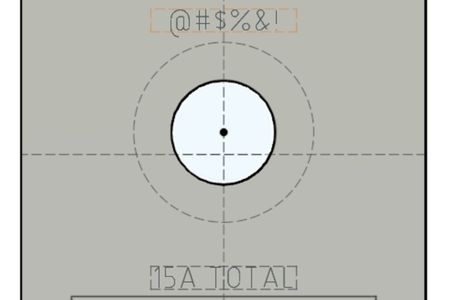

A box with both a hardware pause button and two outlets connected to an e-stop designed for a Shapeoko 3. See forum for files and pictures. The upload would not work for me here.
https://community.carbide3d.com/t/community-challenge-15-2019-2020-edition/27304/28?u=nwallace
| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| design_1 | png | 49.81kB |
I used an electronics project box, a couple panel mount outlets, a two channel NC e-stop and a momentary switch. All from Amazon. See below for links:
https://www.amazon.com/dp/B006YZ7DJQ/?coliid=I3HL9QLGYR4MZF&colid=1OVW8S142RFOJ&psc=1&ref_=lv_ov_lig_dp_it
https://www.amazon.com/dp/B0036ZA94S/?coliid=I28DU8WYOMHS4E&colid=1OVW8S142RFOJ&psc=1&ref_=lv_ov_lig_dp_it
https://www.amazon.com/dp/B089K35H7R/?coliid=IIAFIBG79TKC9&colid=1OVW8S142RFOJ&psc=1&ref_=lv_ov_lig_dp_it
https://www.amazon.com/dp/B07NXPPKDZ/?coliid=IPDFF9J33COOO&colid=1OVW8S142RFOJ&psc=1&ref_=lv_ov_lig_dp_it
https://www.amazon.com/dp/B07R8PTTDX/?coliid=I2OCKSZFSKP68N&colid=1OVW8S142RFOJ&psc=1&ref_=lv_ov_lig_dp_it
https://www.amazon.com/gp/product/B07KFCGFYF/ref=ppx_yo_dt_b_asin_title_o08_s00?ie=UTF8&psc=1
https://www.amazon.com/gp/product/B001OOMN88/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
