80 mm Spindle Mount Mist/air Adapter

Project By: g4hsean


80mm spindleadapter

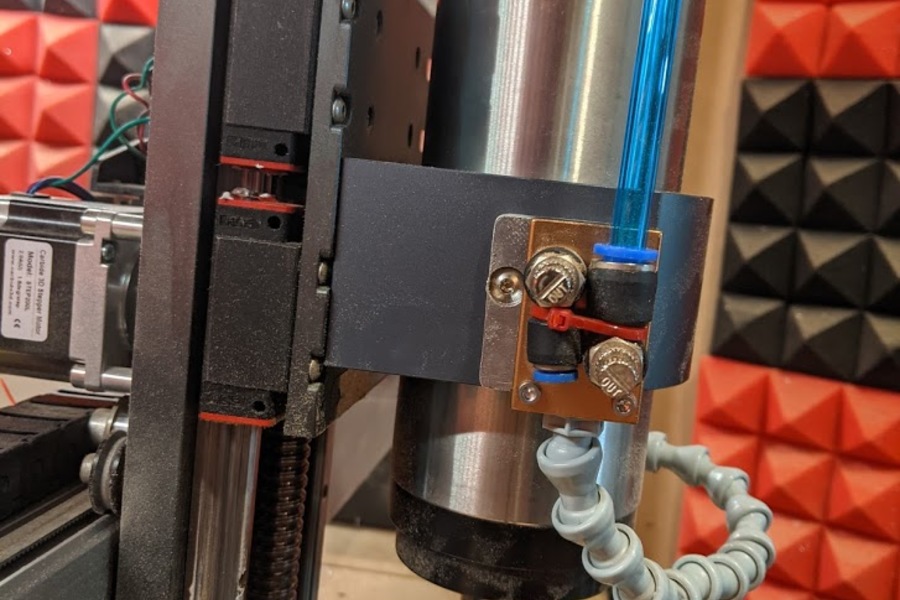

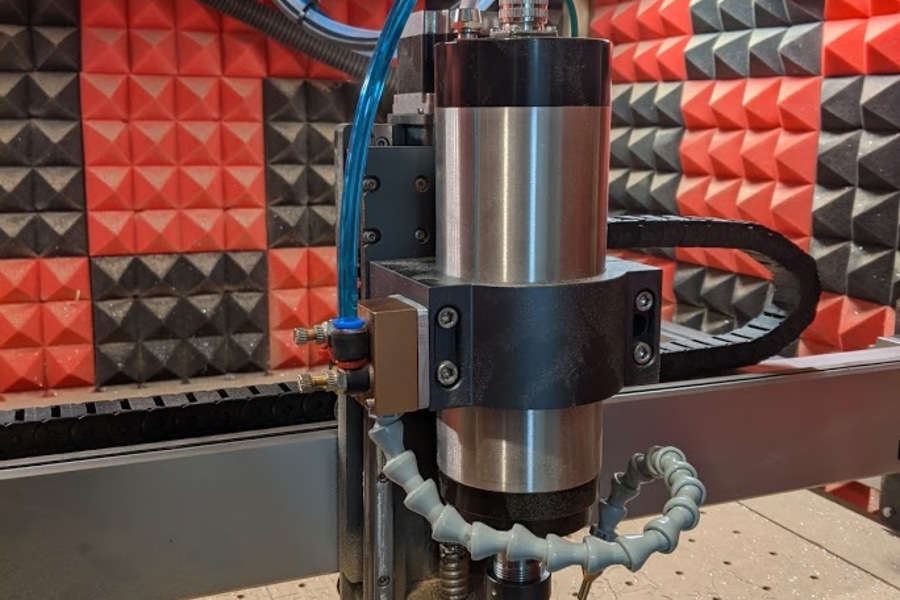

This project creates a conversion plate to convert from the two M5 holes included on the side of the 80 mm spindle mount to a cheap Amazon mister.

note: I used the two M5 screws from the bottom of the tram plate that look like: https://i.ebayimg.com/images/g/NbYAAOSwmZdZjumy/s-l1600.jpg

mister: https://www.amazon.com/Cutting-Engraving-Machine-Coolant-Lubrication/dp/B01JU683KS/ref=sr_1_2?dchild=1&keywords=metal+cutting+engraving+machine+mist+cool&qid=1606596496&sr=8-2

Files

Type Length Width Thickness Origin
Name Type Tool Feedrate Plungerate Cut Depth

The author of this project has not posted a video.

Leave a comment and let them know you would like to see one!

The contour pass has not been optimized. If you can find an optimal feed/speed for this tool path please share it and I will update this project.

{makes}
+2

If anyone finds and optimal tool path for the contour please share it back and I will update the project files.
