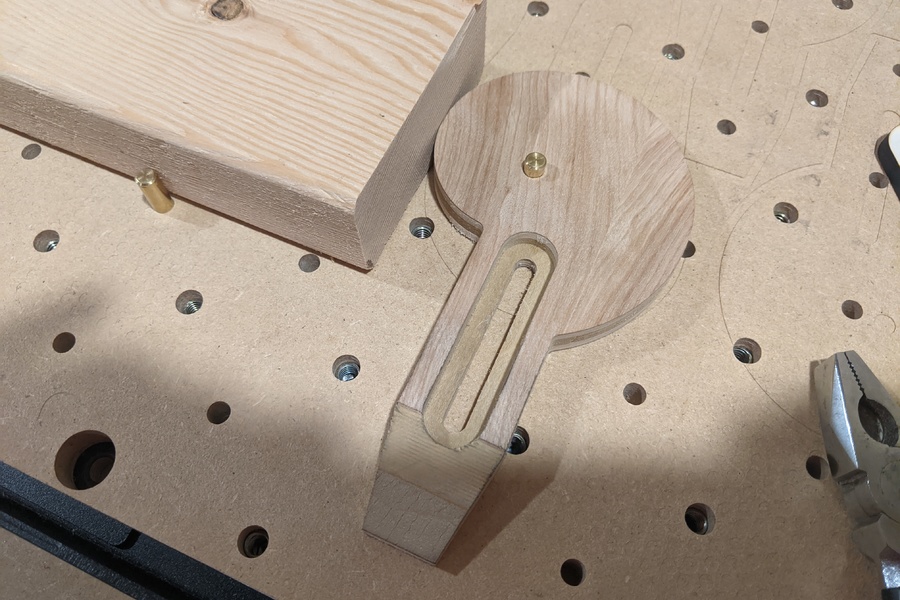

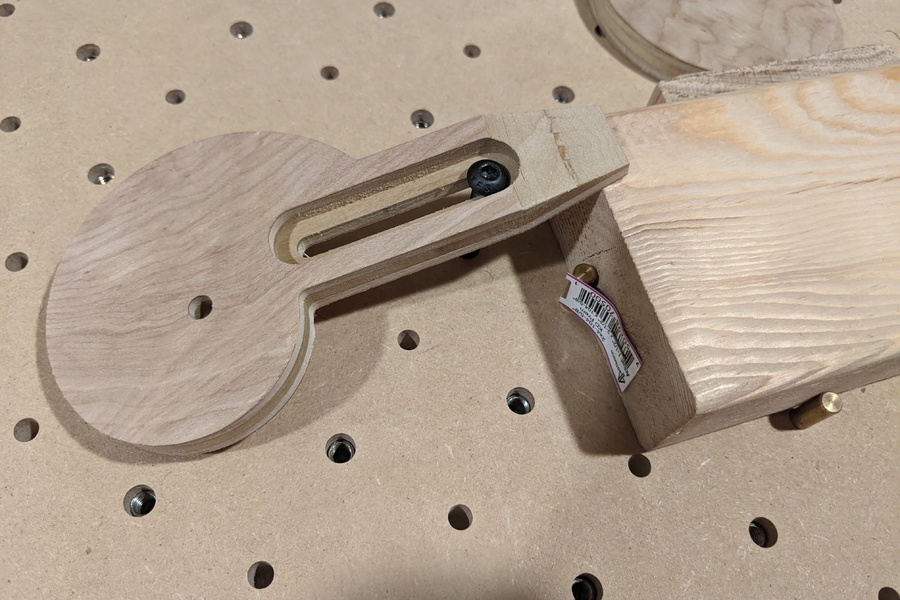

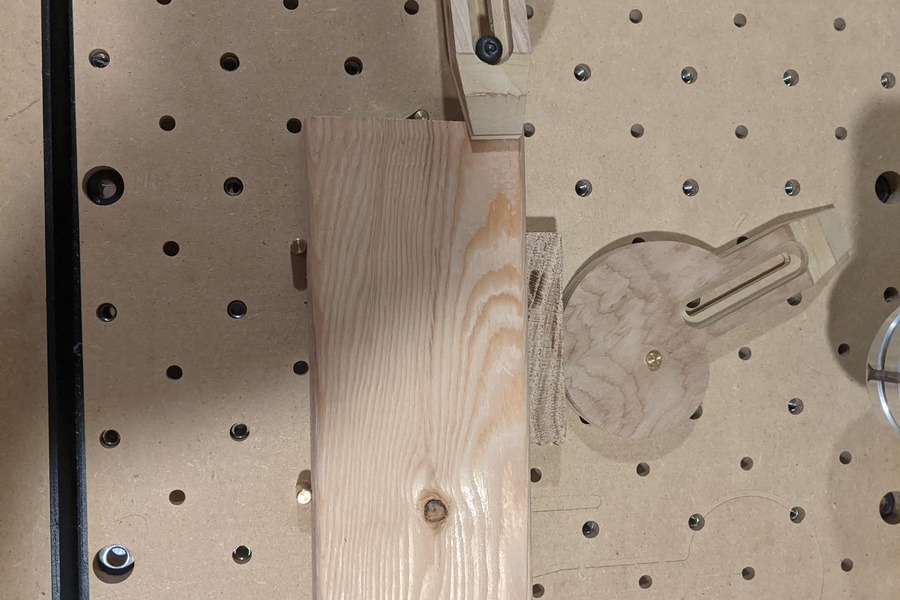

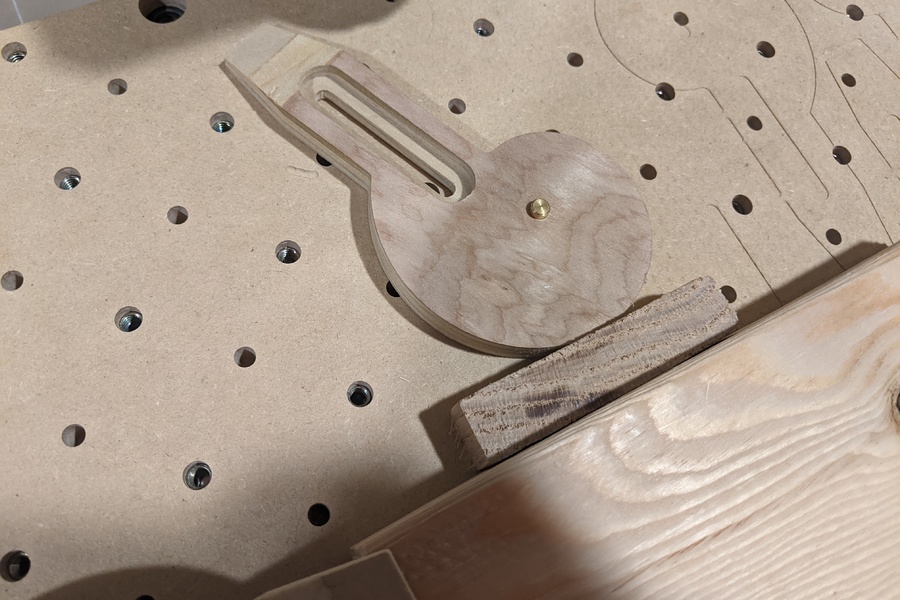

Simple cam clamps which can double as toe clamps. Cam pivots on 1/4" dowel pins. Toe clamps sized to work with 1/4-20 bolts and washers.
Stock:
1/2" Plywood (12"x24")
Tooling:
1/8" flat endmill, Carbide 3D #102
1/8" ball endmill, Carbide 3D #101
Workholding:
Tape and Superglue
Approx. Machining Time:
2 hours, 3 tool changes
Have you made this project?
If so, upload a photo to show the author some love and let everyone know what your finished version looks like!
You must be signed in to upload a photo.
made by {makerusername}
Comments
wborrelli posted 4 years ago
I had to take a screen shot and then trace the bitmap to create my own cutfiles. I could not find any way through Fusion 360 to save or export or to even create GCode. But, in the end, I have working cam clamps. These work much better than the other 2 styles I found and cut. Those are in the burn pit now.holdlast posted 4 years ago
Sorry for the extra steps. I think the f360 integration is broken here if the poster doesn't have the paid subscription to f360. F360 files were shared in the Carbide3D community contest #15. [Here](https://community.carbide3d.com/t/community-challenge-15-2019-2020-edition/27304/7?u=duexx)Terry-W posted 3 years ago
Can you tell me about the brass pins please? Are they threaded on one end and did you make or buy them?holdlast posted 2 years ago
Long overdue response, brass pins were purchased on McMasterCarr 97325A185 Low-Strength Dowel Pin, Brass, 1/4" Diameter, 1" LongRRocket204 posted 9 months ago
Can't you export as an STL file from Fusion?You must be signed in to leave a comment.
