Child's Nightlight

Project By: ScottsdaleSteve


Edge-lit Child’s Nightlight with interchangeable scenes so it can be refreshed as the child grows.

Files

Type Length Width Thickness Origin
Name Type Tool Feedrate Plungerate Cut Depth

Here is my edge-lit Child’s Nightlight with interchangeable scenes so it can be refreshed as the child grows.

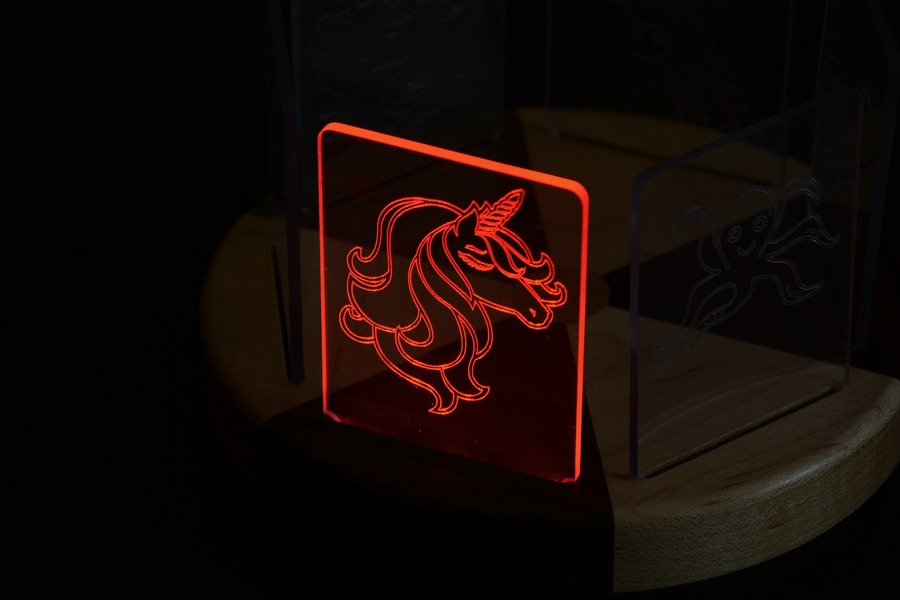

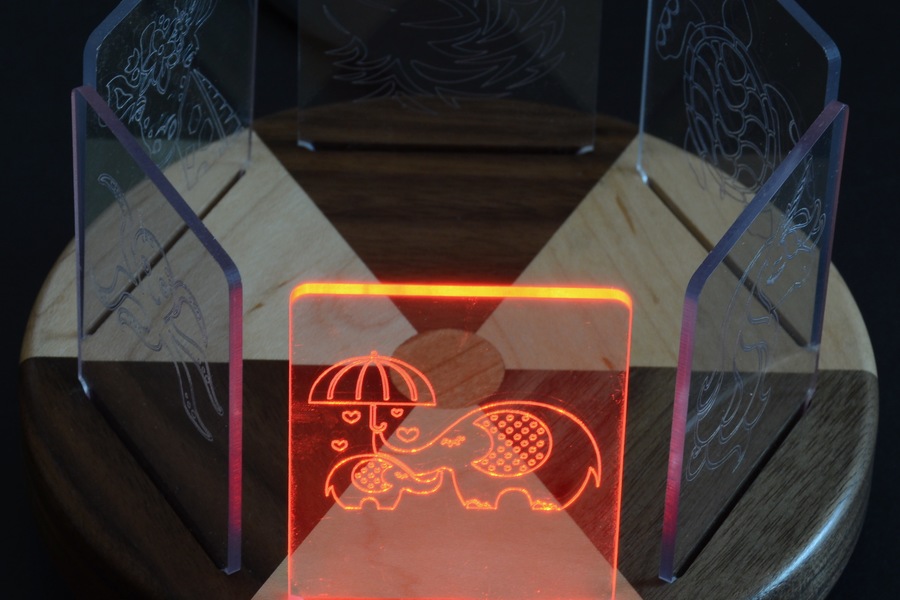

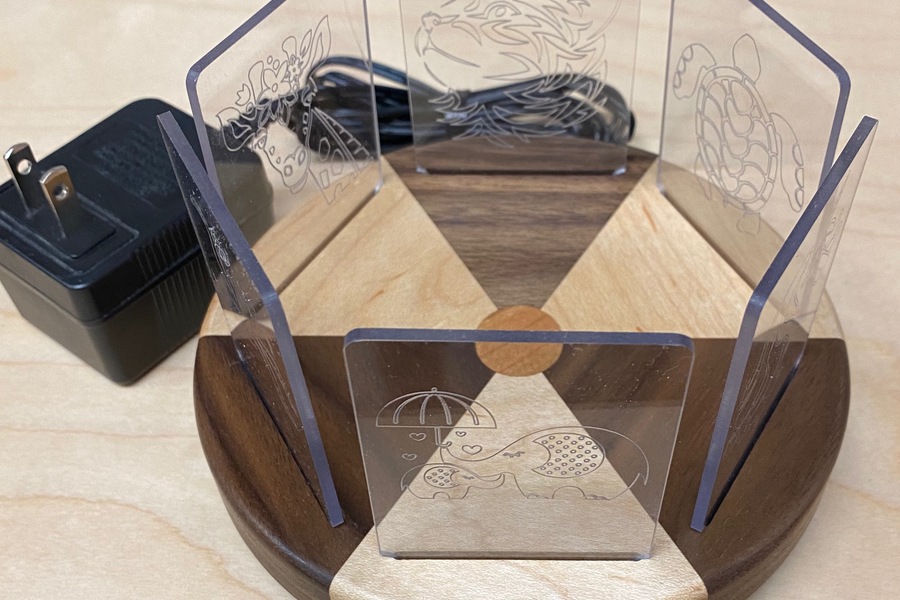

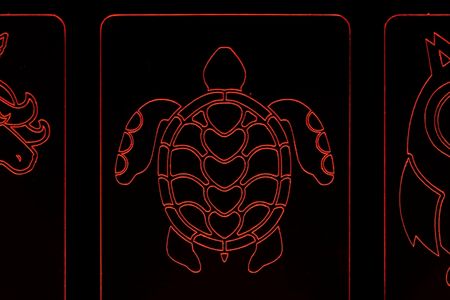

The Lexan diamond-dragged “scenes” drop into slots in the top. Underneath, on top of the bottom disc, is a single 2” LED light strip that illuminates the “front” scene. It turns on/off by simply rotating the top (“On” when rotated to a scene; “Off” when rotated between scenes.). Rare earth magnets provide tactile “stops” all the way around so the top stops exactly on a scene (“On”) or between scenes (“Off”). On/off is controlled by a repurposed Shapeoko mechanical proximity switch that contacts a scalloped lip underneath the top piece.

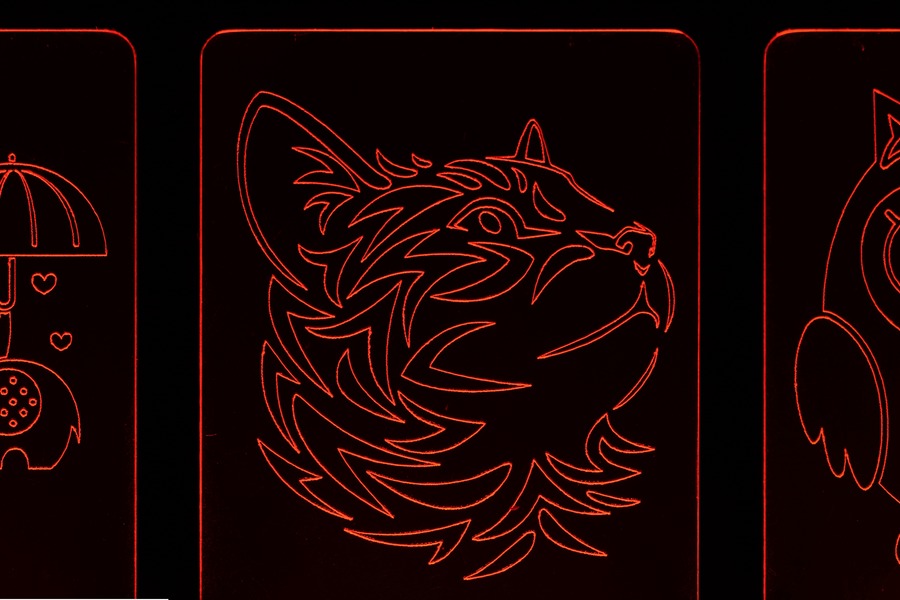

I wanted to do Disney characters but didn’t want to run afoul of copyrights, so I found some fun “free for personal use” SVG files instead. This is more of a girl’s version (I’m biased since I have twin daughters), but I can envision dinosaurs, happy monsters or superheros for boys.

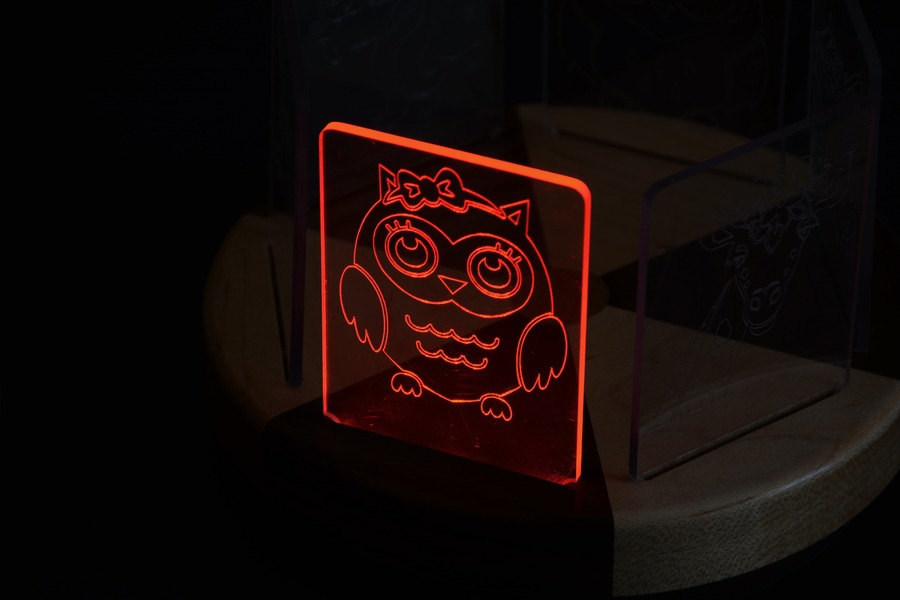

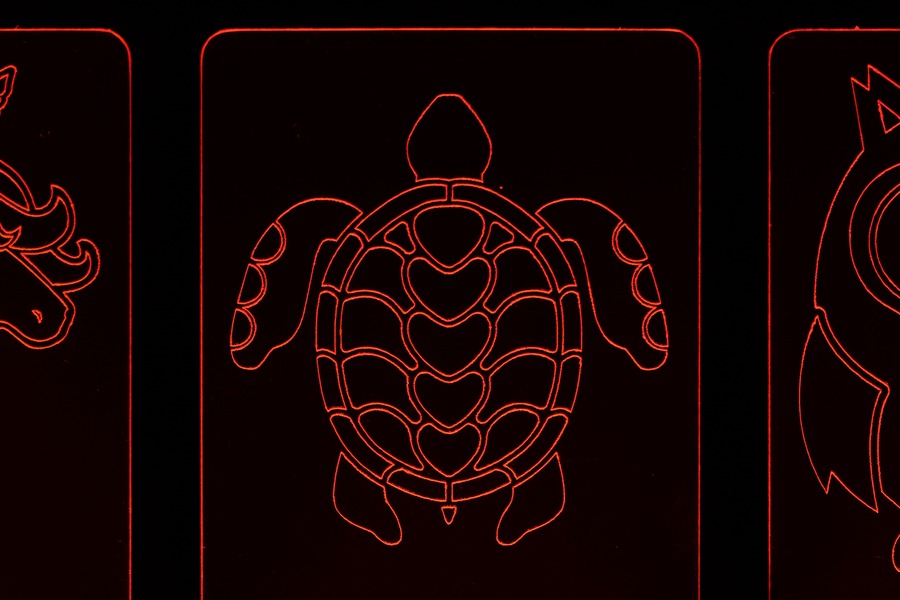

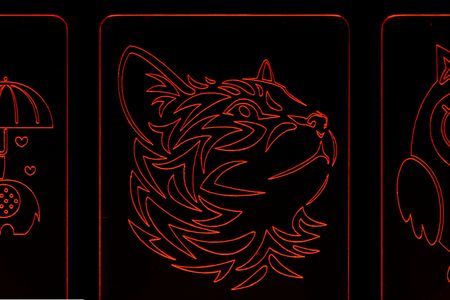

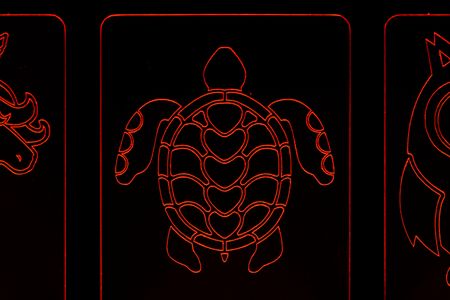

I made 10 Lexan scenes (because I couldn’t decide!), though the Nightlight only holds 6 at a time (child’s choice!)

Ingredients (all stuff I had laying around):
3/4” Walnut
3/4” Maple
Lexan (.09” thick)
LED light strip (2” long; 3 LEDs)
Shapeoko Mechanical Proximity Switch (left over from an upgrade. I’m a pack rat and this project reinforces why!)
30mm Bearing
1/4” Rare Earth Magnets
3/8” nut and bolt
12VDC “Wall Wort” Power Supply
