puzzles: pin & box

Project By: DAH


alkema puzzle wood marbles

interlocking mechanical puzzles designed by Tim Alkema (presented with his permission)

Files

Type Length Width Thickness Origin
Name Type Tool Feedrate Plungerate Cut Depth

The author of this project has not posted a video.

Leave a comment and let them know you would like to see one!

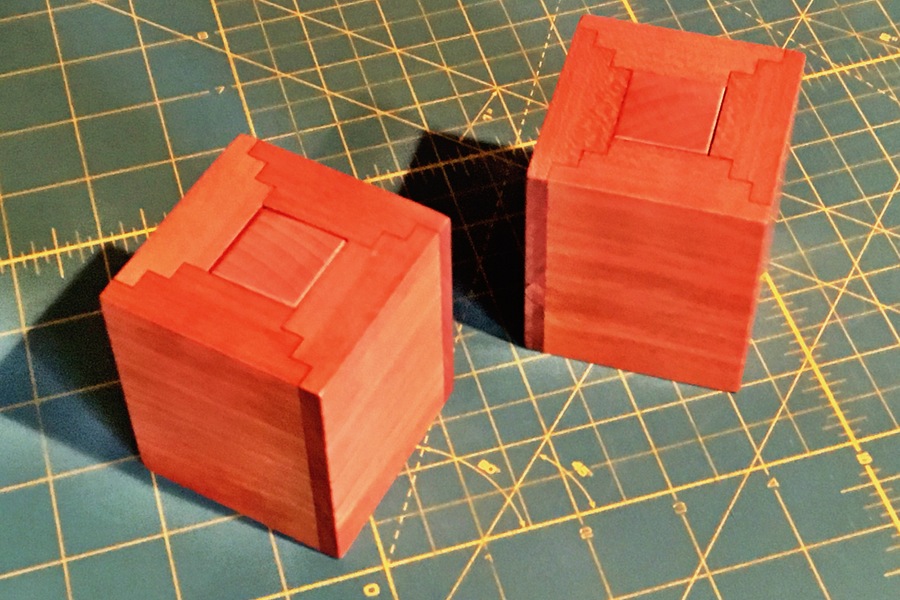

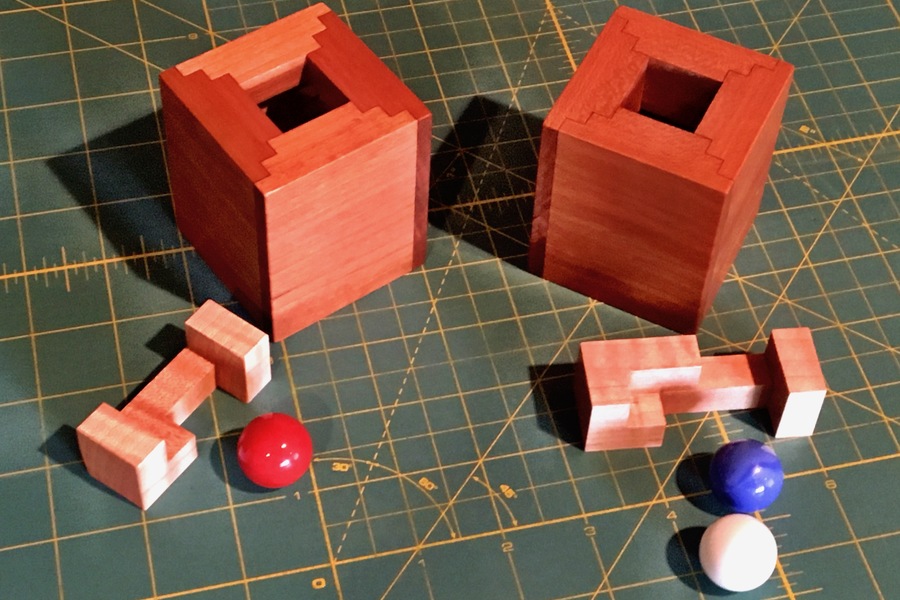

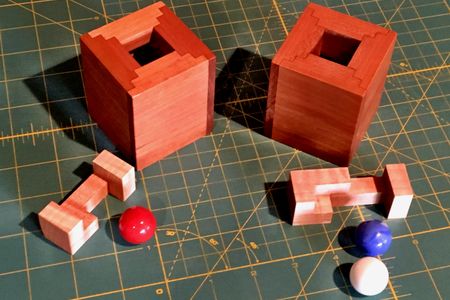

Instructions to build 2 puzzles: Grip (sheet1) & Trap (sheet2). The puzzles are very similar in construction; cut the sides for the box from a blank ~276mm x ~96mm x 18.0mm; roll the sides into a box and glue using rubber bands and CA glue. Trap also requires a 48.0mm x 48.0mm x 12.0mm bottom. Mill the pins from a blank 72.0/60.0mm x 24.0mm x24.0 in two steps with a rotation between. Use 22-24mm marbles and have fun!
