Axe Handle

Project By: Olle


axe handle fusion360

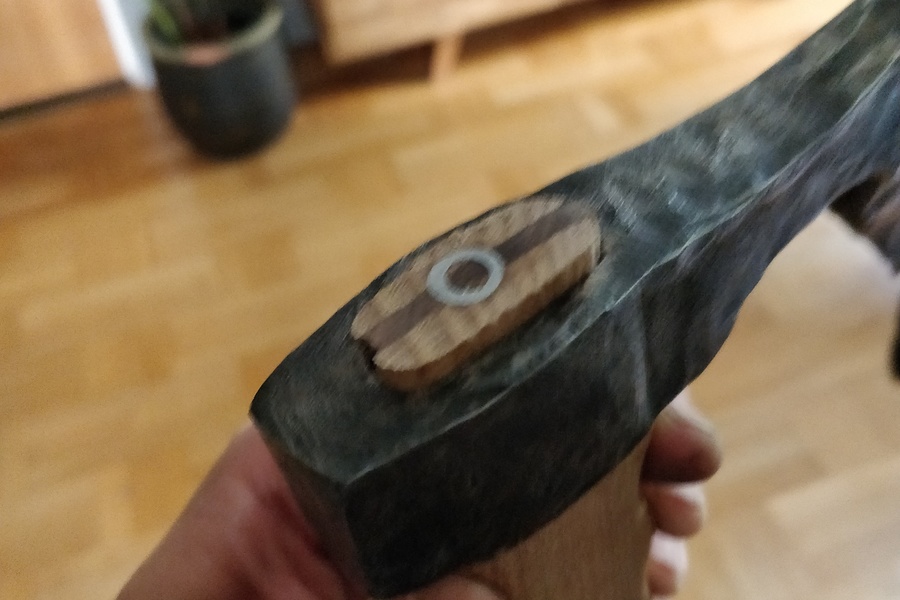

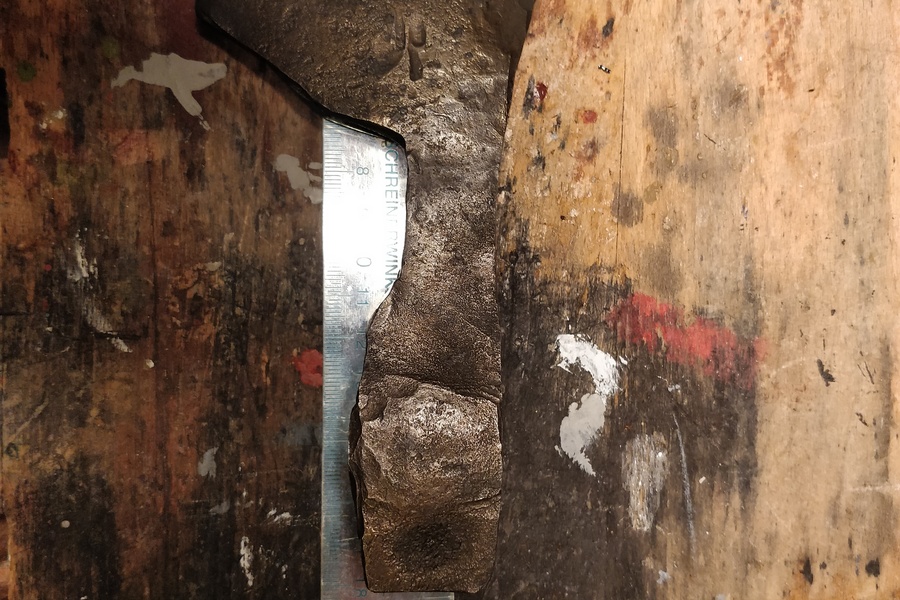

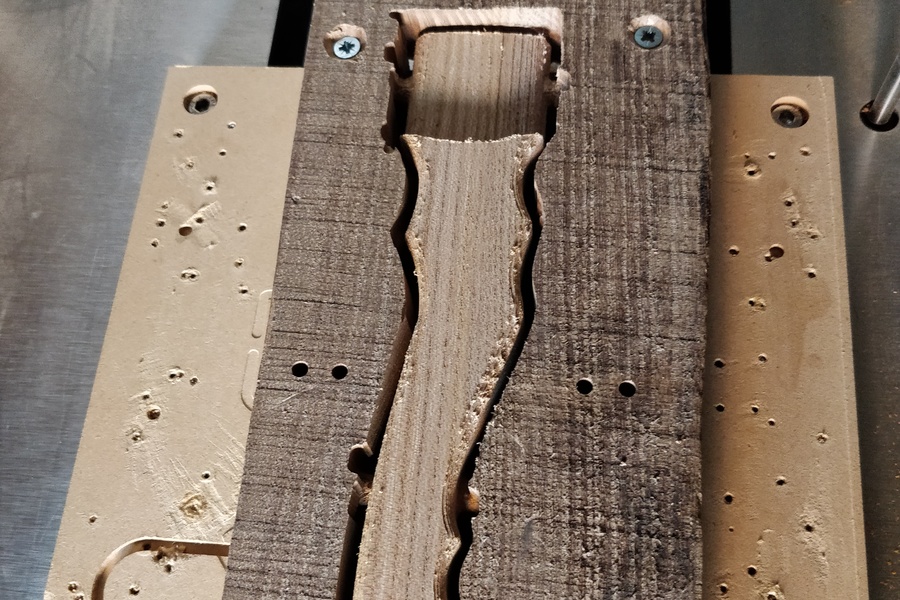

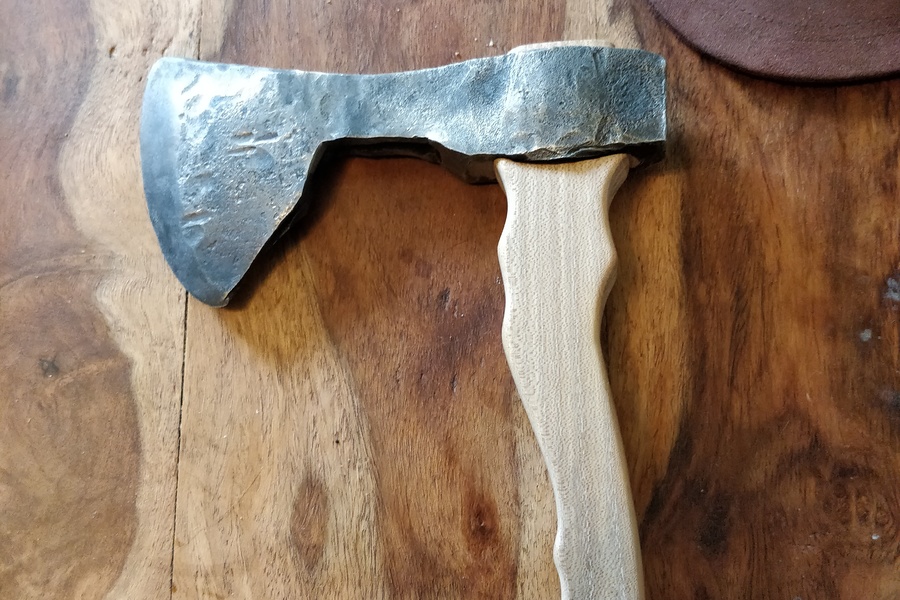

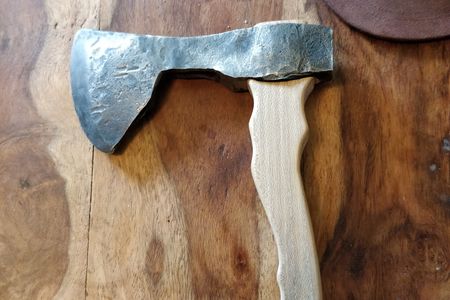

I made a handle for an axe head. I Took photos of the axe head with a ruler below it in two different orientations and imported them into fusion 360 as canvas and drew up the axe head. Then I found an image of a handle I liked using google an imported that as a canvas as well and drew the outline of the handle. The part was machined from two sides using a few pins to keep the part in place and 4 mm dowel pins to relocate the part after flipping the stock.

Files

Type Length Width Thickness Origin
Name Type Tool Feedrate Plungerate Cut Depth

The author of this project has not posted a video.

Leave a comment and let them know you would like to see one!

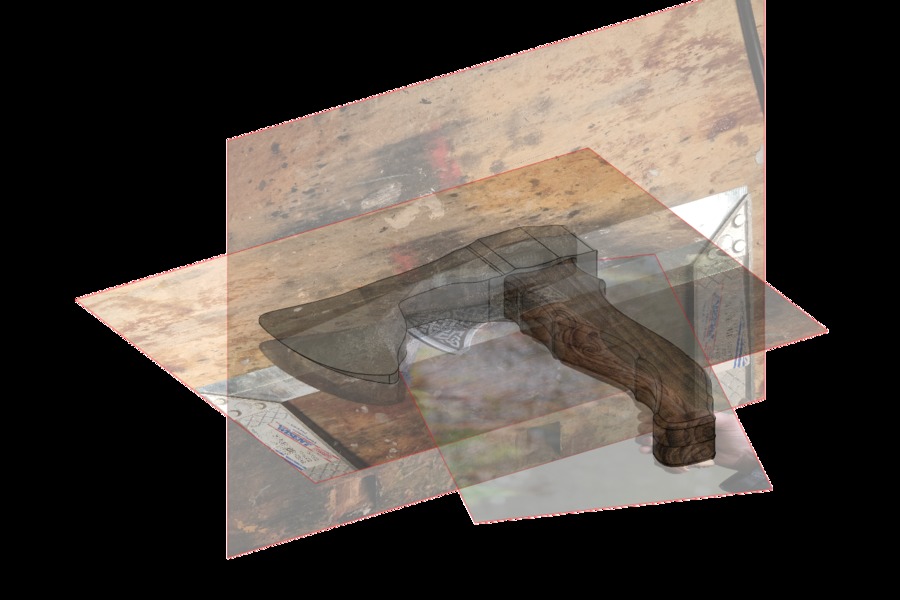

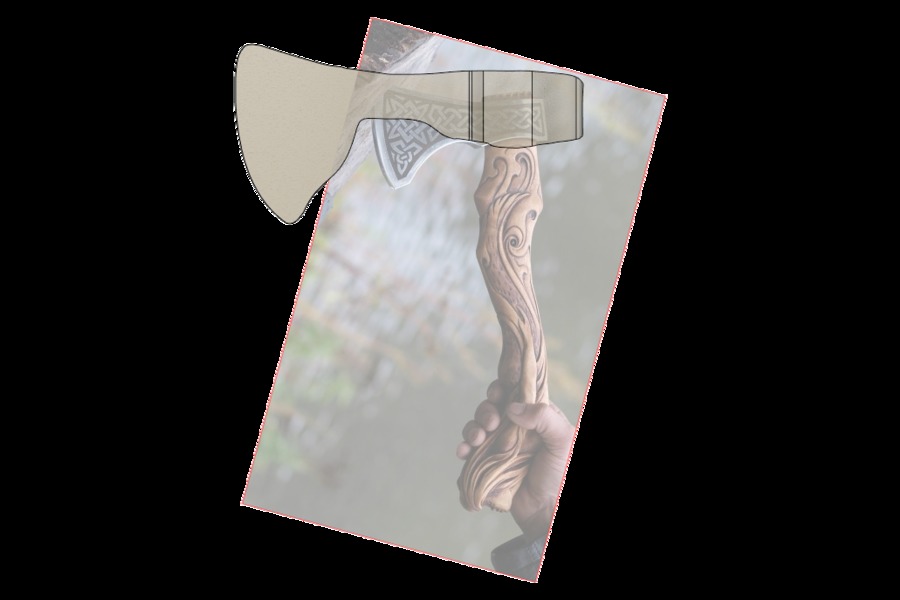

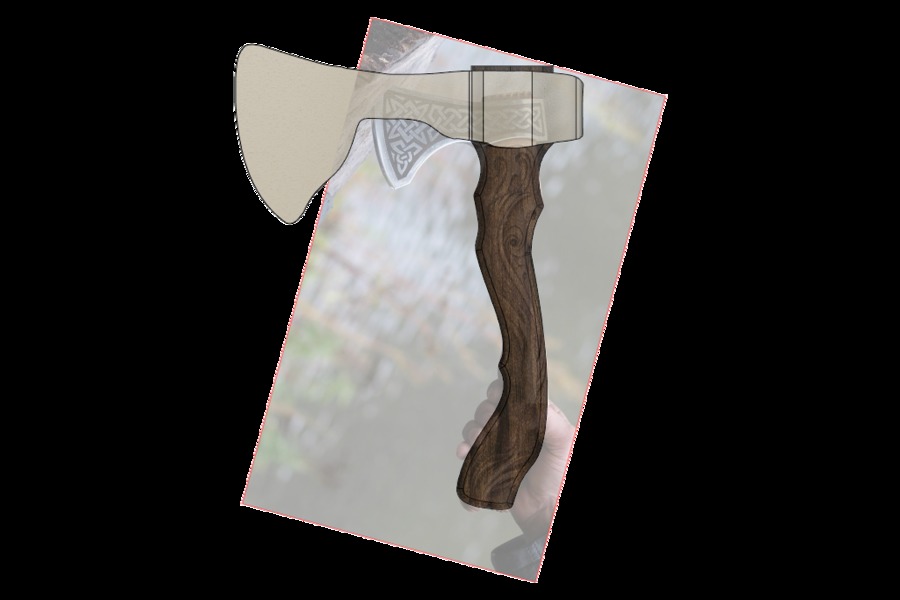

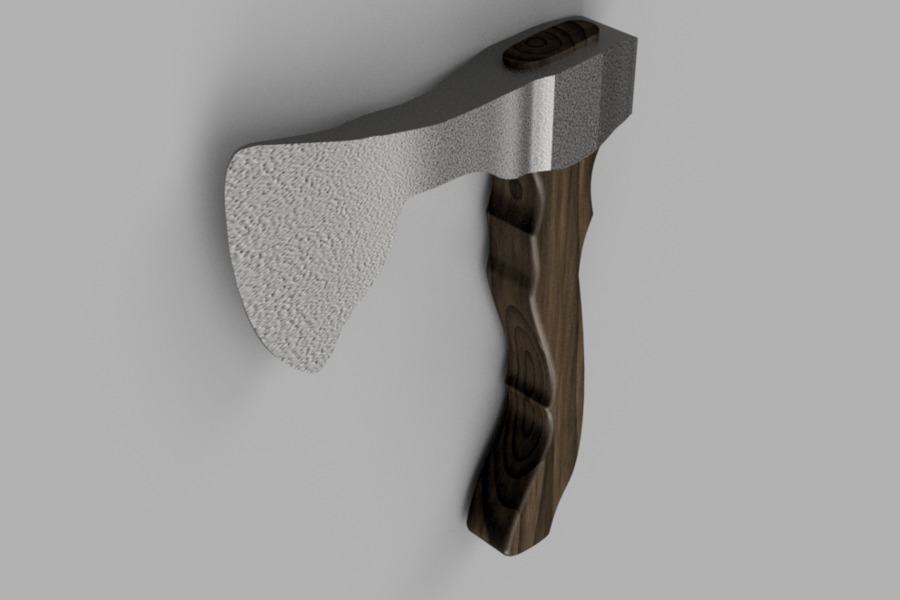

I made a handle for an axe head. I Took photos of the axe head with a ruler below it in two different orientations and imported them into fusion 360 as canvas and drew up the axe head. Then I found an image of a handle I liked using google an imported that as a canvas as well and drew the outline of the handle. I modeled half of the handle and then mirrored the other half. For some reason fusion did not let me combine them, I am not sure why that is. I therefore exported the two halves as step files and imported them back into fusion and combined them. I did add some fillets to the edges of the part before turning on the history tree between the two fusion files linked below but otherwise the whole CAD process is there.

CAD of the axe head and handle using canvases: https://a360.co/2Xfxy1F

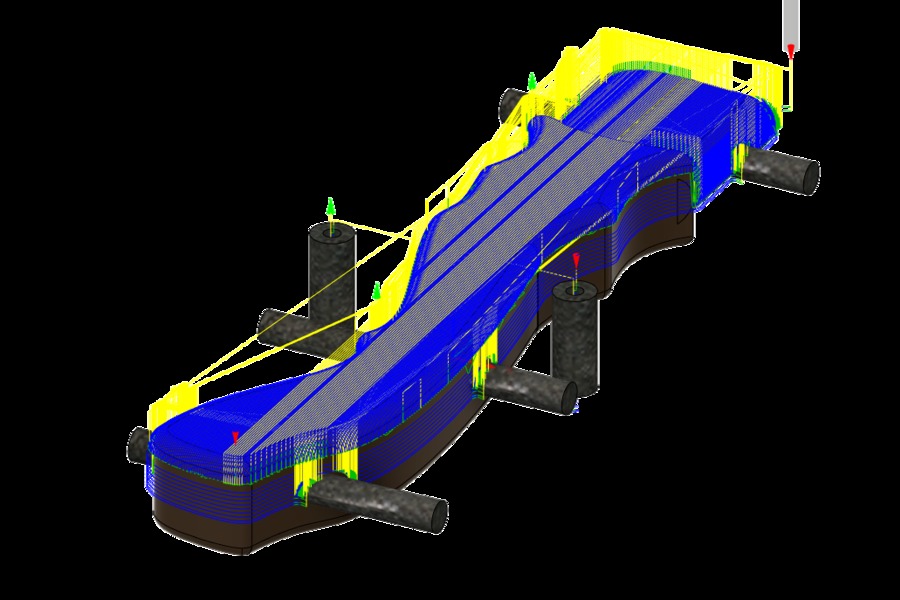

Import the step files, adding pins to hold the part and CAM setup: https://a360.co/30jFnFh
