Overhang Vise for Shapeoko

Project By: AllCustomGifts


vise roundstock clamp bushing

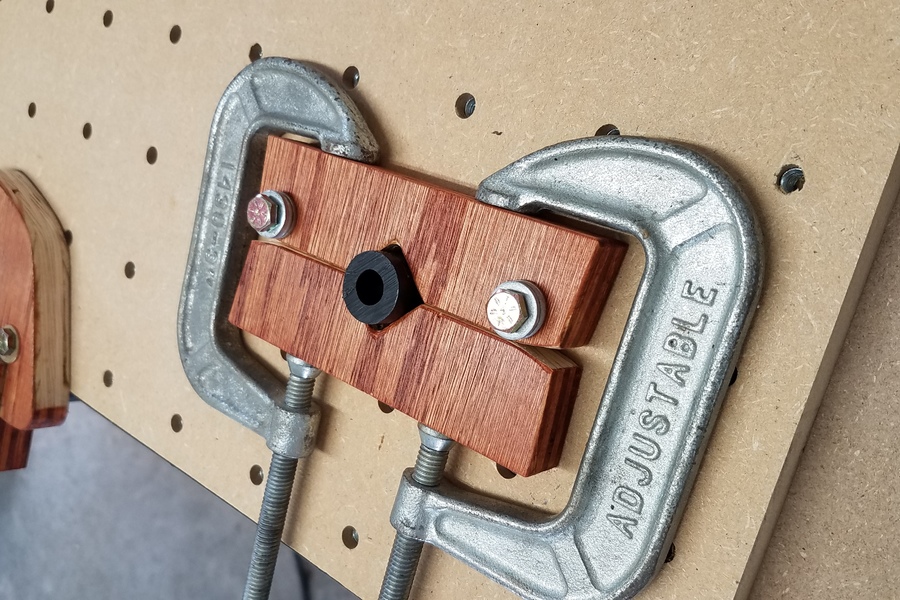

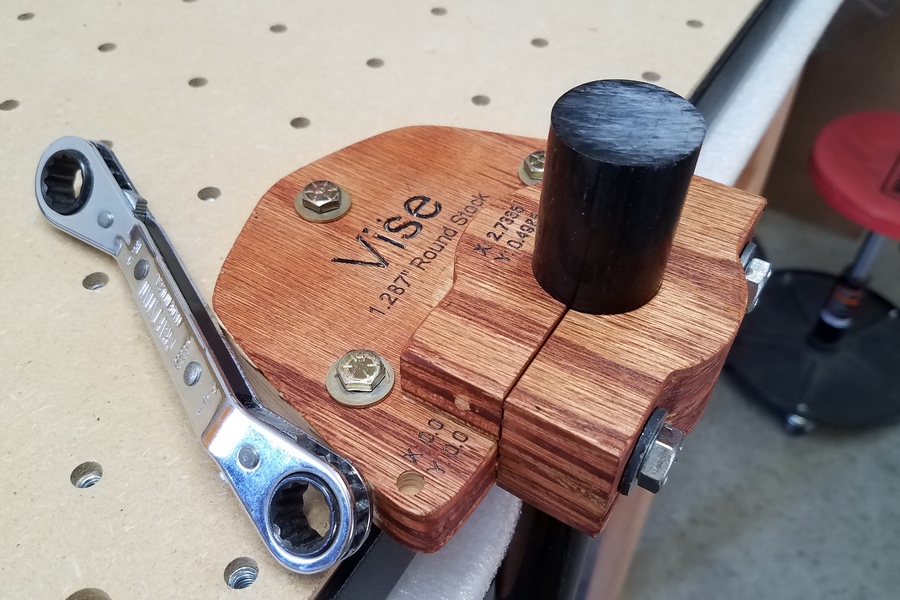

Vise for holding round stock vertically off the front end of a Shapeoko. I used this vise to make bushings from Delrin stock.

Files

Type Length Width Thickness Origin
Name Type Tool Feedrate Plungerate Cut Depth

The author of this project has not posted a video.

Leave a comment and let them know you would like to see one!

The associated CAD files will require slight modifications if you have a different OD on the round stock you are attempting to cut. However, the overall design worked flawlessly during my work-holding setup. The only change I would consider would be to overhang the front of the machine a bit more so that the 2 top pieces of the vise jaws could mount under the lower 2 pieces (gains more Z-axis movement, but also comes closer to maxing out the Y-axis movement)

{makes}

This is a great project! Would love to see a video of this little guy in action.
