| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| design_1 | c2d | 188.79kB |

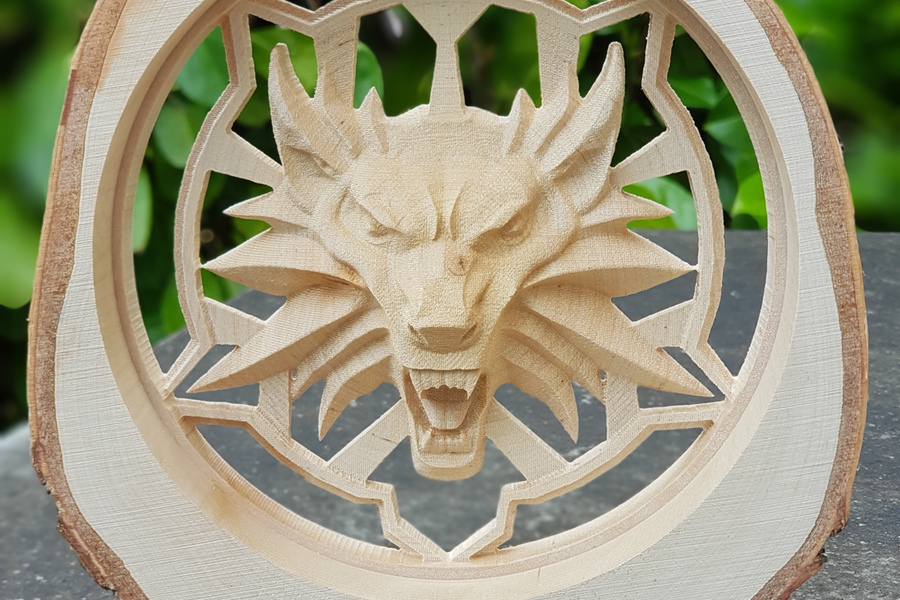

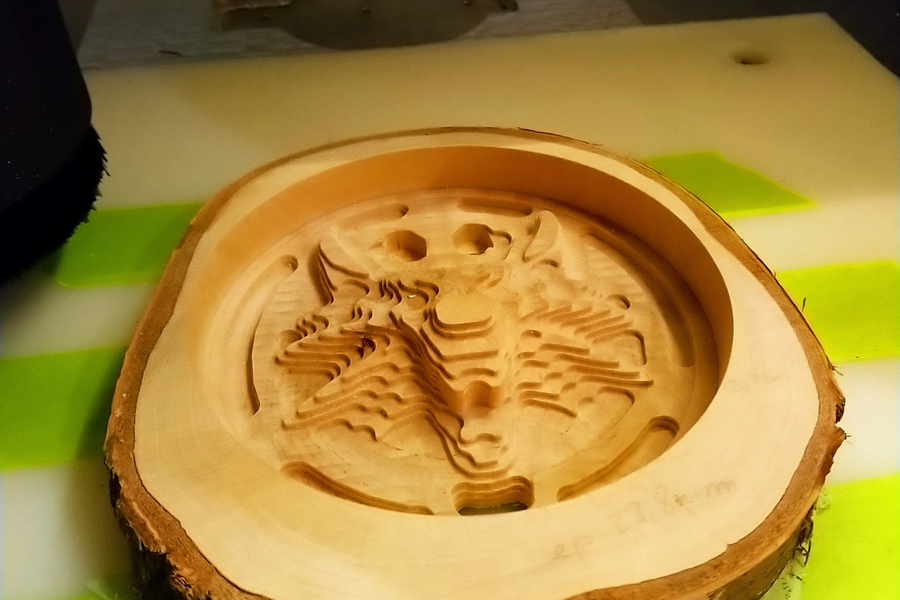

Started from a 3D model (e.g. from thingiverse), projected to a grayscale heightmap using STL2PNG utility (see https://community.carbide3d.com/t/from-stl-file-to-carbide-create-pro-screenshots-included/17420), imported that in Carbide Create Pro, used one 3D roughing toolpath with a 6mm 2-flute square endmill (tool "10", and two 3D finishing toolpaths oriented 90degrees from each other, using a tapered endmill (they rock!).
Have you made this project?
If so, upload a photo to show the author some love and let everyone know what your finished version looks like!
You must be signed in to upload a photo.
made by {makerusername}
Comments
Henrydog posted 4 years ago
Was this built with a Shapeoko? Great work!Julien posted 4 years ago
Hi Henry, Thanks, yes this was cut on a Shapeoko3.benshearer posted 3 years ago
Looks great. I think you said that you had Carbide pro, but do you have to have the pro to carve this even if I download the files from you?Julien posted 3 years ago
Hi Ben, I just checked and it is unfortunately not possible to load this c2d file in a non-Pro version of Carbide Create.Daniel-san posted 2 years ago
@benshearer Hey, you can actually use the test version of Create Pro to generate the g-code.You must be signed in to leave a comment.
