Carbide3D Corner Square Pocket

Created by - wsmoy

Date Created - 2020-05-14

Last Update - 2020-05-26 01:42:13

Status - published

0.5mm recessed locating pockets and threaded insert holes for the Carbide3D Corner Square + Edge Guide. You can modify the program to remove the first pocketing operation if you don't want your corner square recessed.

If your bolts are bottoming out in the threaded insert holes (I made the pocket only about 0.56" deep), just chase the holes with a 1/4" or 5/16" drill.

Fusion 360 Version:

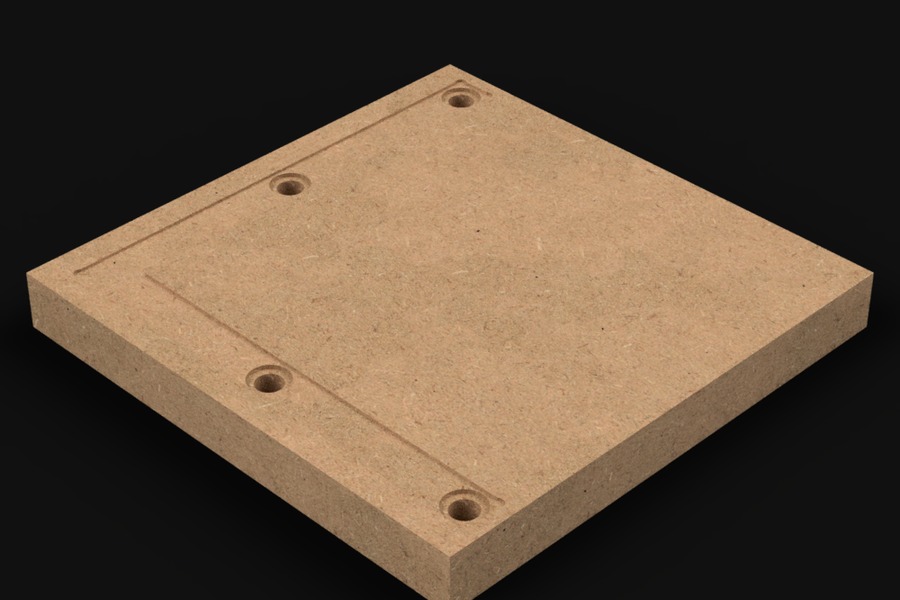

Corner Square Pocket: https://a360.co/2AlLxu3

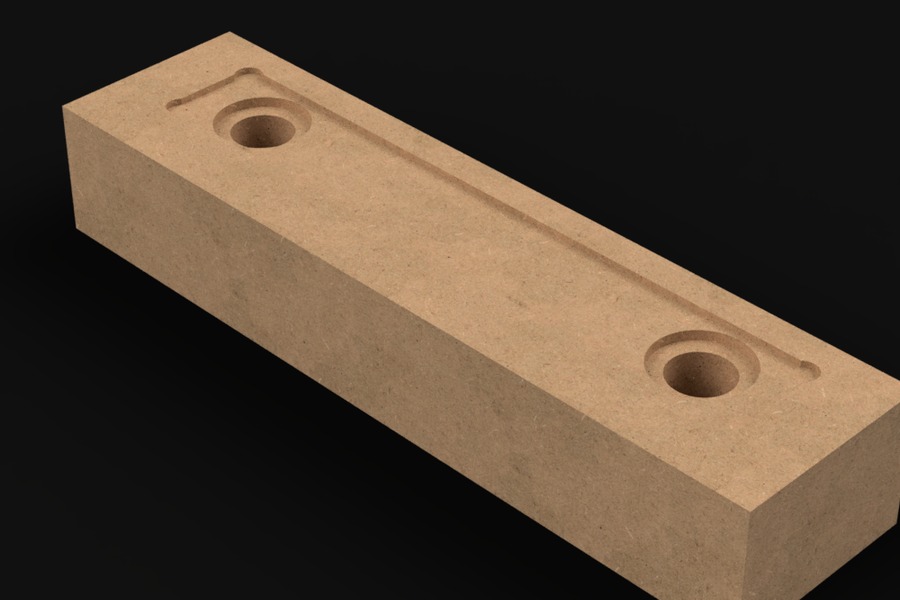

Edge Guide Pocket: https://a360.co/2T82Ipz

Tags

workholding

Download Project

Type	Length	Width	Thickness	Job Zero

Name	Type	Tool	Feedrate	Plungerate	Cut Depth

List of Files
Filename	File Type	File Size
design_2	c2d	34.17kB
design_4	c2d	46.27kB
design_1	png	524.26kB
design_3	png	576.95kB

Designed to be machined with an 1/8" endmill with at least 0.625" of stick-out.

Origin is at the lower left hand corner of the pocket.

You can modify the program to remove the first pocketing operation if you don't want your corner square recessed. You can also machine the "insert pocket" deeper if you have a longer 1/8" endmill or allow it to stick out further.

If your bolts are bottoming out in the threaded insert holes (I made the pocket only about 0.56" deep), just chase the holes with a 1/4" or 5/16" drill.
