Parametric Clamp Holder

Created by - wsmoy

Date Created - 2019-11-22

Last Update - 2020-06-03 09:41:10

Status - published

NOTE: Click "Make This Project" to access the Fusion files. The preview is broken.

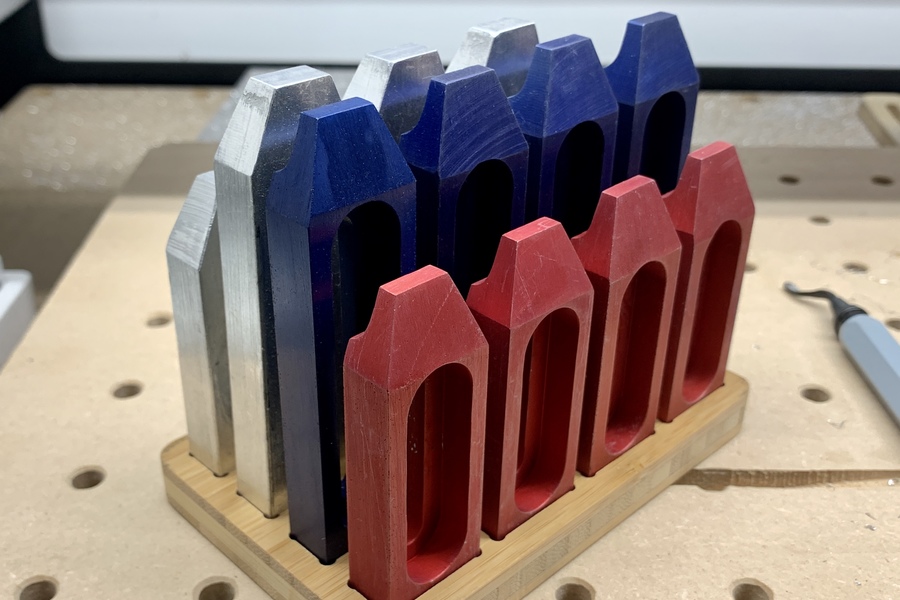

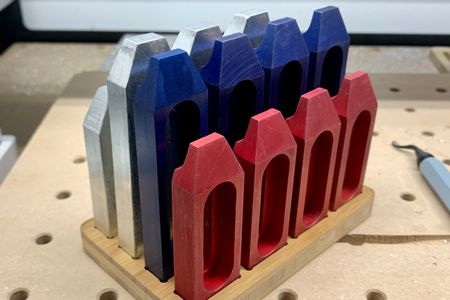

Organizer for clamps, with parameters for defining width/thickness of clamps, number of rows and columns, stock thickness, and spacing. For Gator Tooth Clamps, the clamp pocket dimensions should be ever so slightly larger than 18x20mm.

And before you ask, these clamps were custom made and anodized for my by @jpl_richard (instagram), and as of 11/2019 he's out of stock so no you can't buy any.

https://a360.co/3

Type Length Width Thickness Job Zero
Name Type Tool Feedrate Plungerate Cut Depth
