| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| design_1 | c2d | 543.97kB |

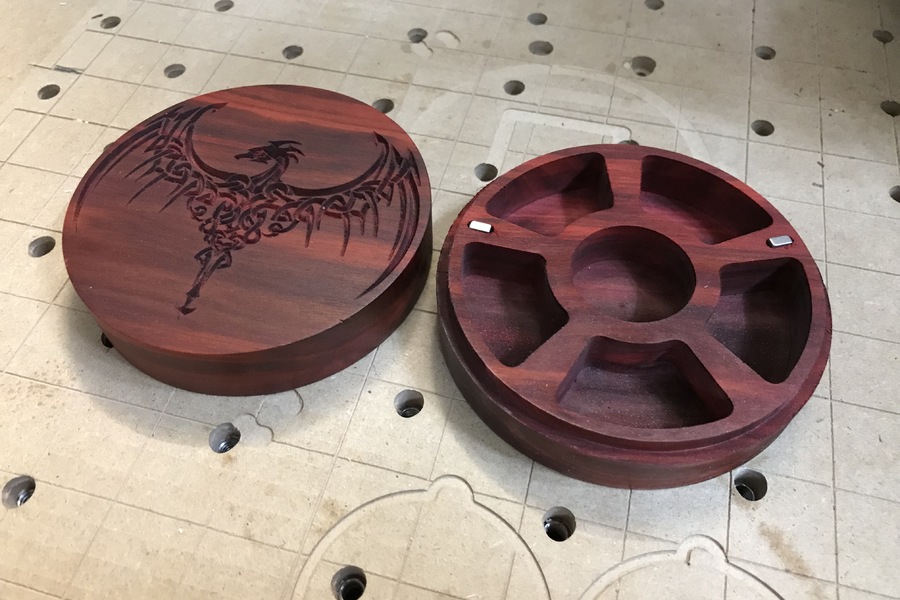

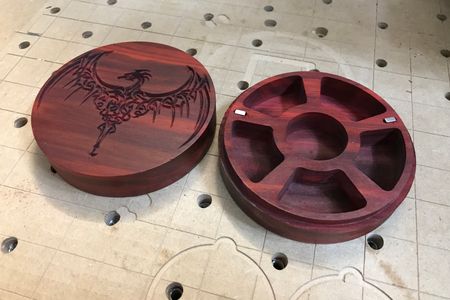

This is a variation on the basic round box design that uses pockets to create a sectioned compartment for the bottom of the box. These are the cut files used in part 3 of my basic boxes video series. The video covers making a pocketed design, using the node editor, magnetic catches for the box and fixing those weird pink lines SVG imports.
Have you made this project?
If so, upload a photo to show the author some love and let everyone know what your finished version looks like!
You must be signed in to upload a photo.
made by SteveLabuta
Comments
SteveLabuta posted 5 years ago

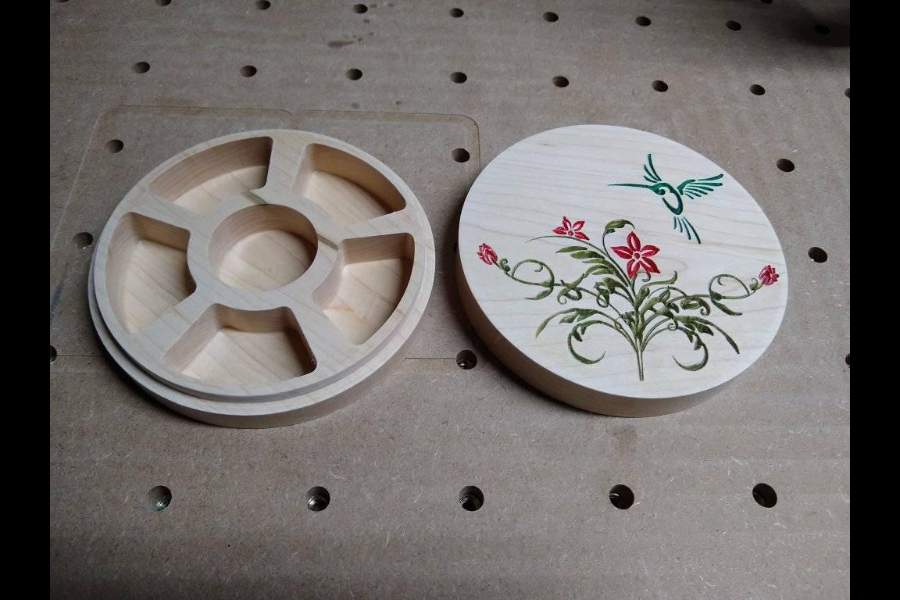

Hi John, I just built this project and found an issue. There are two of the pockets that are not closed polygons. (They show up pink in CC.) It's simple to correct, but I thought I should mention it. I used a hard maple and other than using a shorter cut depth everything went fine. Again, thanks for the design and the YouTube videos.You must be signed in to leave a comment.
