Legend of Zelda Triforce

Project By: loudsimonet


legendofzelda zelda link triforce gaming gamer gamers

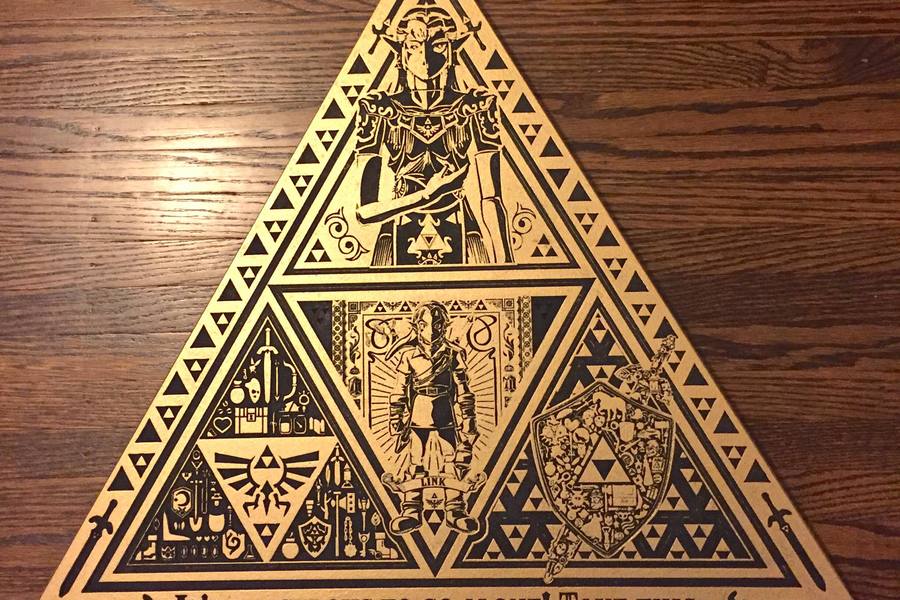

Legend of Zelda triforce fan art.

Files

Type Length Width Thickness Origin
Name Type Tool Feedrate Plungerate Cut Depth

The author of this project has not posted a video.

Leave a comment and let them know you would like to see one!

(Updated with my feeds and speeds for Carbide Create, 26-08-2019) For this project, you should be able to Vcarve by highlighting all vectors except the second from outside triangle and calculating your tool path. The second from outside vector should be profiled along the outside of the vector. This will provide for a chamfered edge.

I cut this project from a 24"x24"x.75" blank, with the triangle's width at 23.5" with a 60 degree V mill (Amana RC-1148) at 90IPM feed, 40IPM plunge, and approximating 16kRPM as closely as I could with the router. The details may or may not show well/carve if it's carved a lot smaller than this.

{makes}

what version of Carbide Create does this work with? I have tried on build 313 and it would not open.

You'll need to download v413 (or the beta v414) https://carbide3d.com/carbidecreate/

Updated. Cleaner lines, less vector intersection, better toolpath.

I guess I should have ask this before starting to cut the project but do you add black paint before or after.
