https://www.facebook.com/groups/unofficialshapeoko/permalink/571082483299715/

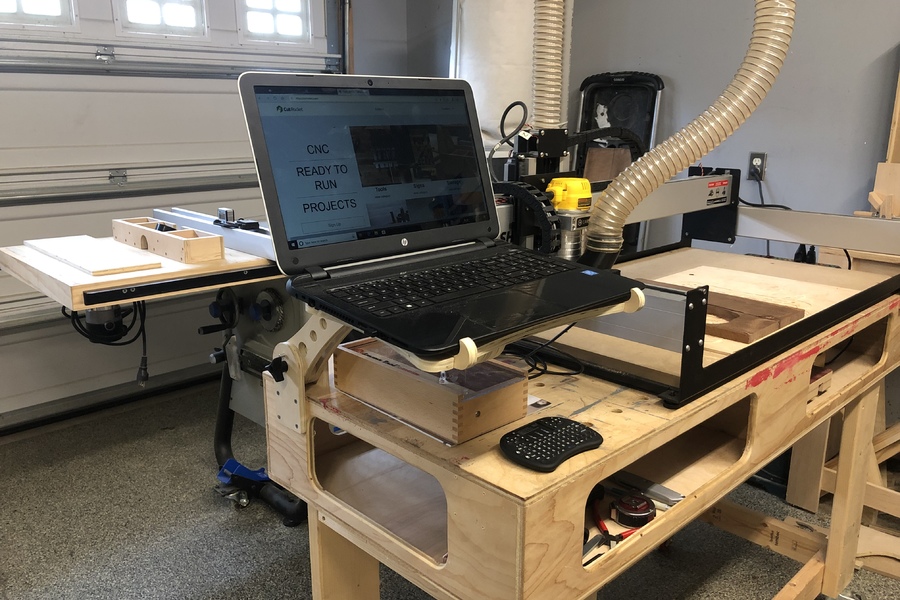

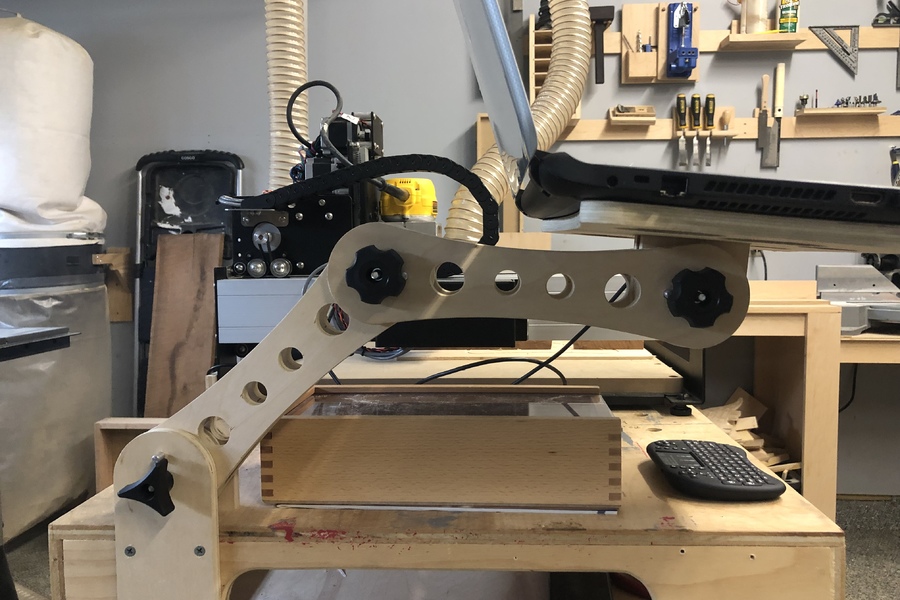

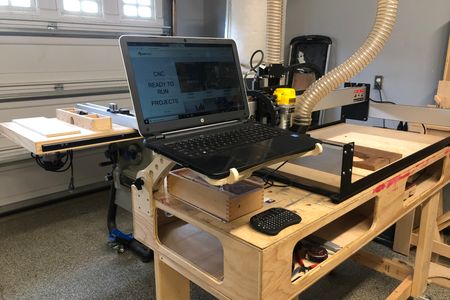

(3) 1/4-20 bolt 3" long
(3) 1/4" aluminum pins cut out of aluminum rod 3" long
(3) plastic turn knobs 1/4-20 thread
Do not rely on my feeds/speeds, totally new to CNC work
Have you made this project?
If so, upload a photo to show the author some love and let everyone know what your finished version looks like!
You must be signed in to upload a photo.

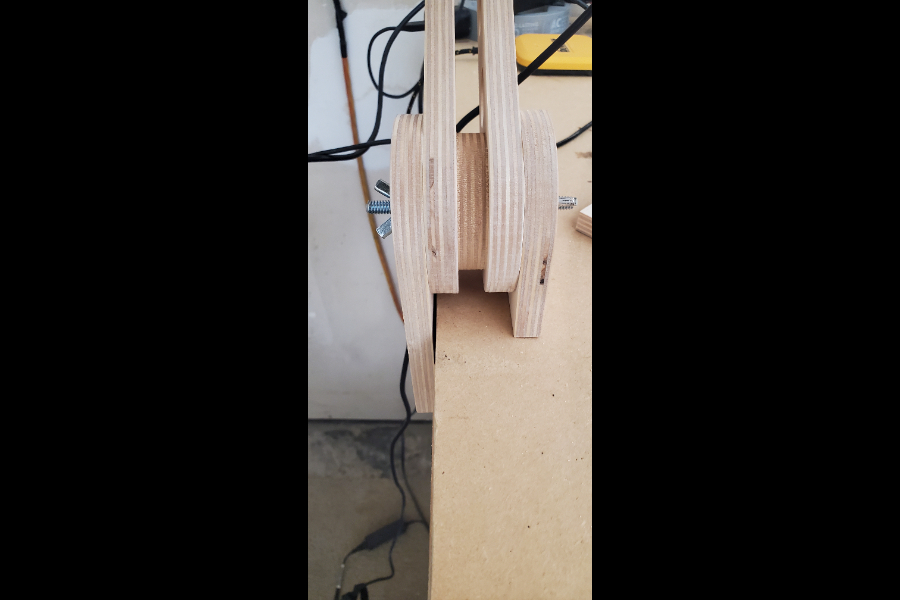

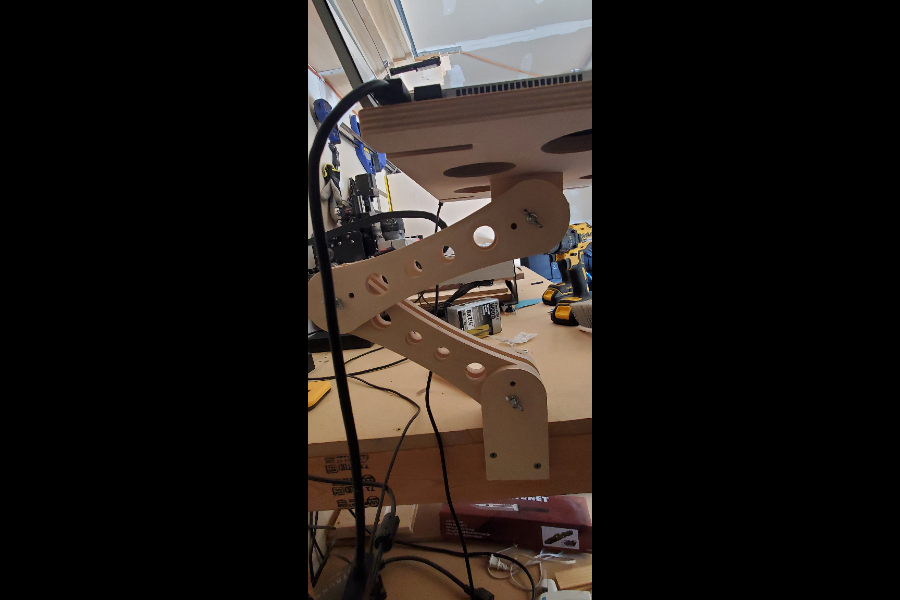

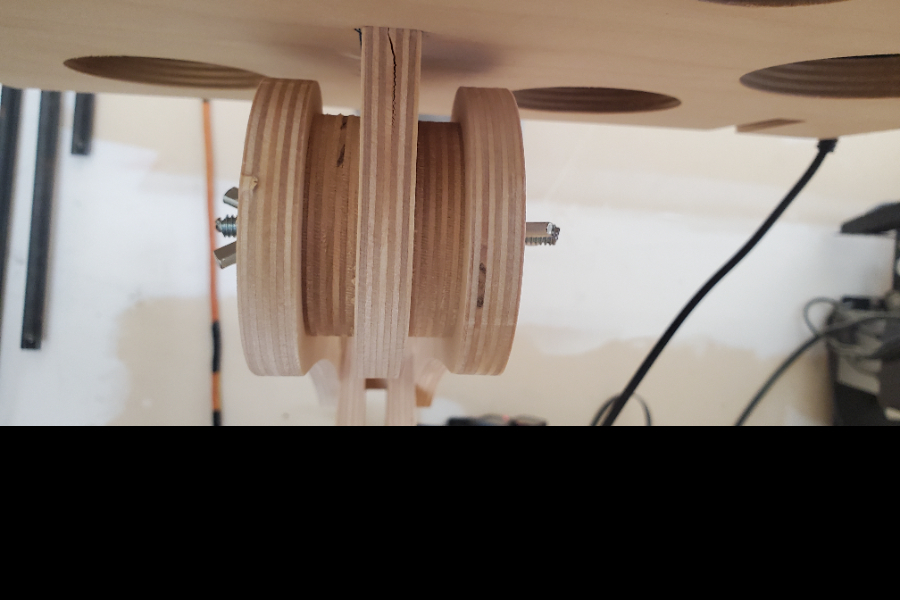

made by SSGWilliams2
made by SSGWilliams2
made by SSGWilliams2
made by SSGWilliams2
made by SSGWilliams2
made by SSGWilliams2
made by SSGWilliams2
Comments
Cc9Fingers posted 5 years ago

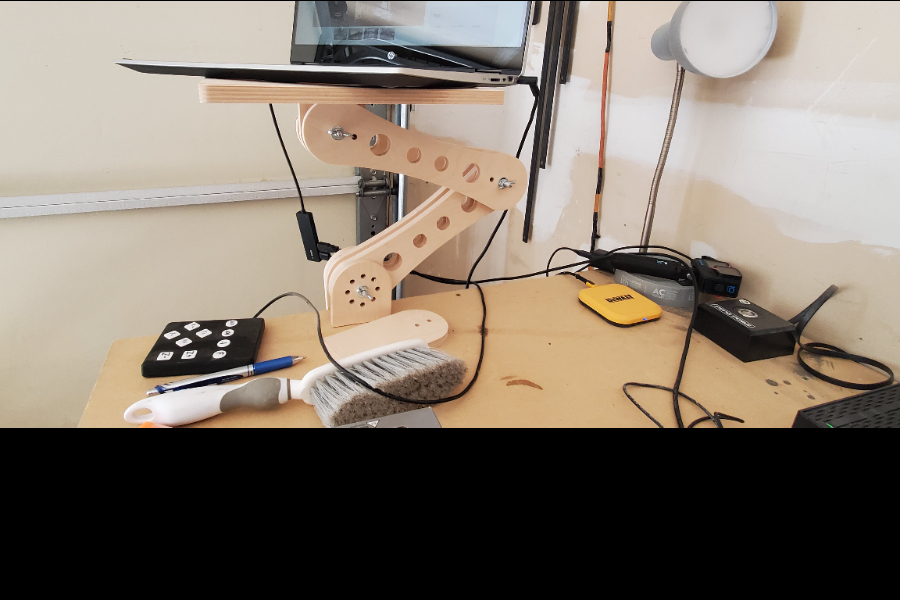

Im considering making this. Can someone explain what the 1/4'' aluminum pins are for???Cwalters posted 5 years ago

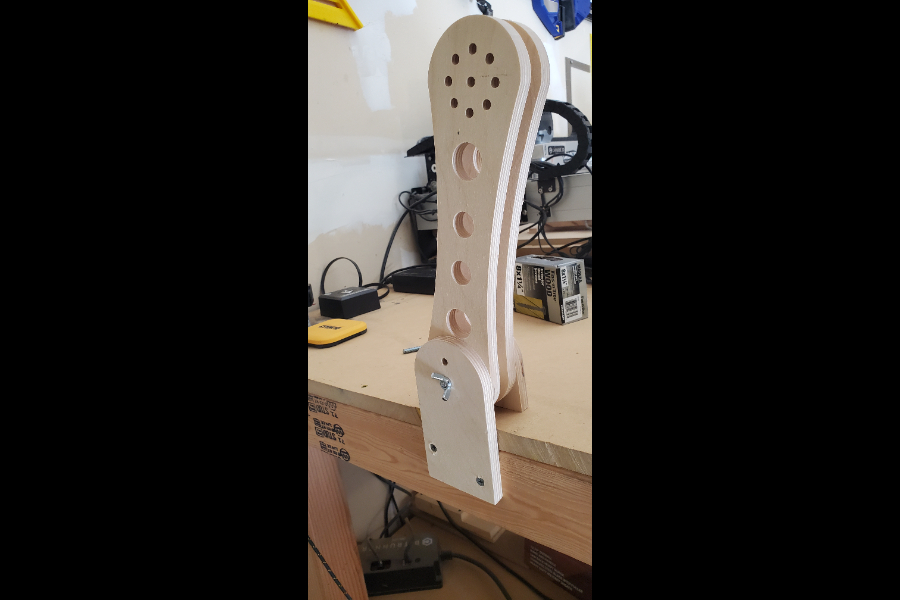

They are to lock each leg into the desired position of rotationDShannon posted 5 years ago

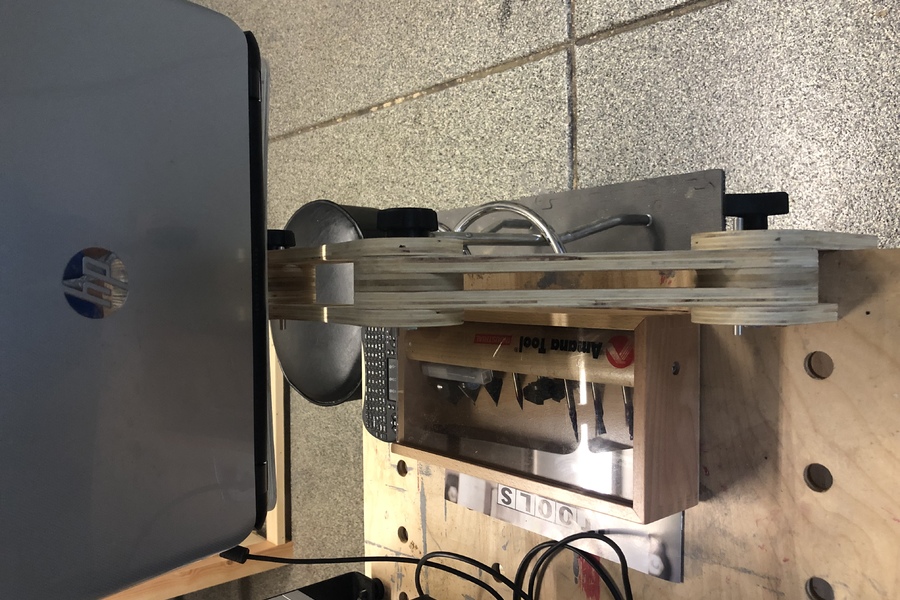

I have bougt some 1/2 inch plywood and getting ready to make this. What size was your laptop? I am needing to take into consideration my laptop size and weight.Cwalters posted 5 years ago
I believe it’s a 15”DShannon posted 5 years ago

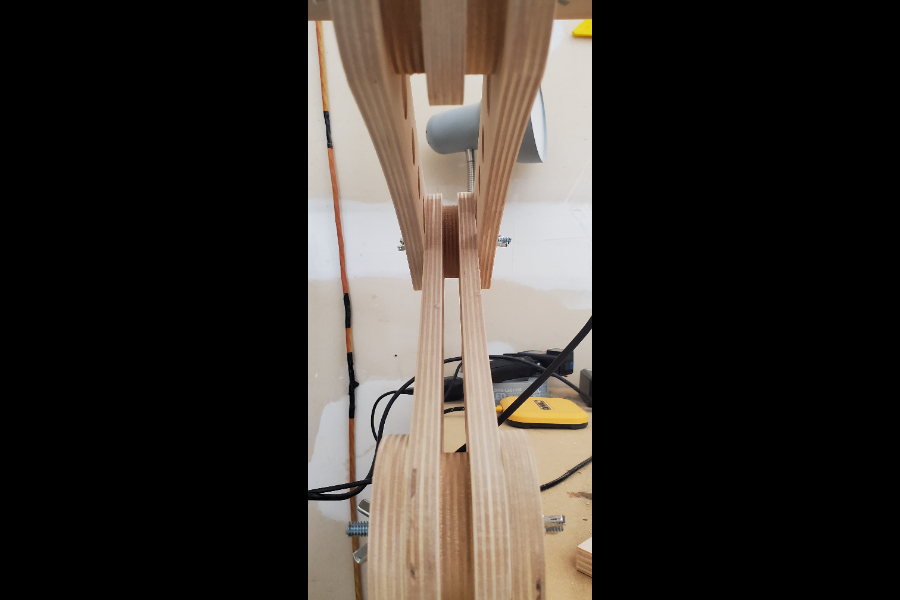

I think there are some missing pieces or something. In your pics it looks like there is another part that is sandwiched in between the arms. Maybe one of the circles was intended for this but does not have the hole drilled for it? Maybe I am misunderstanding the assembly.DShannon posted 5 years ago
Nevermind. Lack of sleep had me not seeing what was obvious. Sorry!! Thanks again for this design!!!ScottDE posted 4 years ago
What did you discover? I'm still seeing missing parts.DShannon posted 5 years ago

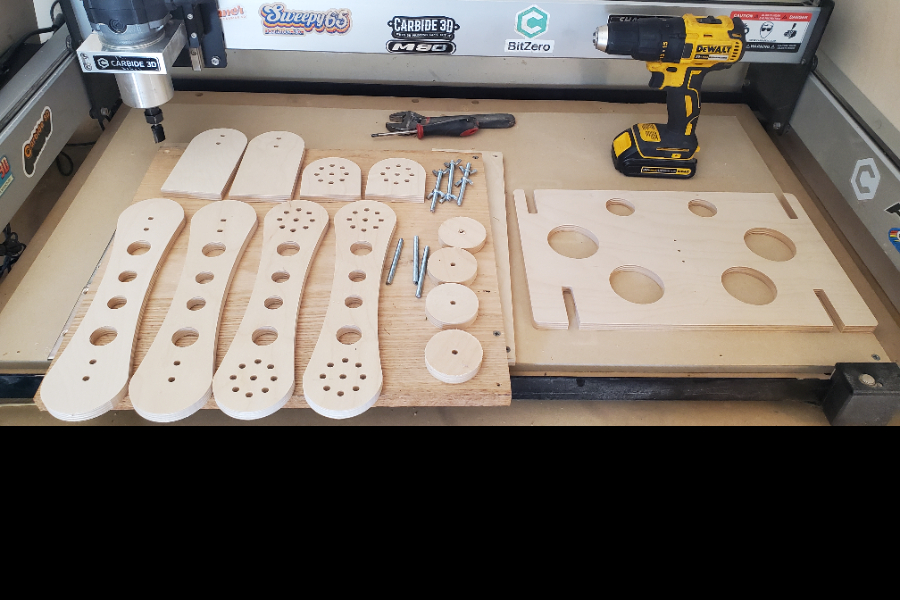

Just some information on my cut of this. I ran the #102 1/8 bit with CM using A DOC of .065, Feed 80 and Plunge of 25. Cut nicely in 1/2 inch ACX plywood (5 ply)sfennern posted 5 years ago
of all things I can not get the project to download, it comes up blank for me is there anything I can do thank you?ScottDE posted 4 years ago

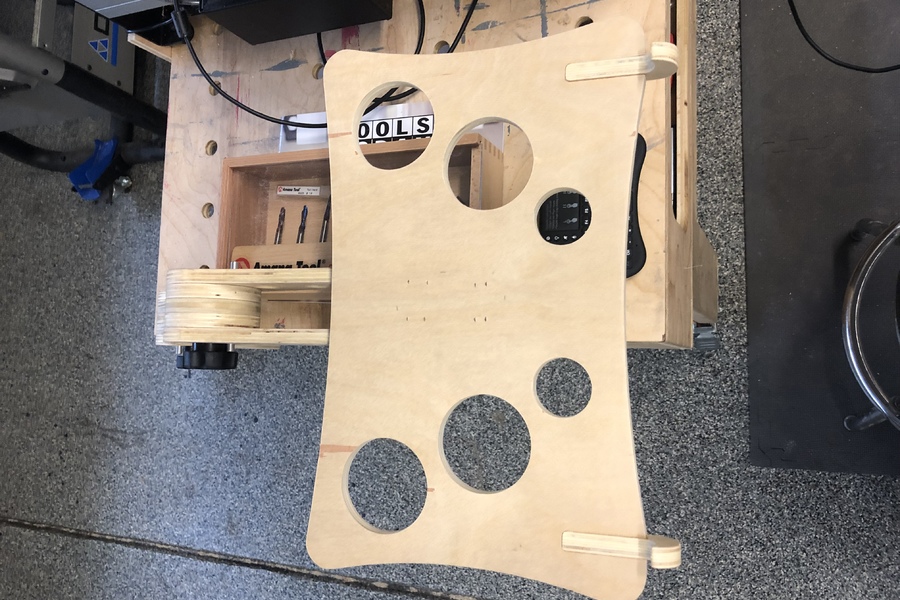

Just cut this out. Guess I wasn't supposed to cut out the rectangle on the tray?ehendrix posted 2 years ago
I am looking in using most of your design. I will be putting a pocket where you have slots for the laptop to catch and have made slots in the catches to slid on. I think this may allow for better gluing. I am also looking to put a swivel at the point of attaching to the CNC table and one at the point of the laptop. I believe this will allow the laptop to be moved out of the way or where it's best needed location. I have seen arms that have spring tension holding arms in place compensating for the weight of the laptop. I may look into that alteration as well. Thanks!benjulian13 posted 1 year ago
