| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size | |
|---|---|---|---|
| design_1 | c2d | 437.08kB |

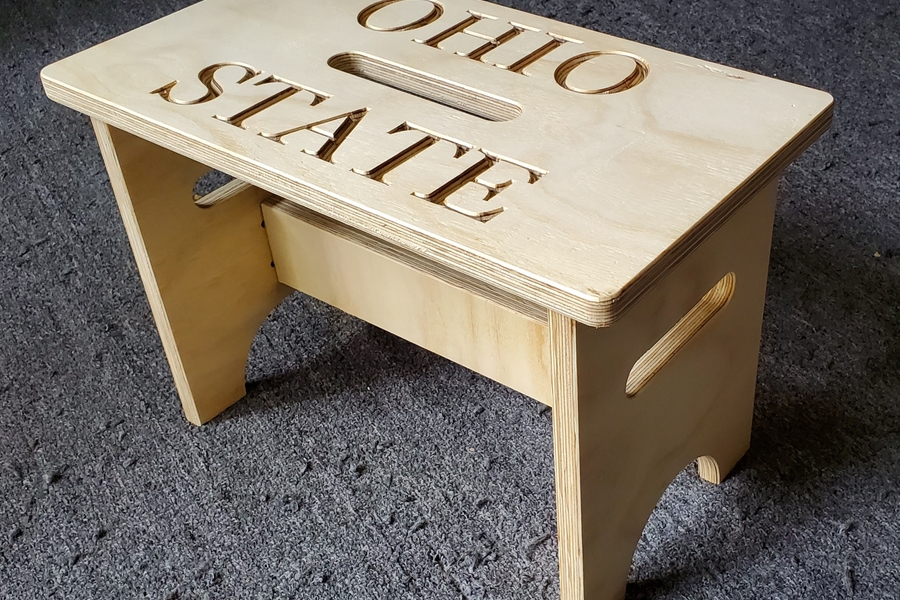

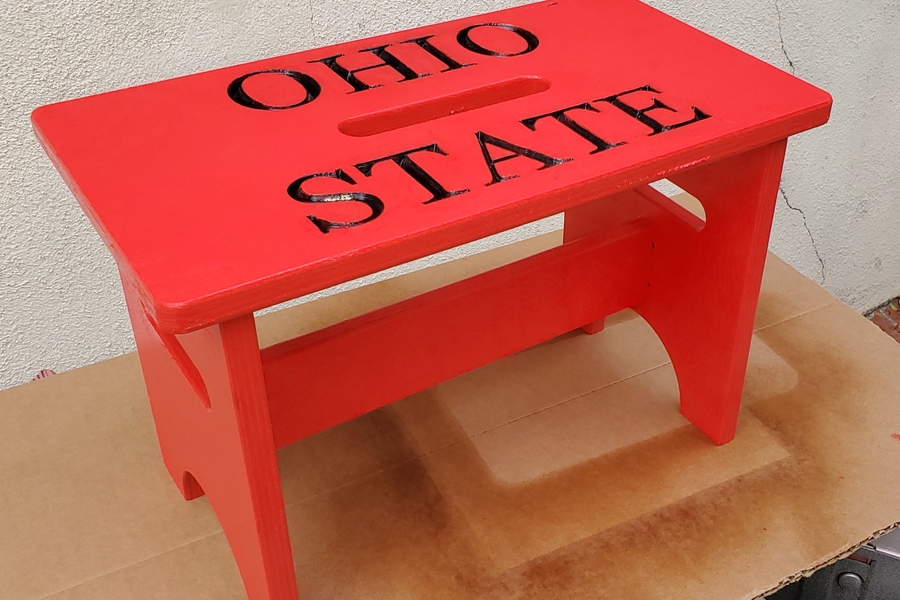

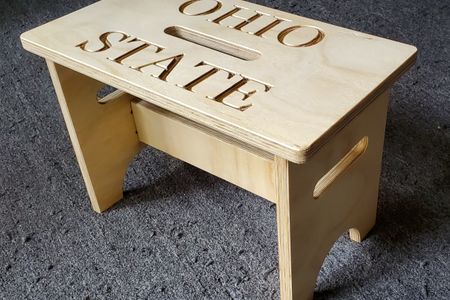

This was designed in Carbide Create for 3/4 in plywood. All it needs is a little wood glue to hold it together.
The text is a separate V-carve tool path and can be disabled for a plain top or changed to text of your liking.
The dog ear pockets are for 1/2 deep slots. You will have to square off the tabs so the pieces fit together flush.
Have you made this project?
If so, upload a photo to show the author some love and let everyone know what your finished version looks like!
You must be signed in to upload a photo.
made by {makerusername}
Comments
edwardrford posted 5 years ago
This is a great first project! Did you overcut those inside corners in the design or after the fact manually?goslin23 posted 5 years ago
Thanks, it took a couple iterations to get everything to look/work correct without a lot of extra steps after machining. I added dog ears for the mortise pockets on the top and legs (they are not showing on the sketch above for some reason) on the tenons of the stretcher and legs I just squared them off with a sharp chisel. (I think I got my wood joint terminology correct). Just some wood glue and clamps is all you need to secure them. You probably want to measure the thickness of the ply for this project and adjust the dimensions to make the fit a little tighter. -=gos=-Greg1821 posted 5 years ago
What font did you use?goslin23 posted 5 years ago
Georgia RegularspikecaRPENTER posted 2 years ago
I have a question about the pockets that are going to be cut out for the top of the stool. It shows that the Ohio State is on the same side with the pockets. Do the pockets cut all the way through on the top of the stool? Or do you have to flip the top of the stool over to engrave the team name?You must be signed in to leave a comment.
