Shapeoko Clamps by edwardrford

Shapeoko Clamps

Created by - edwardrford

Date Created - 2019-03-23

Last Update - 2019-05-03 01:04:30

Status - published

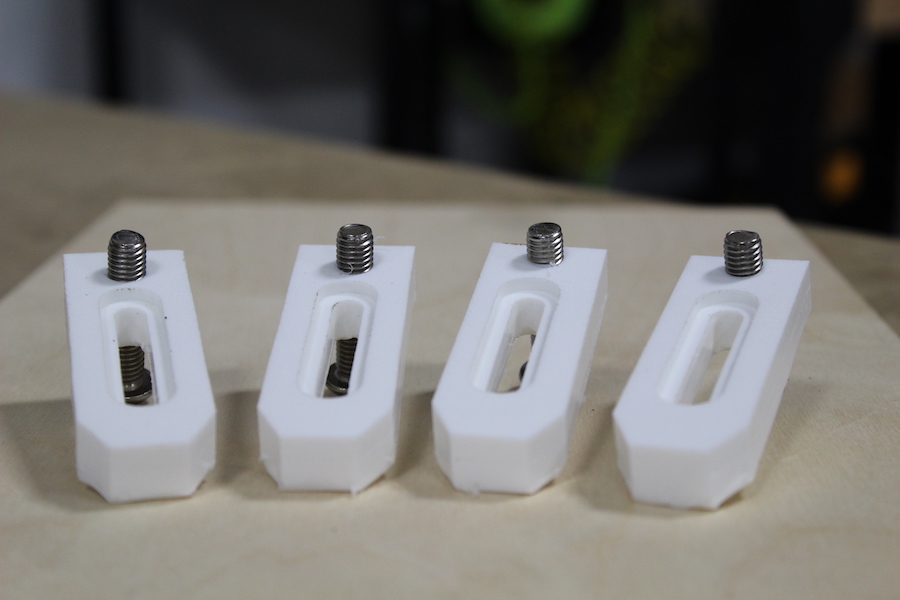

This is a simple yet robust set of hold down clamps you can use on your Shapeoko CNC router.

These clamps are made from HDPE, but could be made from a hardwood as well. See the notes section for more info.

Tags

Download Project

Type	Length	Width	Thickness	Job Zero

Name	Type	Tool	Feedrate	Plungerate	Cut Depth

List of Files
	Filename	File Type	File Size
	design_2	c2d	1.16MB
	design_1	png	2.76MB

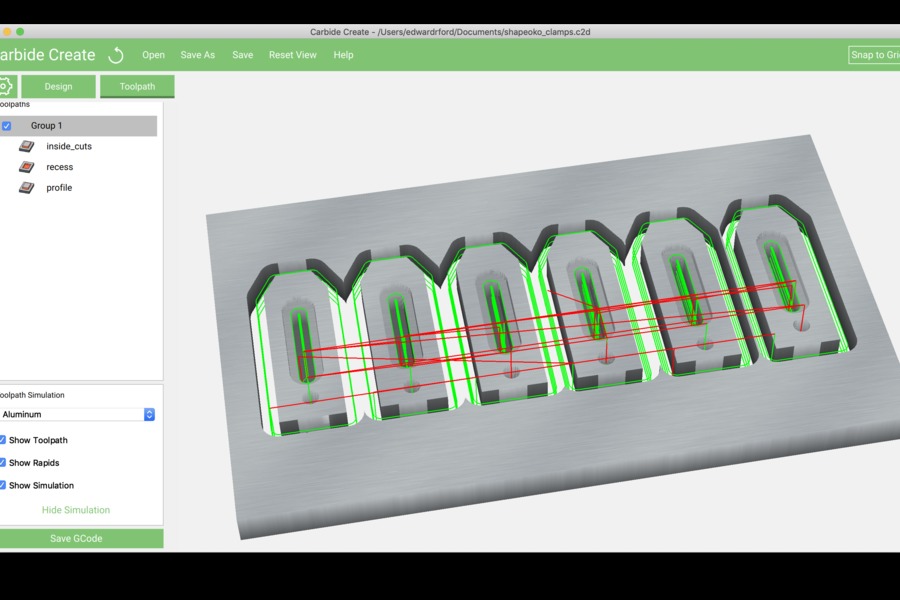

This is a quick and easy project to make on any size Shapeoko CNC machine.

A few notes about the project:

Origin is the center of the material in the X and Y directions
We used a 1/4″ square end mill (#201 from our store)
The job will take about 8 minutes to complete.
We used 1/2″ HDPE (10″ × 6″ stock)

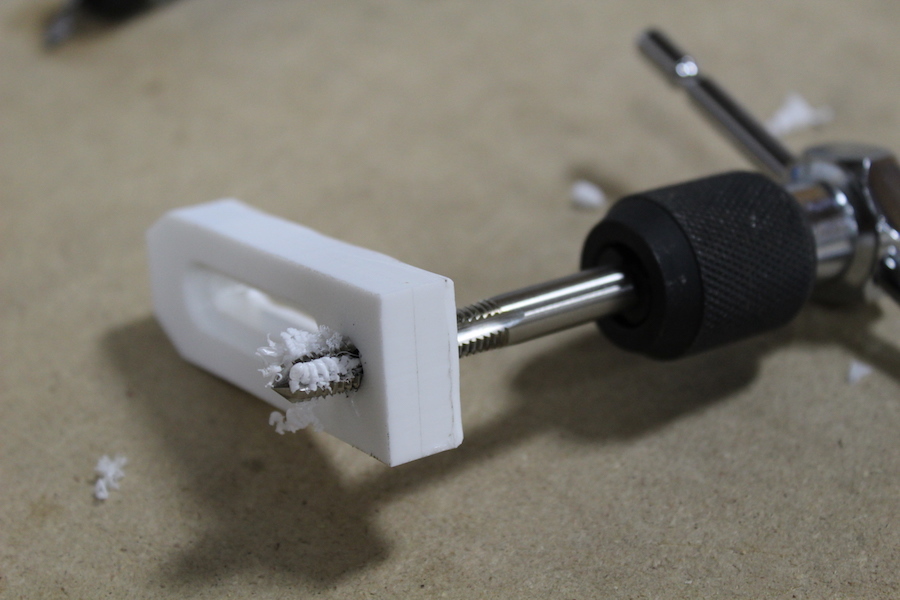

The hole in the back of the clamp was designed to be tapped with an M8 x 1.25mm tap. You can adjust the hole to accommodate different tap sizes OR you could use a threaded insert.

Pro-Tip: When you are clamping your parts down, the back end of the clamp (the end with the jack screw) needs to be higher than your material. If the back is not higher than your material, the downward pressure you create will be pushing more on the back of the clamp than on the material!

Have you made this project?

If so, upload a photo to show the author some love and let everyone know what your finished version looks like!

You must be signed in to upload a photo.

Comments

bjum posted 4 years ago

These are the first clamps I made and I still use only them. I can confirm they work exceptionally well. All you need is the metric hardware you can find on eBay etc.
