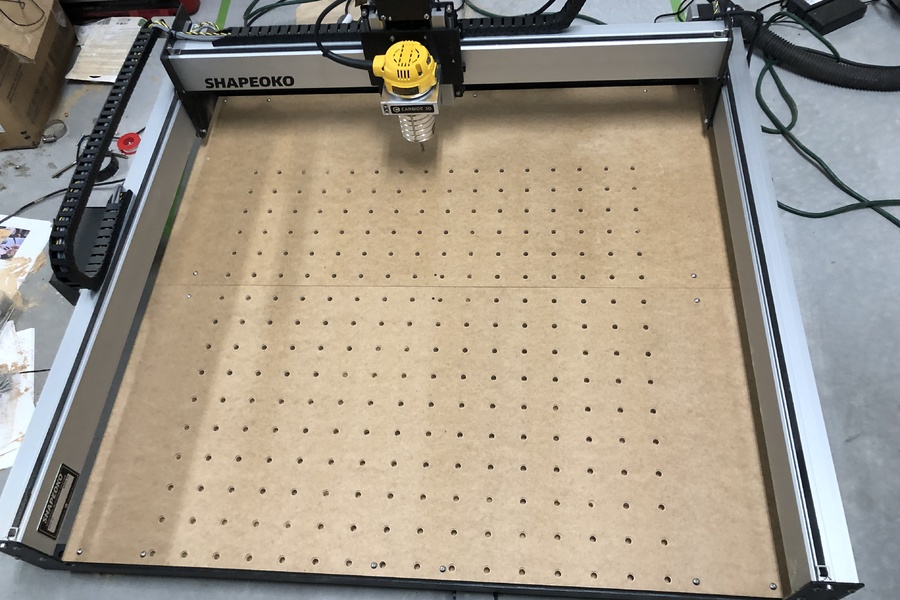

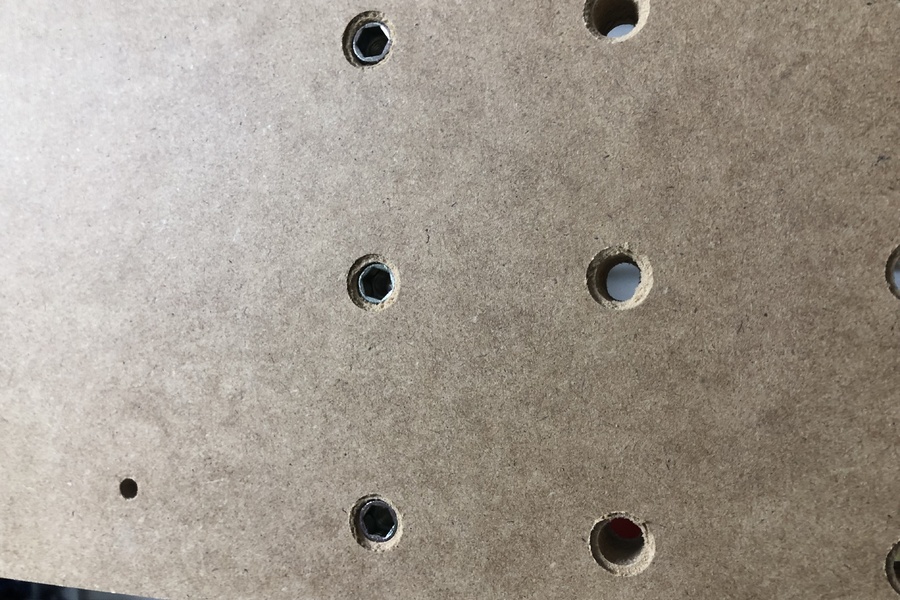

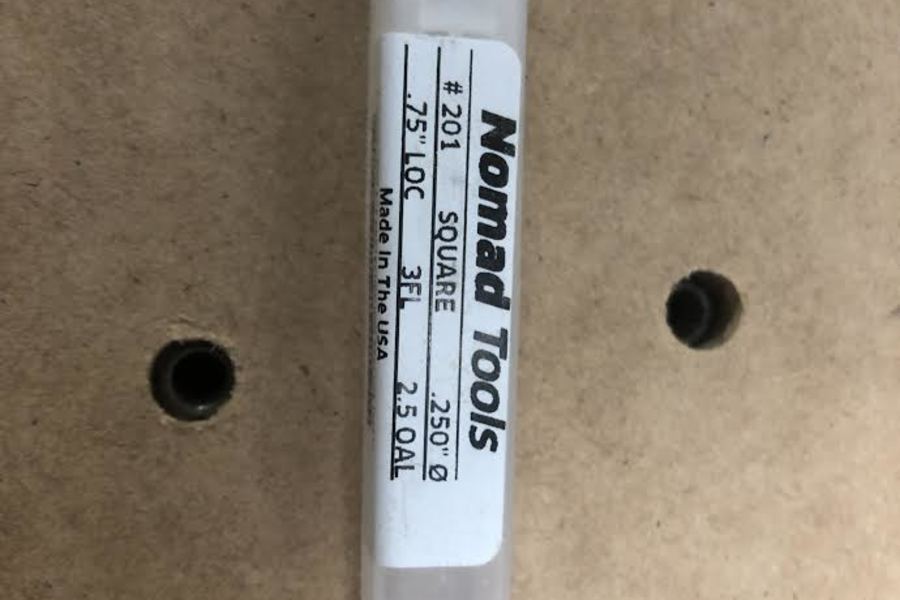

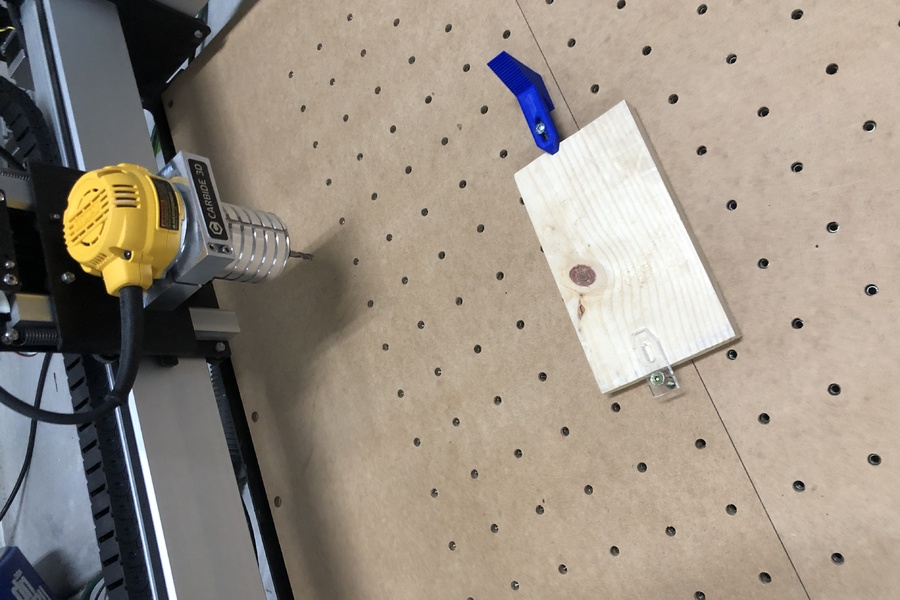

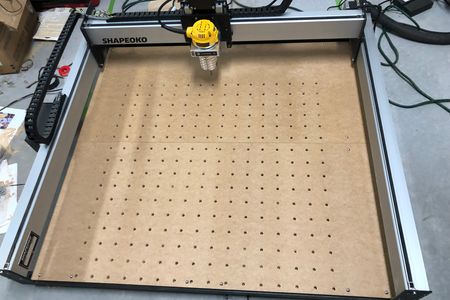

I have seen a few other versions of adding inserts to the Shapeoko 3 and 3 XL not for the XXL> Cutting into the waste board takes some careful measurements. the holes are positioned to avoid the screws. i cut mine about .010 shallow and drilled out the last .010 afterwards before installing the inserts. I also recommend running the program without cutting first to look for any collisions
Have you made this project?
If so, upload a photo to show the author some love and let everyone know what your finished version looks like!
You must be signed in to upload a photo.
made by {makerusername}
Comments
Klm123 posted 5 years ago
New here. Can you explain the reason for Tool path 2? Thanks.glafebe6 posted 5 years ago
One tool path is for the through hole the other is for the counterboreKlm123 posted 5 years ago
Ah... thanks.Dwtdc posted 5 years ago

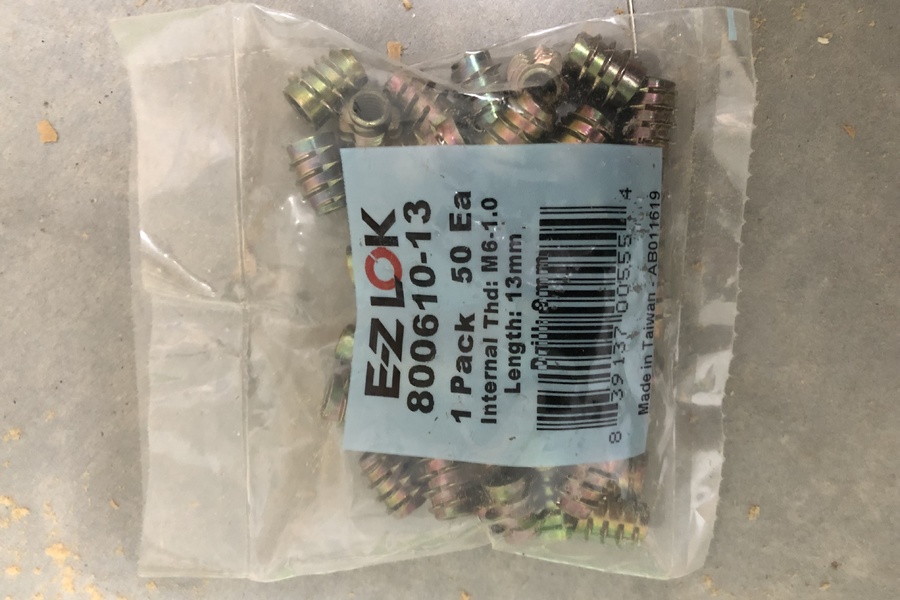

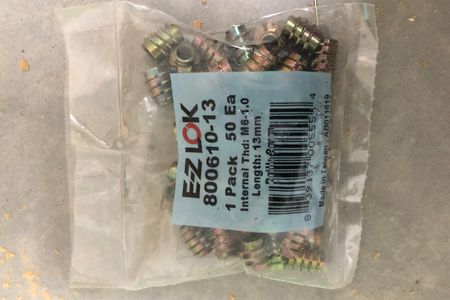

So the screw inserts. What size will screw or bolt will be used for this. I have rails now not the insertsglafebe6 posted 5 years ago
M6 screwsDownSouthDesignsTN posted 4 years ago
