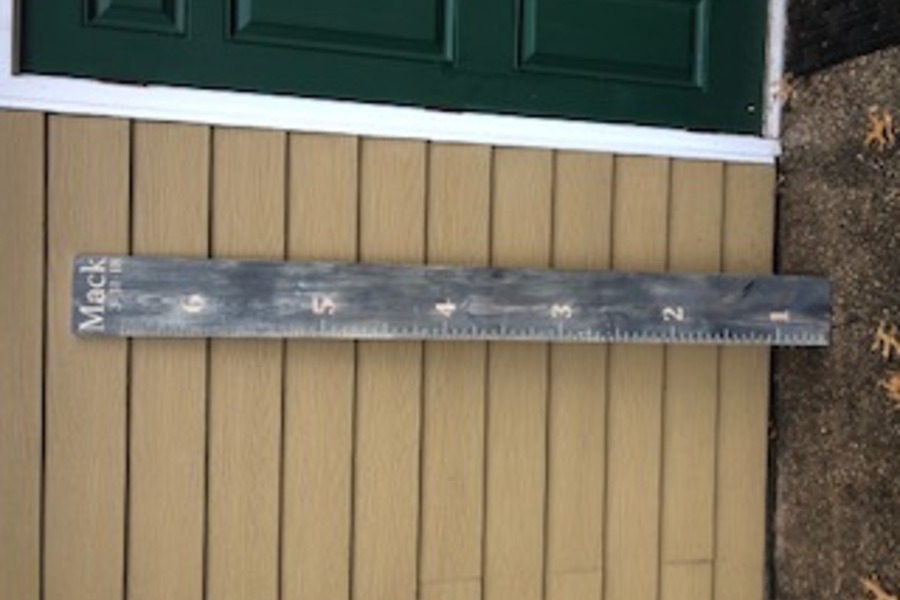

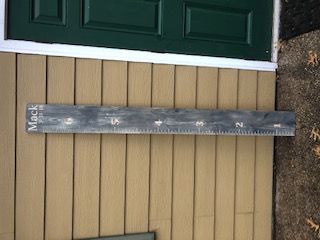

Growth Chart

Project By: 51woodworks


This is a growth chart that I used tiling method to complete. I used bit 102 or 1/8" end mill


Type Length Width Thickness Origin
Name Type Tool Feedrate Plungerate Cut Depth

The author of this project has not posted a video.

Leave a comment and let them know you would like to see one!

I didn't want to pull my cnc all the way out so the first job I homed the cnc to the top left corner for the 1' and 2' marks. I flipped the board over and homed it at the bottom left corner of the machine at 2.5' mark and started the Second file for the 3' and 4' marks. I moved the board down and home it at 4.5' mark and started the third file for 5' and 6' marks.


I have been thinking about doing this. I was just trying to figure out how to do it on my machine. You saved me a bunch of headache and time!!! Thanks!! This is awesome!

Thanks a bunch! Going to give it a try soon
