Rubberband Gun (4 shot semi-auto) by RDPowell2

Rubberband Gun (4 shot semi-auto)

Date Created - 2018-12-18

Last Update - 2019-12-17 11:50:32

Status - published

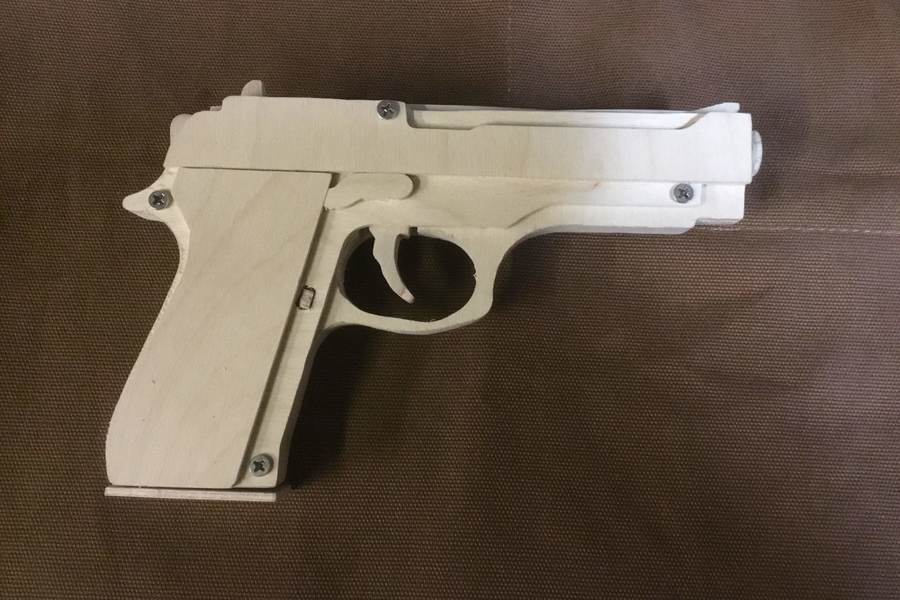

Created from a scrollsaw project. In VCarve you will cut 3 12x12 sheets of 1/8 baltic birch plywood to produce all the parts. Use the assembly instructions from the PDF to complete the assembly. It is quiet involved making this gun. I have ijncluded the VCarve file as well as gcode files for those that do not have Vectric products. There is not enough room on the sheets for clamps, I used the painters tape and superglue method and it works quite well.

Tags

rubberbandgun

Download Project

Type	Length	Width	Thickness	Job Zero

Name	Type	Tool	Feedrate	Plungerate	Cut Depth

List of Files
Filename	File Type	File Size
design_1	crv	1.45MB
design_2	crv	1.44MB
design_3	crv	1.44MB

I have included the original PDF for the scrollsaw version of the rubberband gun. You will need to assemble the gun using the instructions in this PDF.
The VCarve file consists of all the layout of 3 sheets of parts corresponding to page numbers in the PDF. The toolpaths are for cutting the parts using a 1/8" Endmill and a Vcarve path for each page to label the part numbers on the sheet.
I have included gcode for cutting each of the 3 12x12 1/8" baltic birch plywood pieces. I have not included gcode to do the part numbers, these only cut the parts that can be compared with the corresponding part number in the PDF. If you do not have VCarve or Aspire you can simply run these gcode files to cut the parts.
I secured my plywood to the spoil board with the painters tape and super glue method.
I used 1/8" brass rod, purchased at Lowes, cut to the appropriate length where it calls for the dowel rods. The holes that are cut in the parts fit exactly when using the rod.
I have received reports that the PDF file is not there. I have attempted to load it several times but have not been successful. Here is a link to the original scrollsaw PDF file: https://www.rbguns.com/english/m-9/download-m9/
