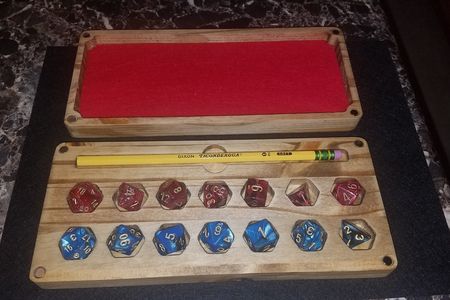

D&D Dice Box

Project By: Youltar


dungeons dragons dice box

Materials needed
1/4" Endmill
Piece of wood for top and bottom of box
magnets 1/4" in diameter
(optional) felt for tray

Files

Type Length Width Thickness Origin
Name Type Tool Feedrate Plungerate Cut Depth

The author of this project has not posted a video.

Leave a comment and let them know you would like to see one!

I've put my svg here as well.

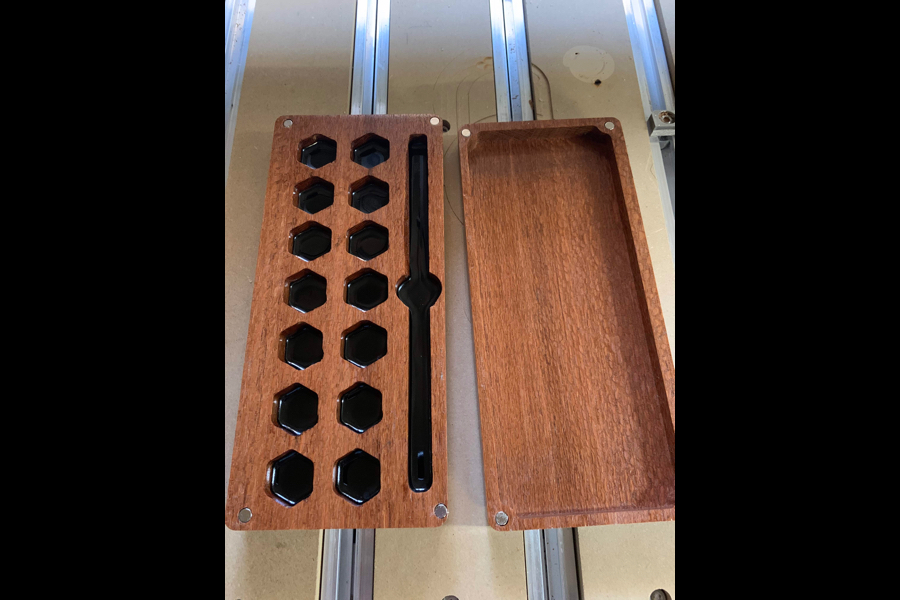

pocket cuts
Lid at depth of .45 inch.
Magnet holes are .9 inch deep because the magnets I have are .1 inch thick. You
may have to adjust this if you have different magnets ( or not at all if you want to
install a hinge and hasp.)

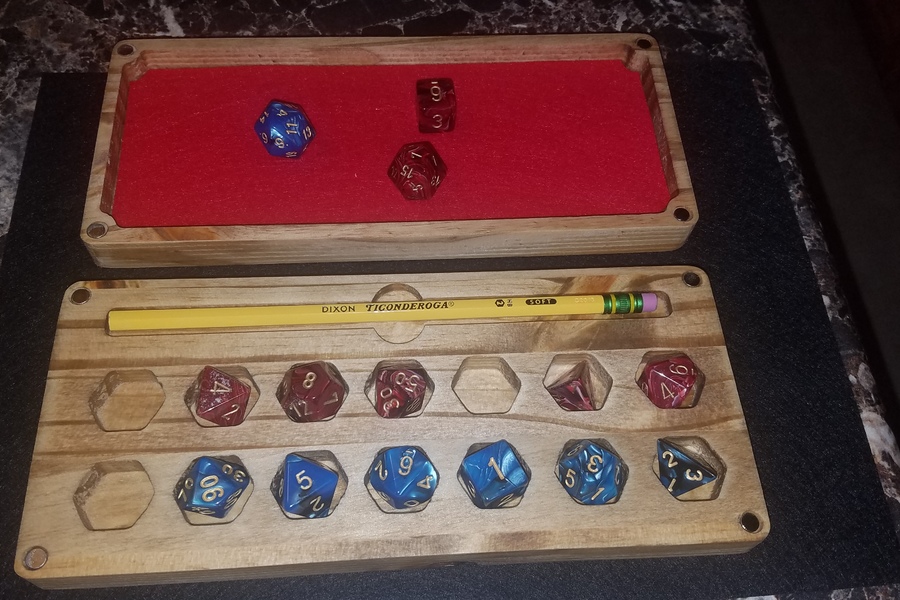

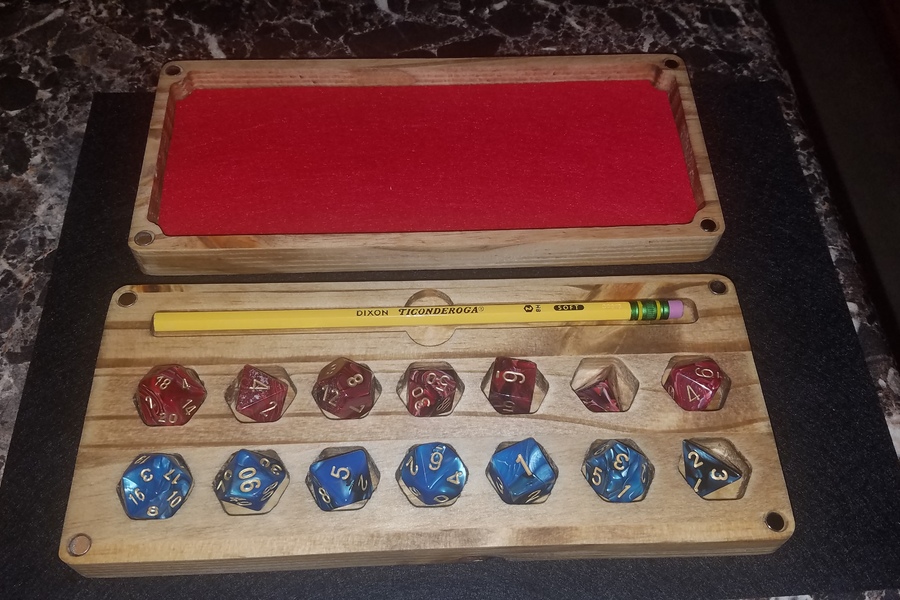

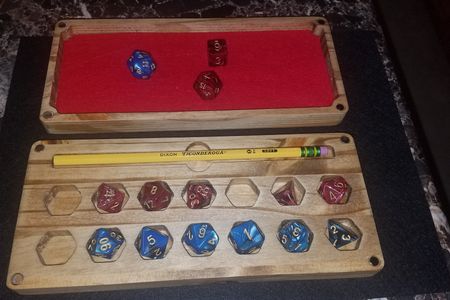

Dice pockets, I cut those .4 inch deep. This leaves just enough dice above the
wood so they can be handled.
Pencil pocket is a depth of .2 and should accommodate a mechanical pencil if
desired.
Then profile cut to depth both pieces.

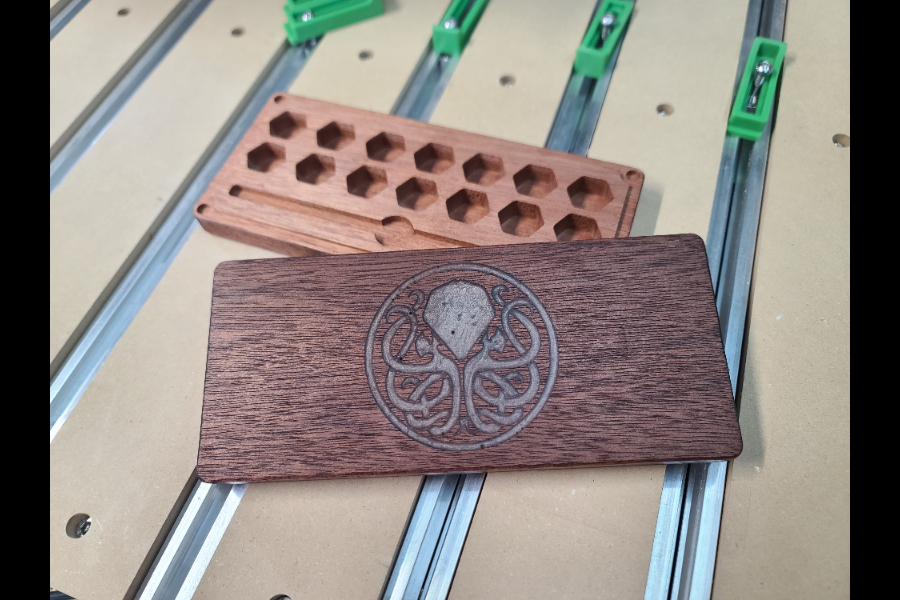

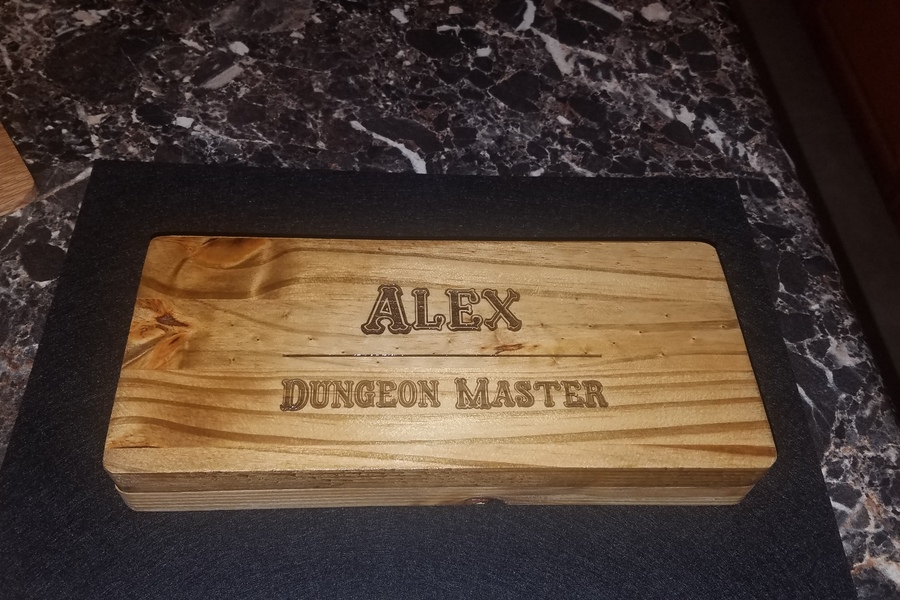

I used a laser engraver to engrave the name on lid and cut piece of felt.
