Mobius Triangle

Project By: kgcassady


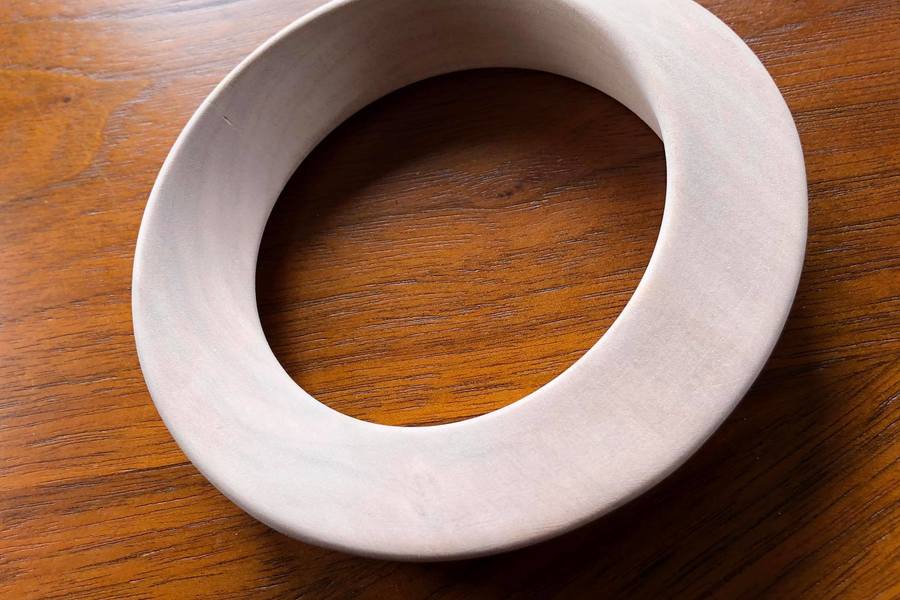

Mobius triangle and support frame. Totally non-practical carving project. It was also an interesting adventure in fixturing/workholding.

Files

Type Length Width Thickness Origin
Name Type Tool Feedrate Plungerate Cut Depth

The author of this project has not posted a video.

Leave a comment and let them know you would like to see one!

This part is symmetric about the y-axis. I carved 1 side (coarse and fine), then flipped and realigned the part to finish. Trim and sand over the 6 support tabs to get out the finished part. The second CAM op was originally configured as a contour operation, but is probably better suited to a different method (like 3D parallel).
