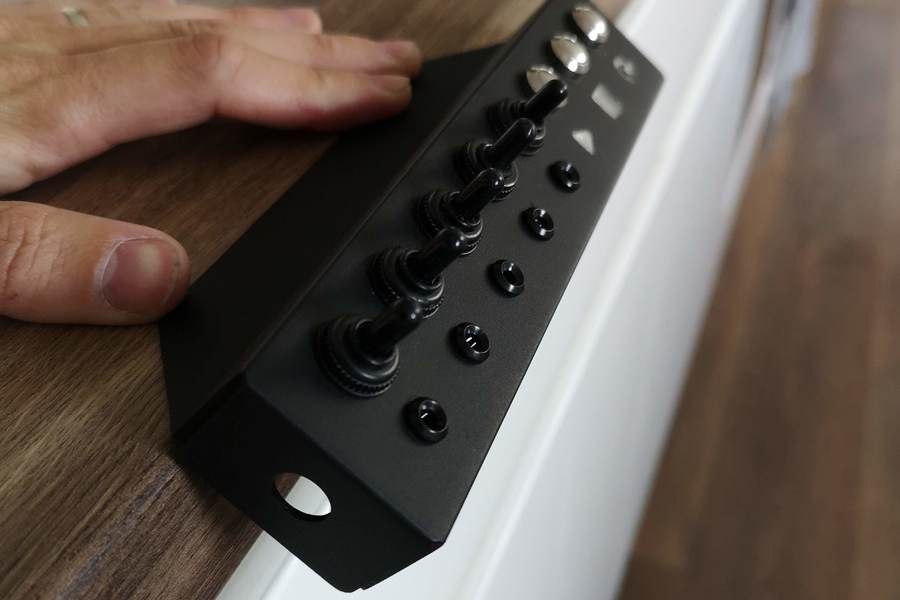

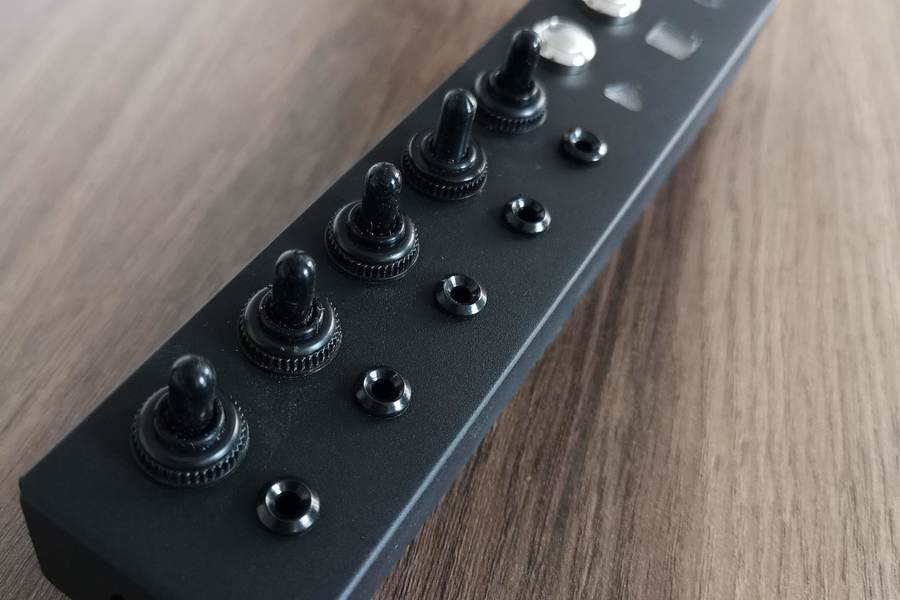

It has 5 switches, 3 buttons and 8 LED’s.
Switch 1: Control Board Power
Switch 2: Motor power
Switch 3: Spindle/Pump
Switch 4: Dust extraction
Switch 5: 15w lazer
Button 1: Play or go
Button 2: Pause/stop
Button 3: Reset board
