Delta Zero Clearance Throat Plate v2.0

Project By: CommonwealthCreations


delta tablesaw table saw throatplate tools

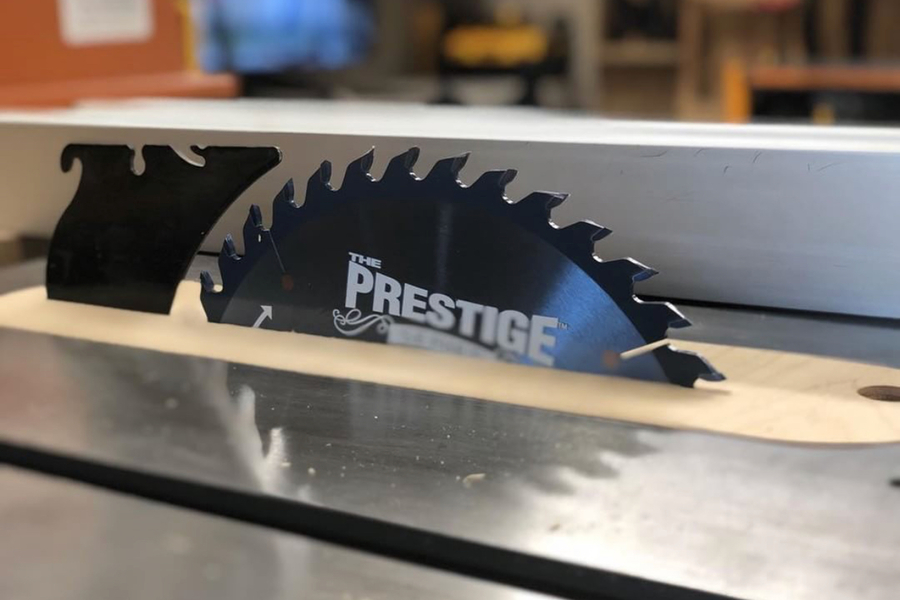

Use this file to create a zero clearance throat plate for your Delta table saw 36-725 (Includes area for riving knife).

Design Info

Machine
    Material

    Cutters

    Notes from the author about this project.


    Create a zero clearance throat plate for your Delta Table Saw, model 36-725. Two bits are used, a 201 (1/4" flat endmill) and a 102 (1/8" flat endmill). You will be using a piece of 3/4" plywood. The piece that I used measured .73" with calipers. You will want to make sure that your material measures .73" or you will need to adjust cutting depths for all tool paths.

    There are seven tool paths. I'll briefly explain them.

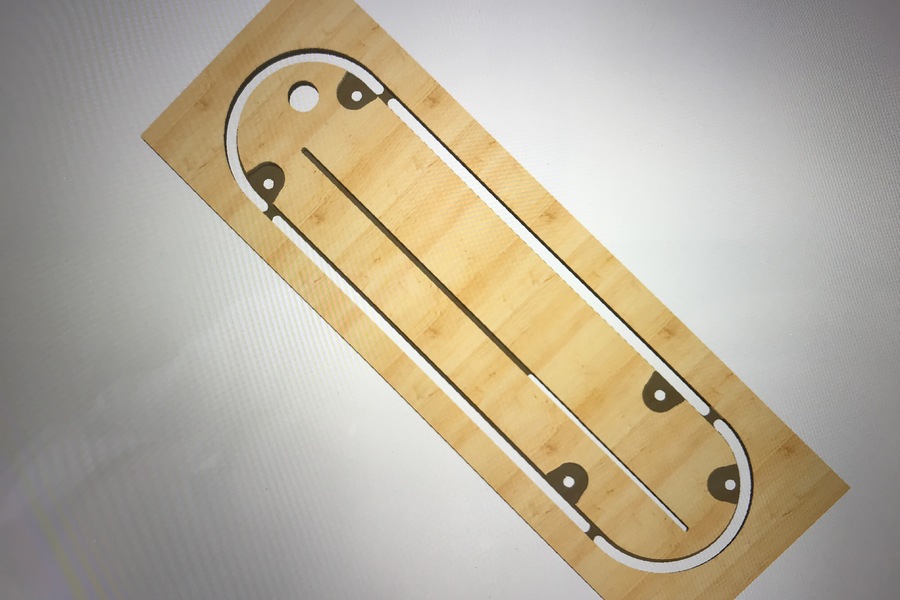

    1. The first tool path makes room for the riving knife.

    2. The second tool path makes room for the blade. It intentionally doesn't cut all the way through. (Note: Using your table saw fence to hold down the throat plate, you will raise your saw blade through to finish.)

    3. The third tool path makes a hole for each leveling screw so that they are adjustable when the plate is in place.

    4. The fourth tool path clears the area around where the leveling screws are located. There are five of these locations.

    5. The fifth tool path makes a hole to allow for you finger to pick up the throat plate once it has been placed in the table saw.

    6. The sixth tool path makes a lip so that the throat plate will rest on the table saw.

    7. The seventh, and last, tool path is the contour cut. I added four tabs so that the piece will stay in place when the cutting is finished.

    Note: If you wish to not have the space for the riving knife you can simply disable that tool path. You can also download the original zero clearance throat plate from my project page.
